DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing

Prev: ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter Next: No more

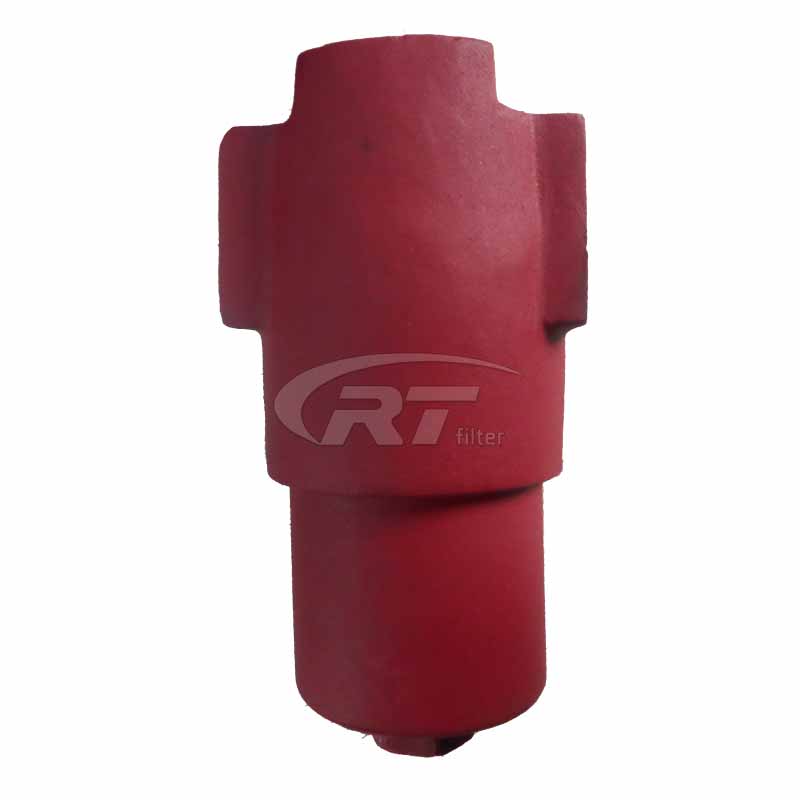

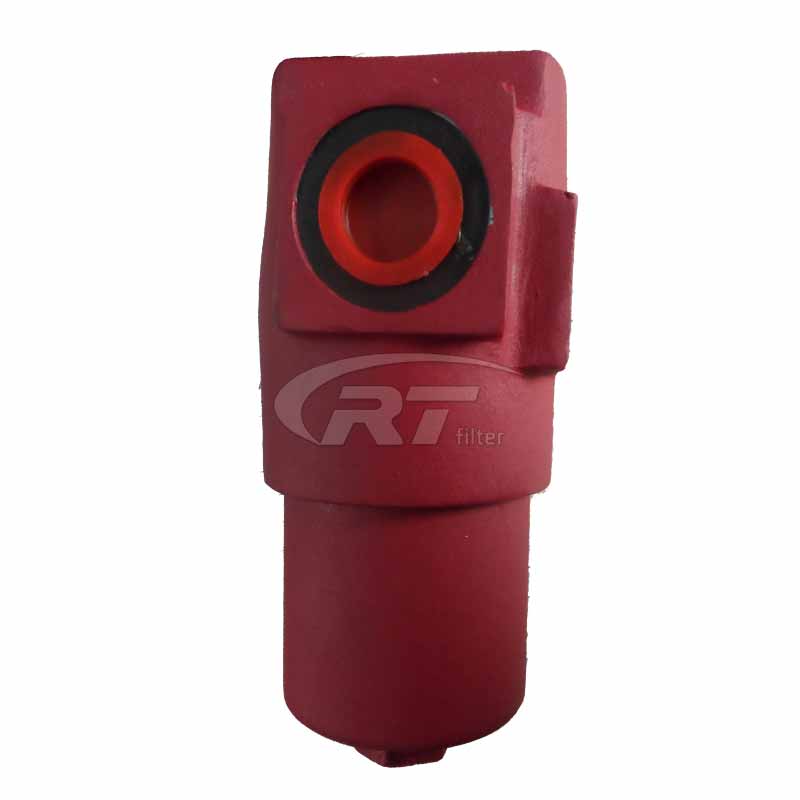

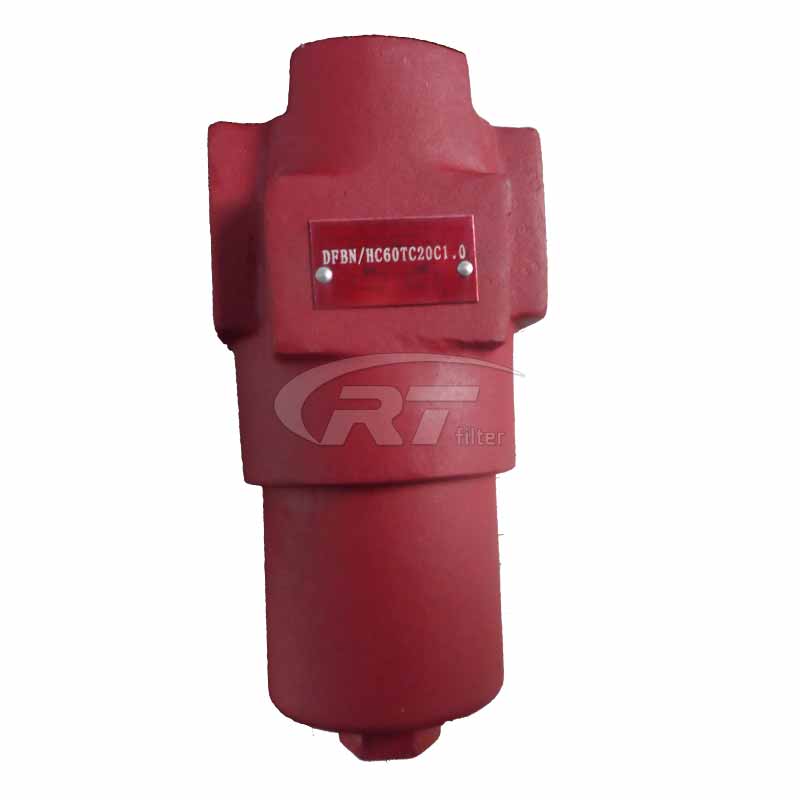

DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing

Brand:PartnerFilter

Model:DFBNHC60TC20C1.0

Max. Pressure:420MPa

Inside filter element:0660D020BH4HC

Seal:Viton

Flow rate:60L/min

Micron:20µm

Series:DFBN/HC60G10B1.X DFBN/HC990QE10C2.X more

DFBNHC60TC20C1.0 is used to filter solid particles and colloids in the working medium to effectively control the pollution of the working medium. The filter housing is installed in the pressure line of the hydraulic system and the differential pressure transmitter can be assembled as required. At the same time, the filter element of the hydraulic oil filter is made of glass fiber and stainless steel metal mesh. The upper and lower shell is made of steel bar with beautiful appearance and reliable performance.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

PartnerFilter makes the HYDAC replacement hydraulic oil filter housing DFBNHC60TC20C1.0,which is installed in the pressure pipeline of the hydraulic system to filter out solid particles and colloids in the working medium and effectively control the pollution of the working medium.A differential pressure transmitter can be assembled as required.At the same time, the filter elements of the hydraulic oil filter are made of glass fiber and stainless steel metal mesh. The upper and lower shells are made of steel rods,with beautiful appearance and reliable performance.


Features:

• Non-welded housing design reduces stress concentrations and prevents fatigue failure.

• Choice of NPT,SAE straight thread O-ring boss, and SAE 4-boltflange porting (sizes 60 - 1320) to allow easy installation without costly adapters.

• O-ring seals are used to provide positive,reliable sealing.Choice of O-ring materials (Nitrile,Fluoroelastomer,EPDM) provides compatibility with petroleum oils,synthetic fluids, water-glycols,oil/water emulsions,and high water base fluids.

• Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement,and contaminated fluid cannot be washed downstream when element is serviced.

• Differential Pressure lndicators.HYDAC indicators have no external dynamic seal.This results in a high system reliability due to magnetic actuation,thus eliminating a potential leak point.

• A poppet-type bypass valve (optional) provides positive sealing during normal operation and fast opening during cold starts and flow surges.

• For special finishes and coatings - consult HYDAC for minimum quantities,availability and pricing.

• Fatigue pressure ratings equals maximum allowable working pressure rating.

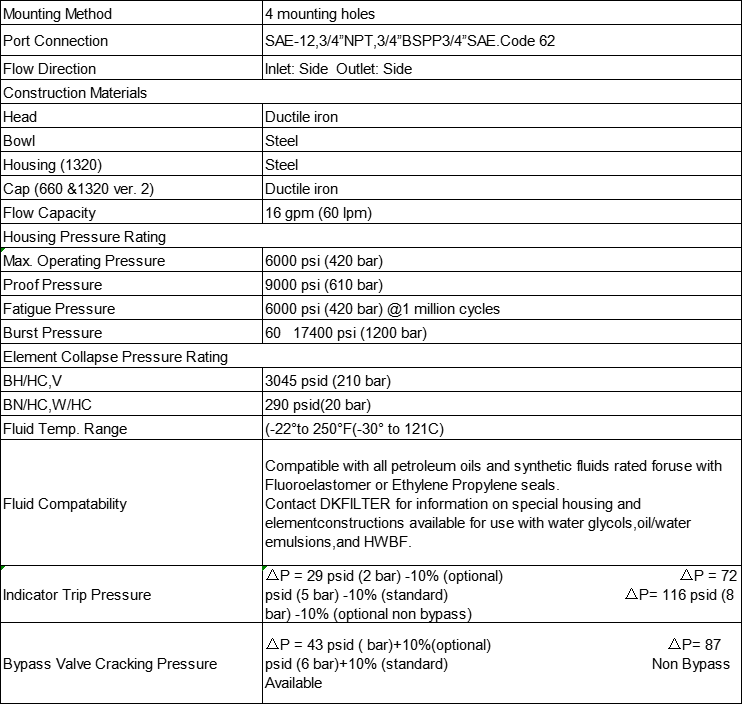

Technical details:

DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing

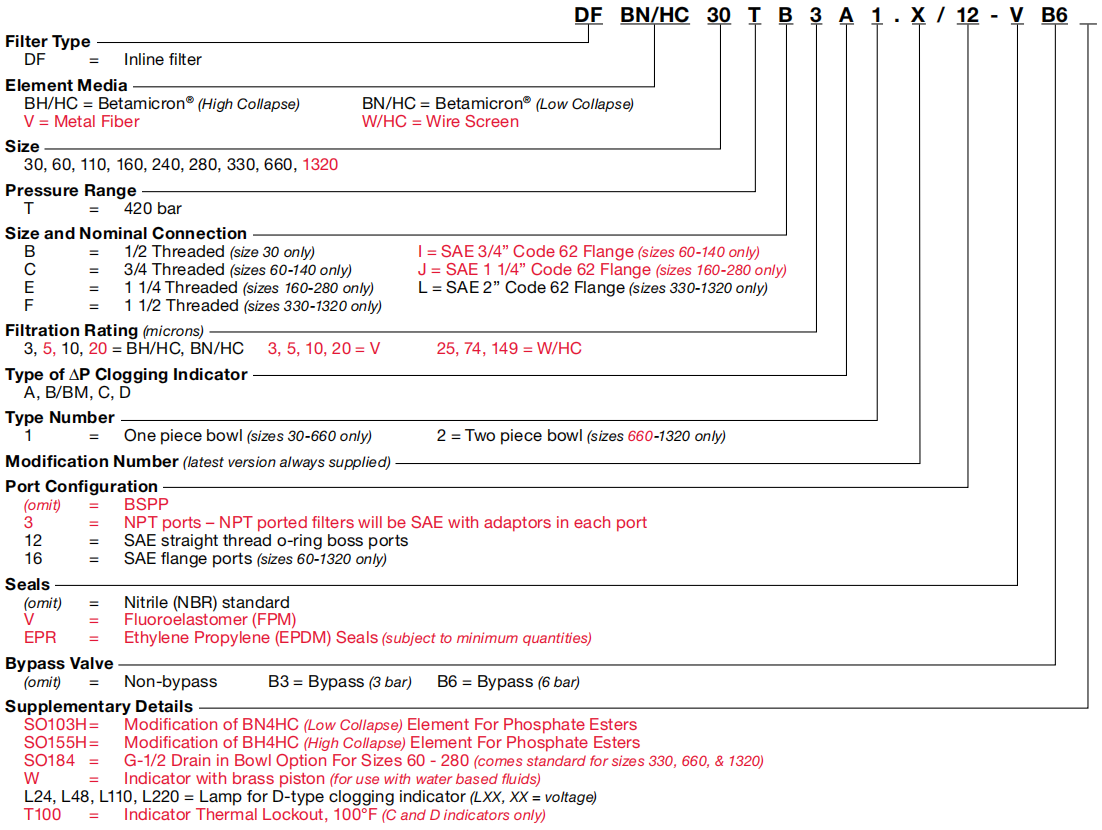

Model Code:

 DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing

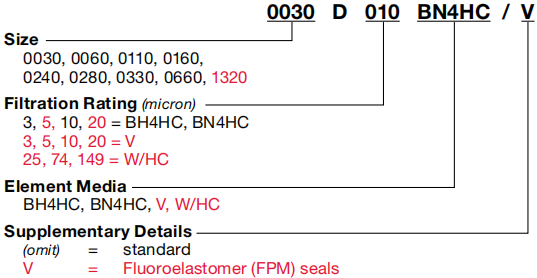

Replacement Filter Element Model Code:

 DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing

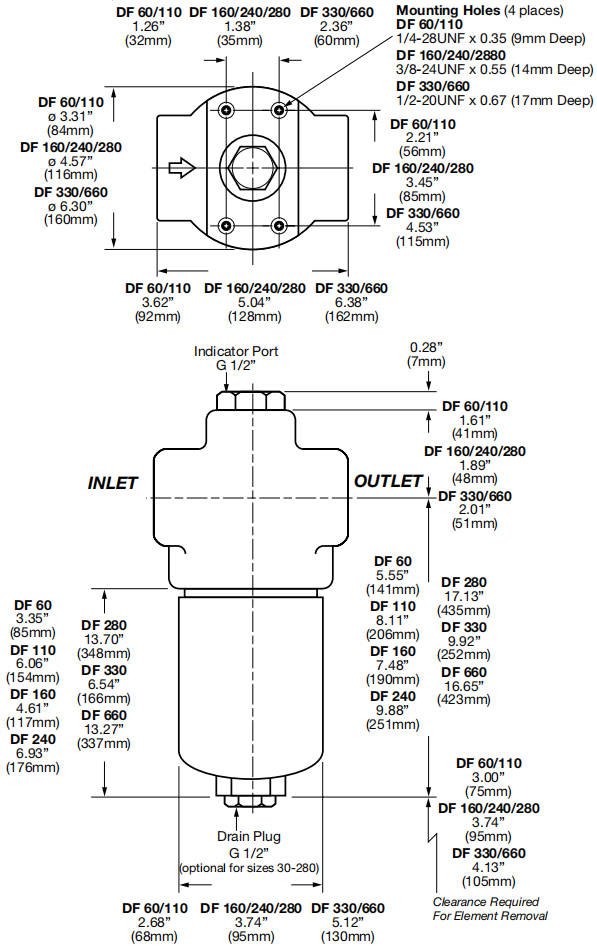

Dimensions:

 DFBNHC60TC20C1.0 Hydac High Pressure Filter Housing



Test standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters
DFBN/HC60G10B1.X DFBN/HC60G10C1.X DFBN/HC110G10B1.X DFBN/HC110G10C1.X DFBN/HC140G10B1.X DFBN/HC140G10C1.X
DFBN/HC160G10B1.X DFBN/HC160G10C1.X DFBN/HC240G10B1.X DFBN/HC240G10C1.X DFBN/HC330G10B1.X DFBN/HC330G10C1.X
DFBN/HC500F10B1.X DFBN/HC500F10C1.X DFBN/HC660G10B1.X DFBN/HC660G10C1.X DFBN/HC990F10B2.X DFBN/HC990F10C2.X
DFBN/HC60P10B1.X DFBN/HC60P10C1.X DFBN/HC110P10B1.X DFBN/HC110P10C1.X DFBN/HC140P10B1.X DFBN/HC140P10C1.X
DFBN/HC160P10B1.X DFBN/HC160P10C1.X DFBN/HC240P10B1.X DFBN/HC240P10C1.X DFBN/HC330P10B1.X DFBN/HC330P10C1.X
DFBN/HC500P10B1.X DFBN/HC500P10C1.X DFBN/HC660P10B1.X DFBN/HC660P10C1.X DFBN/HC60QE10B1.X DFBN/HC60QE10C1.X
DFBN/HC110QE10B1.X DFBN/HC110QE10C1.X DFBN/HC140QE10B1.X DFBN/HC140QE10C1.X DFBN/HC160QE10B1.X DFBN/HC160QE10C1.X
DFBN/HC240QE10B1.X DFBN/HC240QE10C1.X DFBN/HC280QE10B1.X DFBN/HC280QE10C1.X DFBN/HC330QE10B1.X DFBN/HC330QE10C1.X
DFBN/HC500QE10C1.X DFBN/HC660QE10B1.X DFBN/HC660QE10C1.X DFBN/HC990QE10B2.X DFBN/HC990QE10C2.X
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
