HH 9680 C24UB Filter Assemblies Replacement

Prev: UR699CD4040ZA+ Return Line Filter Next: TFA-160x80LC Leemin Suction Filter Housing Replcement

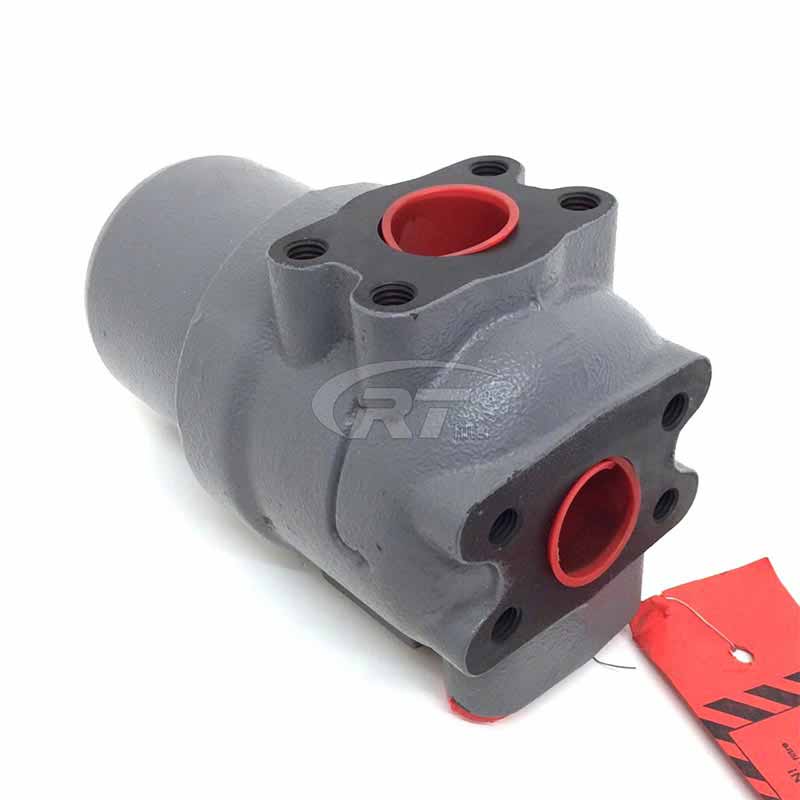

HH 9680 C24UB Filter Assemblies Replacement

Brand:PartnerFilter

Model:HH 9680 C24UB

Seal:Fluorocarbon

Flow rate:600 L/min

Micron:10µm

Press:420 Bar

Inside filter element:HC9680 HC9681 Series

Series:HH9680C24KPUBR324DCHZ9681C16 RW1 more

PartnerFilter is specialized in the hydraulic oil filter housingand we can make the 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in. 1 1 ⁄4 in. & 1 1 ⁄2 in.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

 PartnerFilter is specialized in the hydraulic oil filter housing,and we can make the 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in., 1 1 ⁄4 in. & 1 1 ⁄2 in.


Performance:

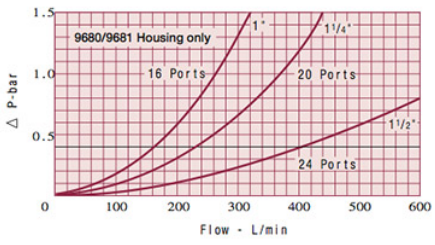

Housing pressure drop:

Using fluid with s.g. 0.9 housing pressure drop is directly proportional with to specific gravity.

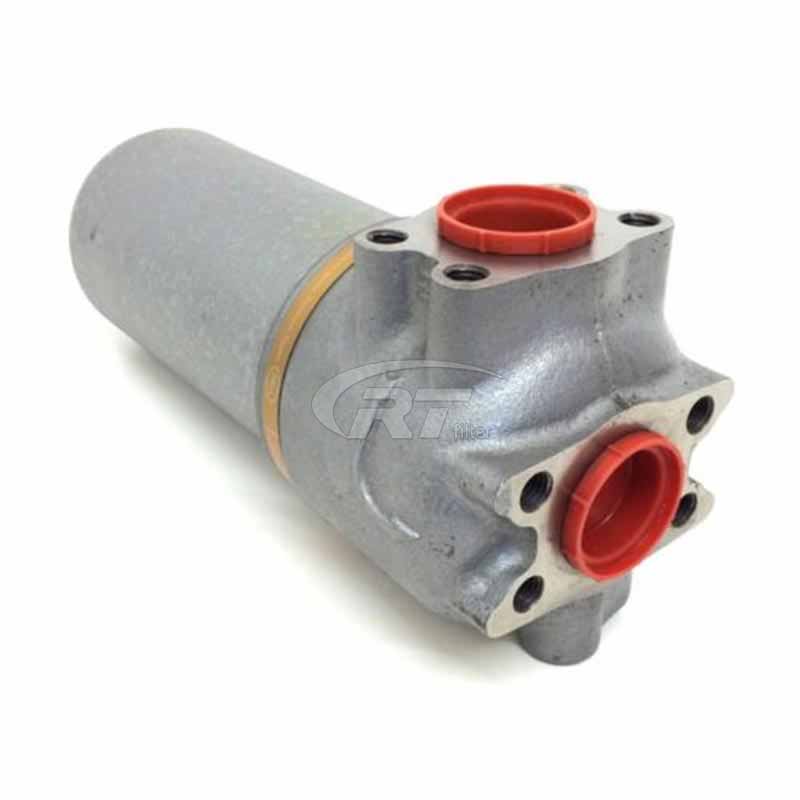

 HH 9680 C24UB  Filter Assemblies Replacement

Features:

The replacement of 9680/1 series filter assemblies features are as below:

Flows to 600 L/min (160 US gpm)

Pressures to 420 bard (6100 psid)

Port size 1 in., 1 1 ⁄4 in. & 1 1 ⁄2 in.

Ultipor® III filter medium pack

Out-to-in filter element flow path


Specifications:

Maximum Acceptable Working Pressure450 Bar (6500 psi)
Fatigue Pressure RatingNitrile seals -45°F to 225°F (-43°C to 107°C),Fluorocarbon seals -20°F to 250°F (-29°C to 120°C),140°F (60°C) maximum in HWCF or water-glycol fluids
Typical Burst Pressure<1260 Bar (187,270 psi)
Temperature RangeNitrile seals -45°F to 225°F (-43°C to 107°C)Fluorocarbon seals -20°F to 250°F (-29°C to 120°C)140°F (60°C) maximum in HWCF or water-glycol fluids
Seales materialNitrile
Element Collapse Rating20 bar diff. for housings with bypass
Connection1 1⁄2 in.BSP thread



Related Specification Filters
HH9680C24KPUBR324DC HH9680S20KNUBR24DC HH9680S20KPUBR24DC HH9680S20KSUBR24DC HH9680S20KSRBR24DC HH9681C24DPSWT3
HH9681K2ODPSWM HH9681K20DSUWR324DC HH9681K20DTUWR24DC HZ9681C16 RW1 HZ9681C20 RW1 HZ9681G16 RW1
HZ9681G20 RW1 HZ9681C20 SW1 HZ9681G20 SW1 HZ9681C20 TW1 HZ9681C20 UW1 HZ9681C24 UW1
HZ9681G20 UW1 HZ9681K20 SW1 HZ9681K20 TW1 HZ9681K20 UW1 HZ9681S20 SW1
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
