SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

Prev: SP-06X25 Series Leemin Spin-on Line Filter Next: ZUI-H250X20DFP High Pressure Line Hydraulic Oil Filter

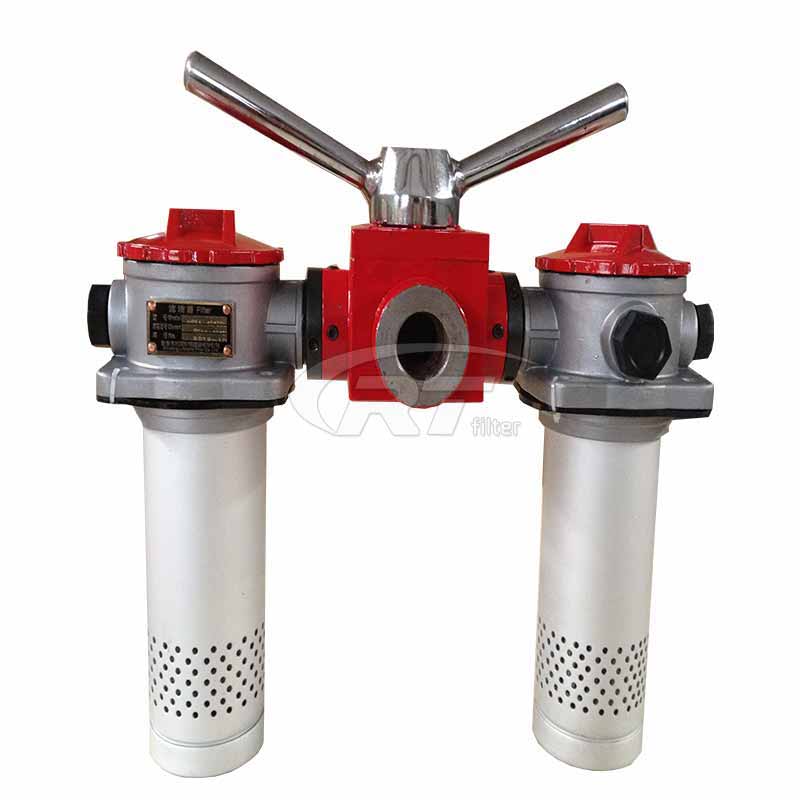

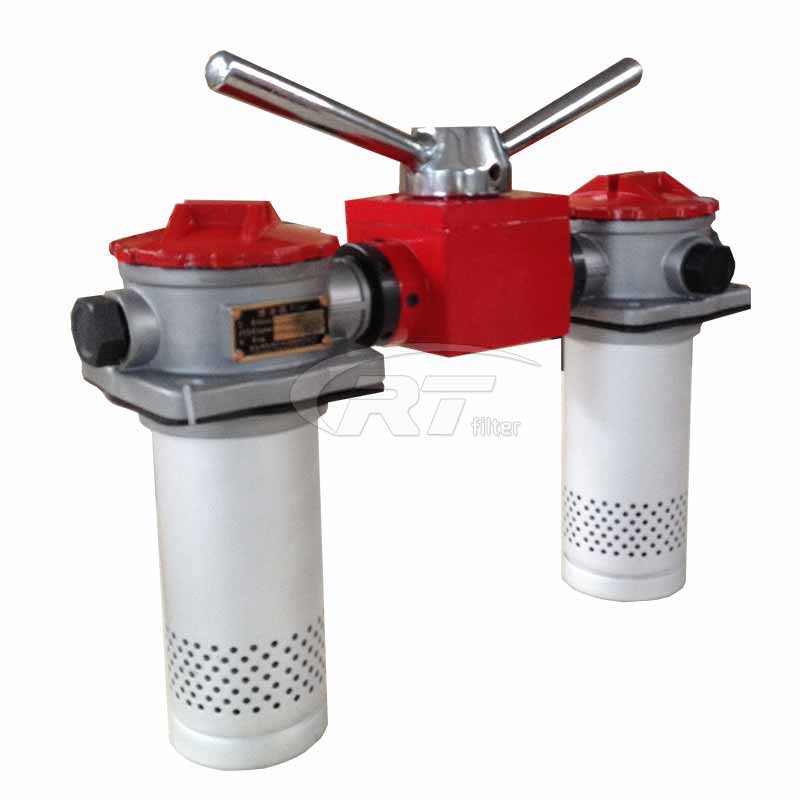

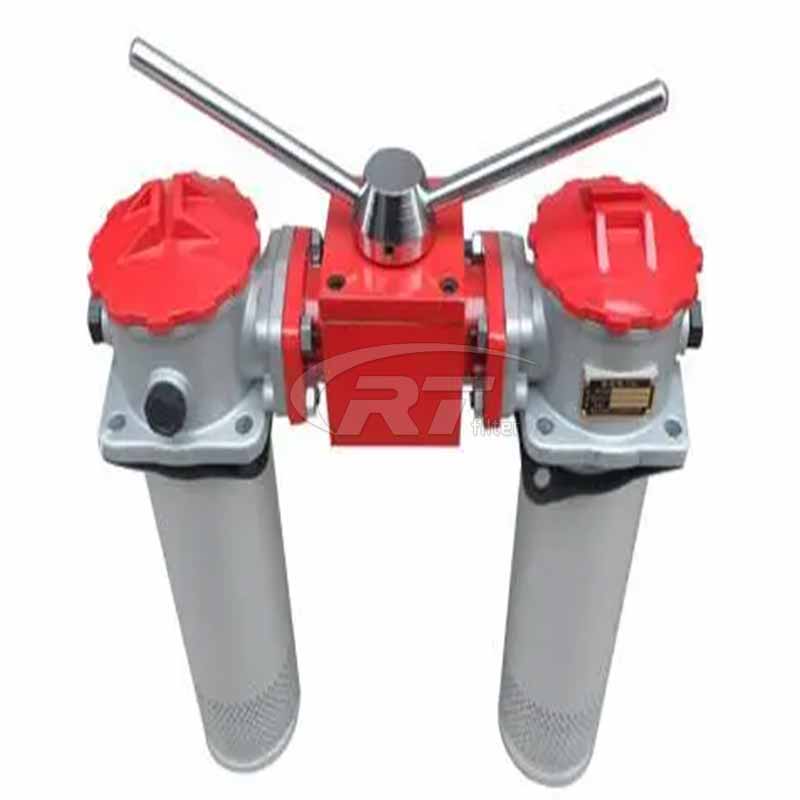

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

Brand:PartnerFilter

Model:SRFA-400×20LY

Flow rate:400L/min

Micron:20µm

Seal:Viton

Pressure:1.6MPa

Inside filter element:SFAX-400×20

Series:SRFA-25×※LY/CSRFA-1000×※LY/C more

PartnerFilter designs the hydraulic oil filter housing SRFA-400×20LY with two single bowl filtersa 2-position 3-way directional valveby-pass valveindicator and diffuser.It is simple in structure and easy to use.It is mounted on tank top;there is by-pass valve and contamination indicator in itfor protecting the hydraulic system safety.The feature of this filter allows continuous operation even during replacing elementwhich is clogged by contaminant.When the filter element is clogged by contaminant that results in the pressure reaching to 0.35MPathe indicator will give signals.At this timeturn the directional valve in order to make the other filter work then change the element.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

PartnerFilter designs the hydraulic oil filter housing SRFA-400×20LY with two single bowl filters,a 2-position 3-way directional valve,by-pass valve,indicator and diffuser.It is simple in structure and easy to use.It is mounted on tank top;there is by-pass valve and contamination indicator in it,for protecting the hydraulic system safety.

The feature of this filter allows continuous operation even during replacing element,which is clogged by contaminant.When the filter element is clogged by contaminant that results in the pressure reaching to 0.35MPathe indicator will give signals.At this time,turn the directional valve in order to make the other filter work then change the element.

The diffuser is installed under the filter bowl, which makes the medium flow stably into the tank.

The filter element is with high filtration accuracy,low initial pressure loss and high dirt holding capacity.Filter ratio β 3,5,10,20>200,filter efficiency n≥99.5%,and fit the ISO standard.

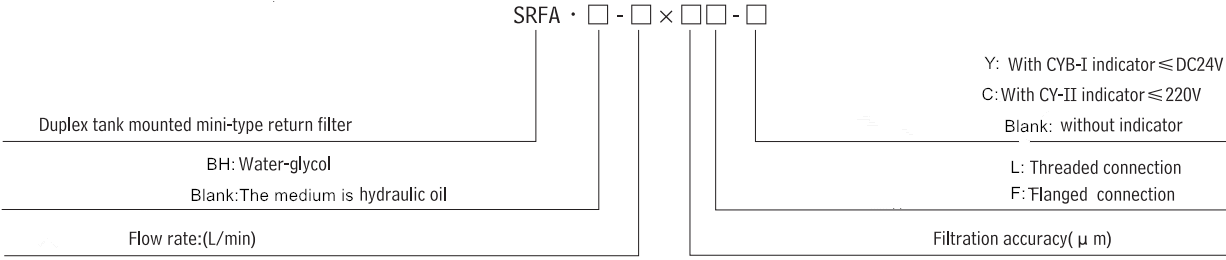

Model Code:

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

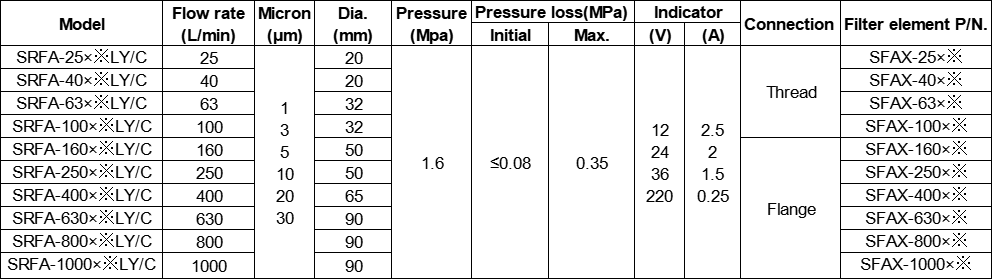

 Technical Data:

 SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

Note:

The ※ represents filiration micron.If the fiter fiuid is water-glycol, usage pressure L.6MPa,fower rate 63L/mn filraton acceracy 10 μm and the fiter equipped with CIB- no inicator.The model of the filter is SRFA·BH-63 × l0L-Y, the model of element is SFAX·BH-63×10

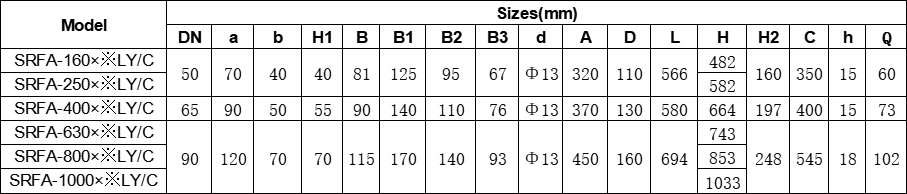

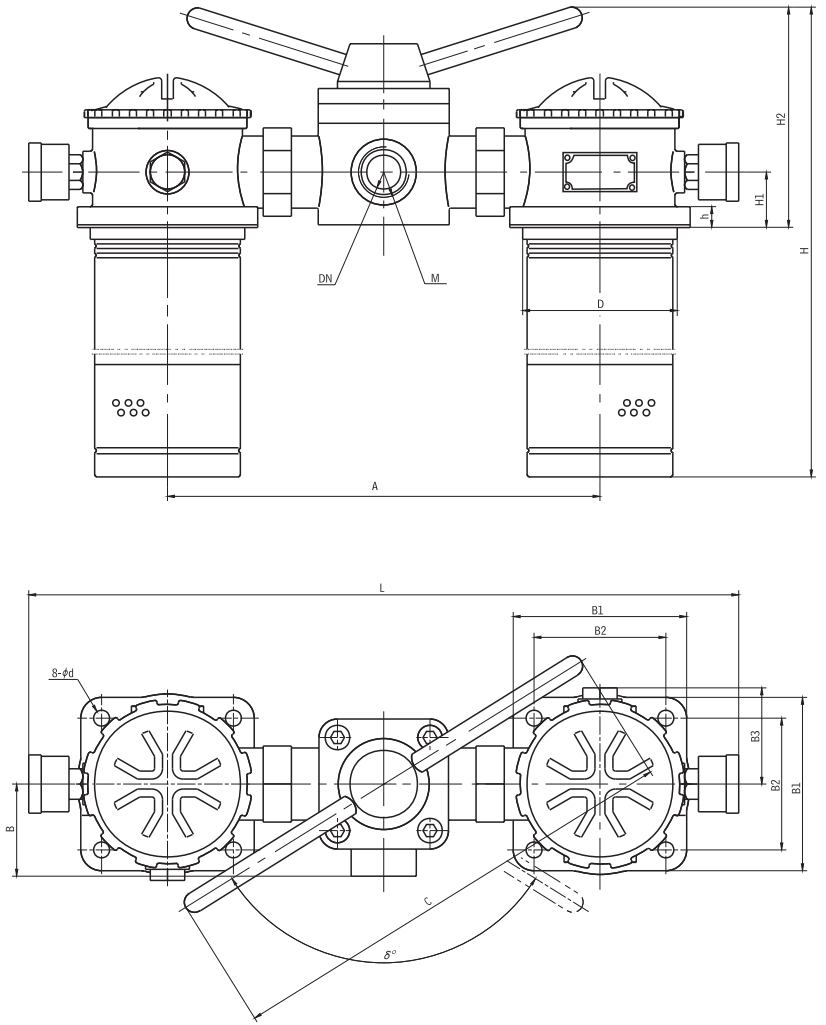

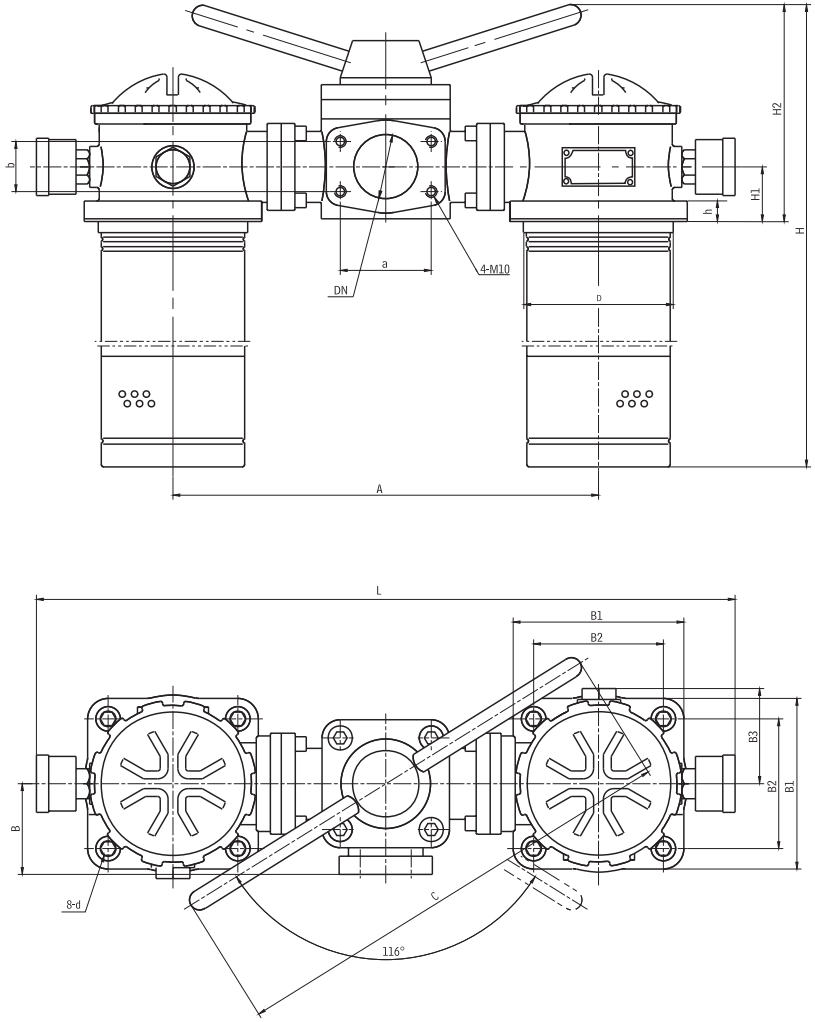

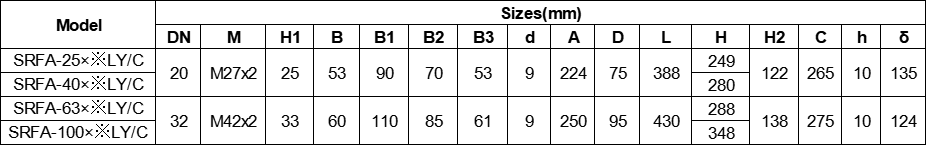

Mounting Size:

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

SRFA-400×20LY Duplex Tank Mounted Mini-type Return Filter

Note:

The inlet flange, seal, screw of this series will be supplied by our plant, The customer only need weld the steel tube ΦQ.


Related Specification Filters
SRFA-25×10LY SRFA-BH25×10LY SRFA-160×10FY SRFA-BH160×10FY SRFA-BH800×10FC SRFA-400×10LC SRFA-BH400×10LC
SRFA-40×10LY SRFA-BH40×10LY SRFA-250×10FY SRFA-BH250×10FY SRFA-BH1000×10FC SRFA-630×10LC SRFA-BH630×10LC
SRFA-63×10LY SRFA-BH63×10LY SRFA-400×10FY SRFA-BH400×10FY SRFA-800×10FC SRFA-800×10LC SRFA-BH800×10LC
SRFA-100×10LY SRFA-BH100×10LY SRFA-630×10FY SRFA-BH630×10FY SRFA-1000×10FC SRFA-1000×10LC SRFA-BH1000×10LC
SRFA-160×10LY SRFA-BH160×10LY SRFA-800×10FY SRFA-BH800×10FY SRFA-25×10LC SRFA-BH25×10LC SRFA-BH400×20LC
SRFA-250×10LY SRFA-BH250×10LY SRFA-1000×10FY SRFA-BH1000×10FY SRFA-40×10LC SRFA-BH40×10LC SRFA-BH630×20LC
SRFA-400×10LY SRFA-BH400×10LY SRFA-160×10FC SRFA-BH160×10FC SRFA-63×10LC SRFA-BH63×10LC SRFA-BH800×20LC
SRFA-630×10LY SRFA-BH630×10LY SRFA-250×10FC SRFA-BH250×10FC SRFA-100×10LC SRFA-BH100×10LC SRFA-BH1000×20LC
SRFA-800×10LY SRFA-BH800×10LY SRFA-400×10FC SRFA-BH400×10FC SRFA-160×10LC SRFA-BH160×10LC SRFA-160×20LC
SRFA-1000×10LY SRFA-BH1000×10LY SRFA-630×10FC SRFA-BH630×10FC SRFA-250×10LC SRFA-BH250×10LC SRFA-250×20LC
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
