UR699CD4040ZA+ Return Line Filter

Prev: WU-100X80J Leemin Replacement Hydraulic oil suction filter Next: HH 9680 C24UB Filter Assemblies Replacement

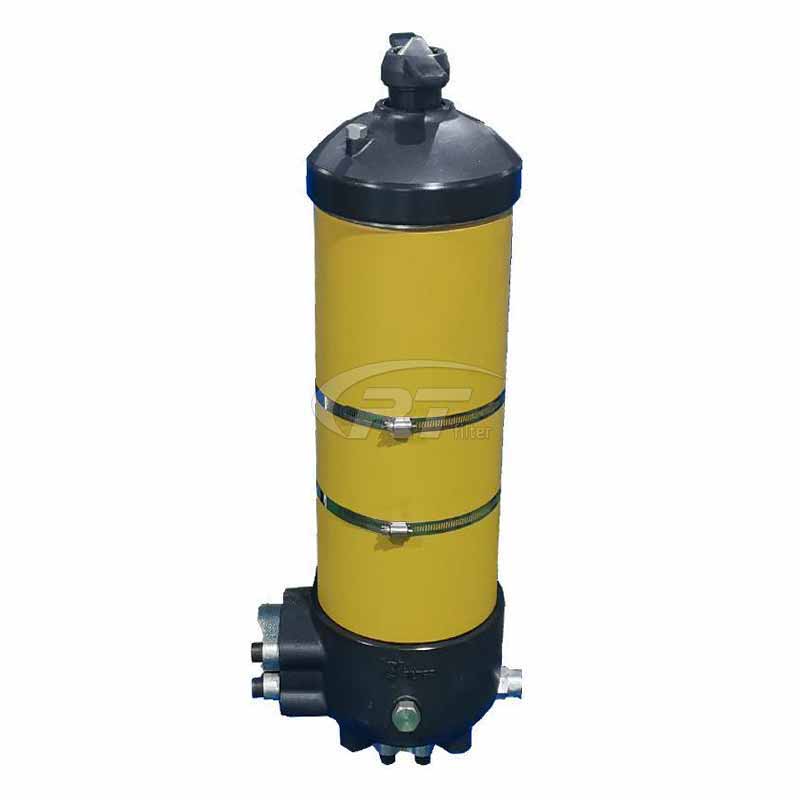

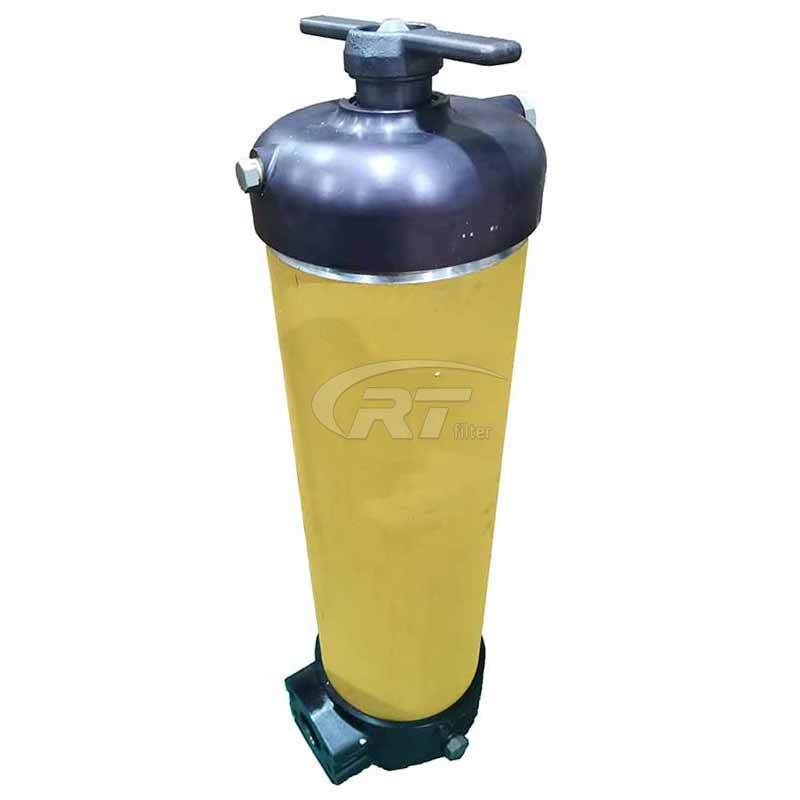

UR699CD4040ZA+ Return Line Filter

Model:UR699CD4040ZA+

Dia.:65mm

Press:1.7-4.5 Bar

Flow rate:835 L/min

Micron:10µm

Seal:Fluorocarbon

Inside filter element:UE610 Series

Bypass Setting:1.7-4.5 Bar

Series:UR699CA3240ZA3220ZA9 UR699CA3220ZA3220ZA9 more

The return line filter UR699CD4040ZA+ replacement from PartnerFilter is the longest life oil filter housing, providing the highest level of continuous fluid system protection in all applications, regardless of severity. Industry-leading BetaX (C) =2000* filtration efficiency; Currently the highest rated filter performance.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

PartnerFilter replaced the UR699CD4040ZA+ return line pass filter, a longest-life hydraulic oil filter housing that provides the highest level of continuous fluid system protection in all applications, regardless of severity. The filtration efficiency is BetaX (C) =2000* filtration efficiency; Follow the ISO 16889 standard.


Specifications:

Technical Data
Pressure28 bar (400 psi)
Flow835 L/min (220 US gpm)
Head/cover materialSteel/cast iron
Filter Element Burst Pressure10 bard (150 psid)
Indicator Pressure Setting1.1 bard (16 psid) or 3.5 bard (50 psid)
Bypass Valve Setting1.7 bard (25 psid) or 4.5 bard (65 psid)
Port Size2” and 2½”
Tube materialAluminium
Rated Fatigue Pressure0-23 bar (330 psi) per NFPA T2.06.01R2-2001 CAT C/90/*(1 million cycles),verified by testing at 0-27 bar (392 psi) for 1 million cycles.
Fluid CompatibilityCompatible with all petroleum oils and most water glycols,water-oil emulsions,and synthetic hydraulic and lubrication fluids


Features:

• Coreless filter element configuration

• Delivers maximum filter capacity in the smallest footprint

• Stress-Resistant Technology (SRT) Media

• Provides consistent,reliable,protection of system components over the full service life of the filter element

• Low clean differential pressure for low energy operation

• Prevents electrostatic discharge from damaging your filter and degrading your fluid

• Keeps fluids the cleanest,longest,for the greatest value

• Rapidly achieves and sustains required fluid system cleanliness

• Patented Ultipleat (laid-over pleat) filter medium pack

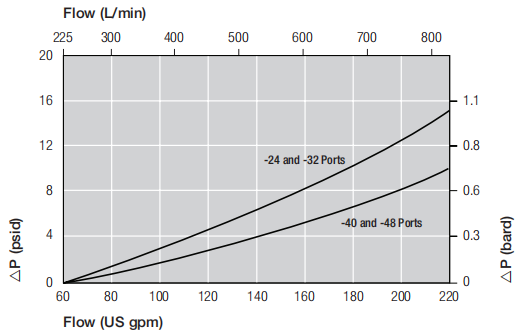

Pressure Drop Information:

Housing pressure drop is directly proportional to specific gravity

Housing pressure drop using fluid with 0.9 S.G.

UR699CD4040ZA+ Return Line Filter


Related Specification Filters
UR699CA3240ZD4020ZG9 UR699CA3220ZD4020ZG9 UR699CA3220ZD4020ZN9 UR699CA3240ZD4020ZN9 UR699CA3220ZD3220ZA9 UR699CA3240ZD3220ZA9
UR699CA3220ZA4020ZG9 UR699CA3240ZA4020ZN9 UR699CA3240ZA4020ZG9 UR699CA3220ZA4020ZN9 UR699CA3220ZA3220ZA9 UR699CA3240ZA3220ZA9
UR699CC3240ZA4020ZG9 UR699CA3220ZA4020ZN9 UR699CA3220ZA3220ZA9 UR699CC3240ZA3220ZA9 UR699CA3240ZC4020ZG9 UR699CA3220ZC4020ZN9
UR699CA3220ZC3220ZA9 UR699CA3240ZC3220ZA9 UR699CA3220ZC4020ZG9 UR699CC3240ZA4020ZN9 UR699CA3220ZA4020ZG9 UR699CA3240ZC4020ZN9
UR699CA3220ZF4020ZN9 UR699CA3240ZF4020ZN9 UR699CA3220ZF3220ZA9 UR699CC3240ZF3220ZA9 UR699CA3220ZF4020ZG9 UR699CA3240ZF4020ZG9
UR699CA3220ZF3220ZA9 UR699CA3240ZF3220ZA9 UR699CA3220ZF4020ZG9 UR699CA3220ZC4020ZG9 UR699CC3240ZC4020ZG9 UR699CA3220ZC4020ZN9
UR699CA3220ZC3220ZA9 UR699CC3240ZC3220ZA9 UR699CC3240ZF4020ZG9 UR699CA3220ZF4020ZN9 UR699CC3240ZF4020ZN9 UR699CC3240ZC4020ZN9
UR699CD4020ZA4020ZG9 UR699CD4040ZC4020ZG9 UR699CD4020ZA4020ZN9 UR699CC3240ZD4020ZG9 UR699CA3220ZD4020ZN9 UR699CC3240ZD4020ZN9
UR699CD4020ZA3220ZA9 UR699CA3220ZD3220ZA9 UR699CC3240ZD3220ZA9 UR699CA3220ZD4020ZG9 UR699CD4040ZC4020ZN9 UR699CD4040ZC3220ZA9
UR699CD4020ZF3220ZA9 UR699CD4020ZC3220ZA9 UR699CD4040ZA3220ZA9 UR699CD4020ZC4020ZG9 UR699CD4020ZF4020ZN9 UR699CD4040ZF4020ZN9
UR699CD4040ZF3220ZA9 UR699CD4020ZF4020ZG9 UR699CD4040ZF4020ZG9 UR699CD4040ZA4020ZG9 UR699CD4020ZC4020ZN9 UR699CD4040ZA4020ZN9
UR699CD4020ZD3220ZA9 UR699CF4040ZA3220ZA9 UR699CF4020ZA4020ZG9 UR699CD4040ZD4020ZG9 UR699CD4020ZD4020ZN9 UR699CD4040ZD4020ZN9
UR699CF4020ZA3220ZA9 UR699CD4040ZD3220ZA9 UR699CD4020ZD4020ZG9 UR699CF4040ZA4020ZG9 UR699CF4020ZA4020ZN9 UR699CF4040ZA4020ZN9
UR699CF4020ZF4020ZG9 UR699CF4020ZC4020ZN9 UR699CF4040ZC4020ZN9 UR699CF4040ZF4020ZG9 UR699CF4020ZC4020ZG9 UR699CF4040ZC4020ZG9
UR699CF4020ZF3220ZA9 UR699CF4040ZF3220ZA9 UR699CF4020ZD4020ZG9 UR699CF4040ZD4020ZG9 UR699CF4020ZF4020ZN9 UR699CF4040ZF4020ZN9
UR699CF4020ZD4020ZN9 UR699CF4020ZD3220ZA9 UR699CF4040ZD3220ZA9 UR699CF4020ZC3220ZA9 UR699CF4040ZC3220ZA9 UR699CF4040ZD4020ZN9
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
