Series: P030192,P191772,P030179,P191006,P181188 more

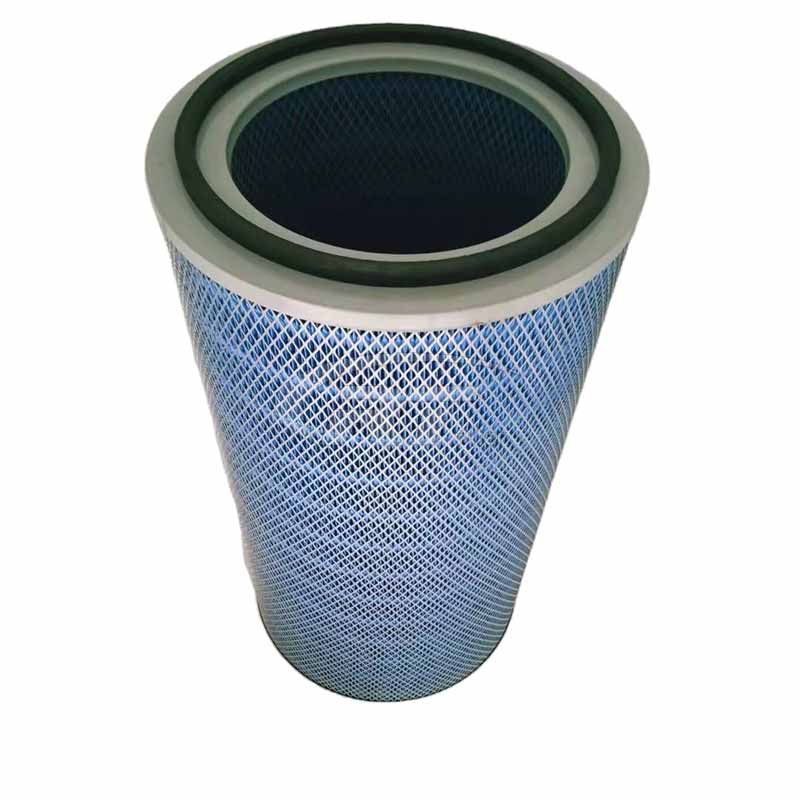

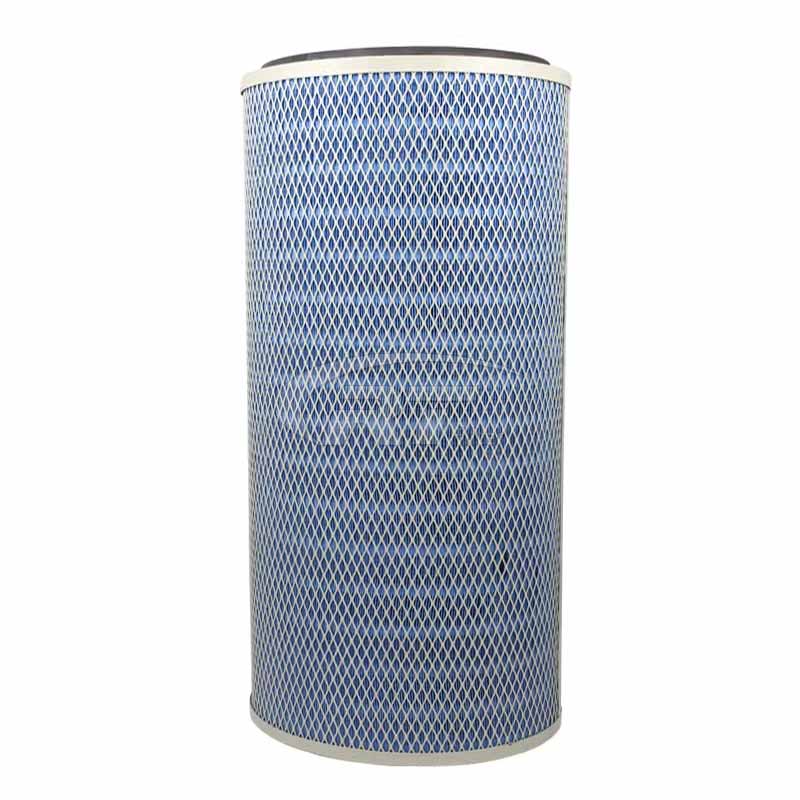

We supplie Donaldson Air Filter Cartridge P034078 016 436 replacement exactly.The filter media is durablemoisture and high temperature resistantand pulse cleanable.It delivers superior filtration efficiencyexcellent pulse cleaning effectivenessand low resistance to airflow throughout the life of the filter.
We supplie different air filter elements:Cellulose filter cartridge,polyester filter cartridge,PTFE membrane filter cartridge,welding&cutting filter cartridge, Antistatic filter cartridge.Fire Retardant filter cartridge, spraying&Blasting filter cartridge.
Our company supplies Donaldson Air Filter Cartridge P034078 016 436 replacement exactly.The filter media is durable,moisture and high temperature resistant,and pulse cleanable.It delivers superior filtration efficiency,excellent pulse cleaning effectiveness,and low resistance to airflow throughout the life of the filter.
Related Specification Filters
Item
Specifications
Outer Diameter
352 mm (13.84 inch)
Length
660 mm (26.00 inch)
Inner Diameter
241 mm (9.48 inch)
Filter Area
23.60 m² (254 ft²)
Media Type
Anti-Static
Temperature Limit
82 °C (180 °F)
Liner
Yes
End Cap Construction
Open/Open
Construction
Galvanized
Shape
Round
Pleat Height
51 mm (2.00 inch)
Anti-Static
Yes
Flame Retardant
Yes
More filters code number:
P030025
P030166
P030174
P191177
P191607
P191701
P191772
P030172
P191033
P030192
P191772
P030179
P191961
P191280
P030168
P199710
P191236
P191037
P191617
P191463
P191595
P191713
P191462
P191790
P191461
P191726
P191767
P190949
P191031
P191744
P191310
P191399
P191234
P191006
P181188
P181189
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
Application Scenarios Of Filter Element
Air Compressor Filtration
Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.
Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.
Equipment Oil Pollution Filtration
Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.
Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.
Industrial Wastewater Filtration
Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.
Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.
Oil Dust Filtration
Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.
Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
