V bank large volume air filter

Prev: Medium effect chemical fiber material pockets bag filter Next: Cardboard frame Pleated Air Filter/pre-filter

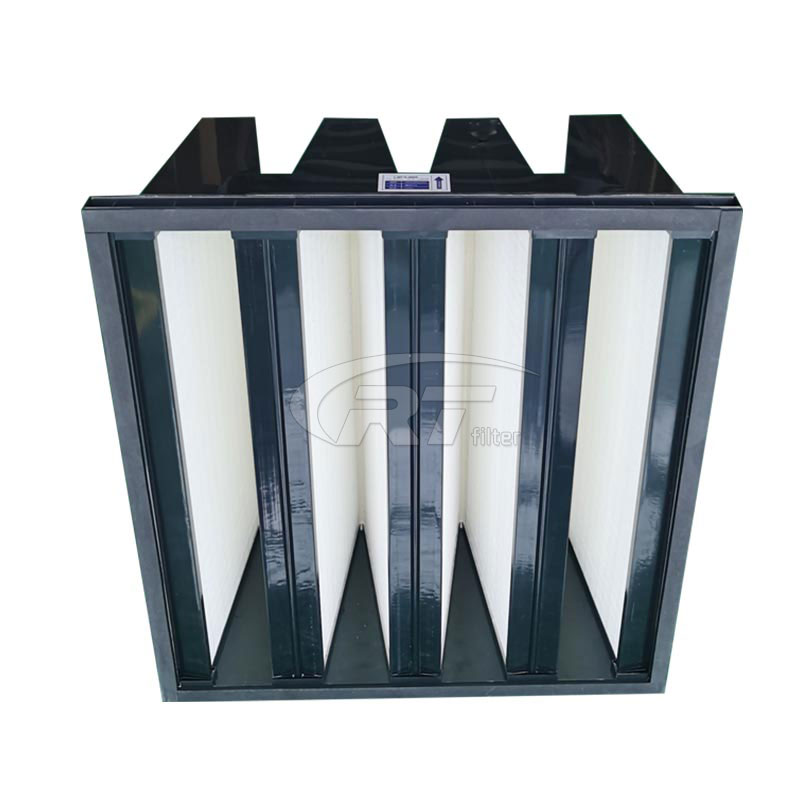

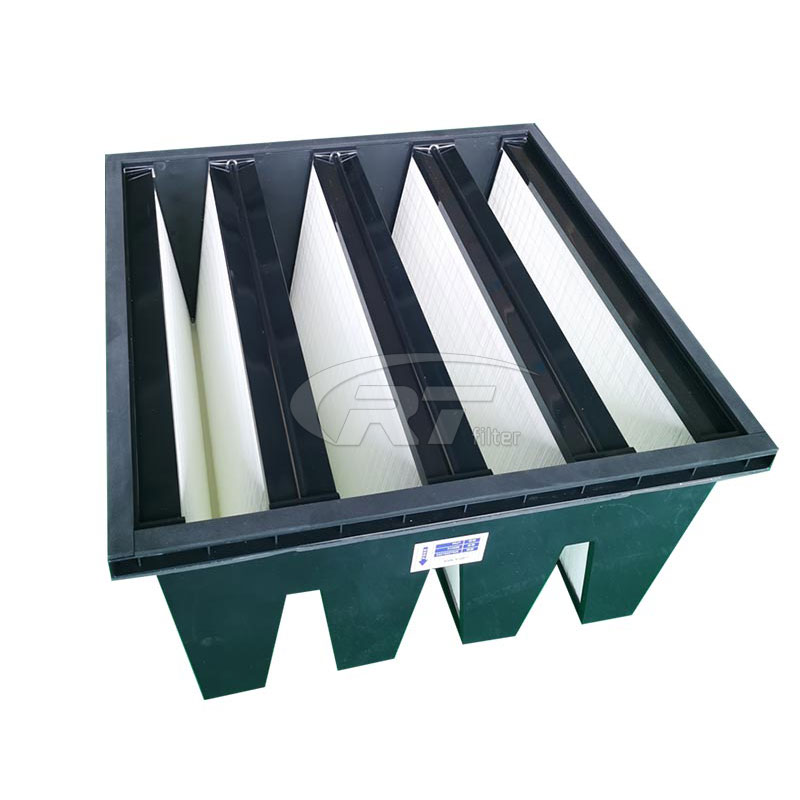

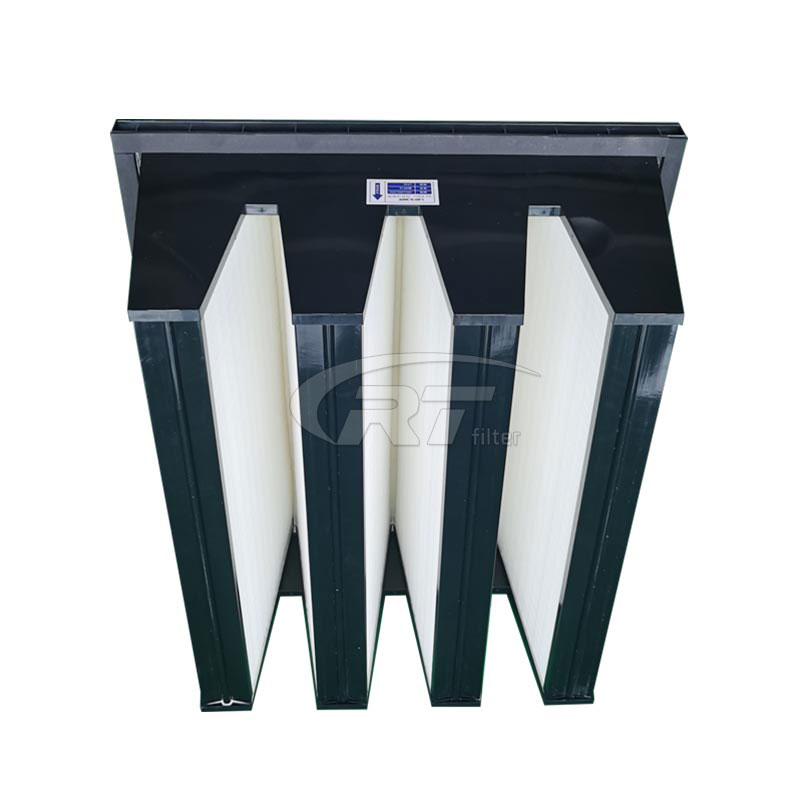

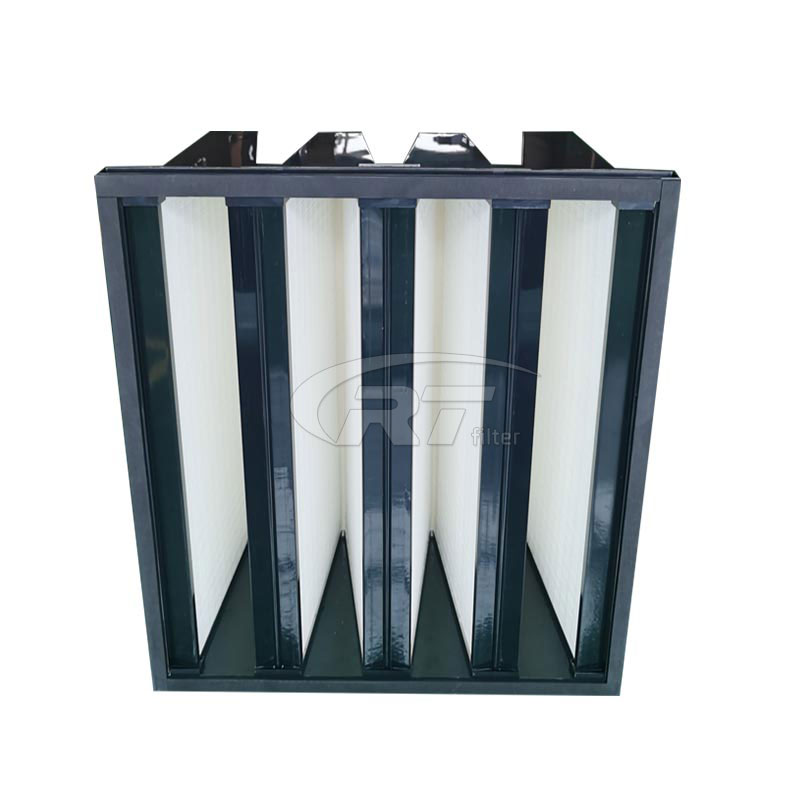

V bank large volume air filter

Filter Type: V Bank Large Volume Air Filter

Filtration efficiency: H10-H11

Flow rate: 3200m³/h

Filter material: Fiberglass

Initial pressure drop: ≤180pa

Maximum temperature: 80°℃

Sizes: 592*592*292mm

Seal: Viton

V Nos.: 4Pcs

Series: 592×287×292mm, 592×490×292mm more

V/W row high efficiency air filter using ultrafine glass fiber filter paper, composed of a plurality of filter elements, no partition, strictly sealed. Efficiency covers F7 to H13. It has the characteristics of large filter area, low resistance, long service life (can reach 2-3 times the traditional filter partition device), and has a wide range of applications.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

We manufacture a wide range of air filters, the V/W group HEPA filter is made of ultrafine glass fiber filter paper, composed of multiple filter elements, no partition, strictly sealed. Efficiency covers F7 to H13. Plate filter 2-3 times), features a wide range of applications. The filtration principle of the dust removal equipment is to use the adsorption method, that is, to obtain clean air that meets the standards, and at the same time capture and absorb dust particles of different sizes in the air to improve air quality. In addition to absorbing dust, chemical filters can also mainly absorb odor, and are usually used in biopharmaceuticals, hospitals, airport terminals, residential areas and other places.



Features:

1. The use of ultra-fine,moisture-proof glass fiber filter material enables the filter to operate normally in harsh environments such as high temperature and humidity,bringing stable filtration efficiency.

2. Compact structure,small footprint,suitable for compact central air-conditioning system;

3. The frame of the air dust removal series is made of galvanized steel plate,stainless steel plate or plastic frame,which has good stability;

4. The effective filtration area is large,so the resistance is low and the service life is long;



Technical Parameters:

Filter material: ultrafine polypropylene filter paper,glass fiber filter paper

Humidity: 100%

Frame material: galvanized steel plate,plastic

Temperature resistance: 80℃

Filtration efficiency:high efficiency,sub-high efficiency,medium efficiency



Application:

1. Ventilation and air-conditioning systems,pre-filters for general industrial plants or clean centralized ventilation and air-conditioning systems.

2. V/W air filter is widely used in industrial and commercial heating and ventilation air conditioning systems,such as:office buildings, conference rooms,hospitals,shopping malls,gymnasiums,airports and other large civil buildings.

V bank large volume air filterV bank large volume air filterV bank large volume air filter


Related Specification Filters
Sizes WxHxD(mm) Structure frame Filtration area(㎡) Air flow rate(m³/h) F8 Initial pressure drop(Pa) H10 H13 H14
490*592*292 Signle flanged 3V plastic/metal 14.4 2400 ≤110 ≤180 ≤220 ≤250
610*610*292 Box type 6V metal 32 5000 ≤110 ≤180 ≤220 ≤250
287*490*292 Signle flanged 2V plastic/metal 7.7 1200 ≤110 ≤180 ≤220 ≤250
287*592*292 Signle flanged 2V plastic/metal 9.4 1600 ≤110 ≤180 ≤220 ≤250
490*287*292 Signle flanged 3V plastic/metal 6.4 1100 ≤110 ≤180 ≤220 ≤250
490*490*292 Signle flanged 3V plastic/metal 11.6 1900 ≤110 ≤180 ≤220 ≤250
610*610*292 Signle flanged 5V plastic/metal 27 4200 ≤110 ≤180 ≤220 ≤250
592*287*292 Signle flanged 3V plastic/metal 6.4 1100 ≤110 ≤180 ≤220 ≤250
592*490*292 Signle flanged 3V plastic/metal 11.6 1900 ≤110 ≤180 ≤220 ≤250
592*592*292 Signle flanged 3V plastic/metal 14.4 2400 ≤110 ≤180 ≤220 ≤250
592*287*292 Signle flanged 4V plastic/metal 8.4 1600 ≤110 ≤180 ≤220 ≤250
592*490*292 Signle flanged 4V plastic/metal 15.4 2500 ≤110 ≤180 ≤220 ≤250
592*592*292 Signle flanged 4V plastic/metal 18.8 3200 ≤110 ≤180 ≤220 ≤250
592*287*292 Signle flanged 5V plastic/metal 10.5 1800 ≤110 ≤180 ≤220 ≤250
610*610*292 Signle flanged 4V metal 22 3400 ≤110 ≤180 ≤220 ≤250
592*490*292 Signle flanged 5V plastic/metal 19 3200 ≤110 ≤180 ≤220 ≤250
592*592*292 Signle flanged 5V plastic/metal 23.5 3900 ≤110 ≤180 ≤220 ≤250
305*305*292 Signle flanged 2V plastic/metal 5.4 850 ≤110 ≤180 ≤220 ≤250
305*610*292 Signle flanged 2V plastic/metal 10.8 1700 ≤110 ≤180 ≤220 ≤250
287*287*292 Signle flanged 2V plastic/metal 4.2 800 ≤110 ≤180 ≤220 ≤250
610*305*292 Signle flanged 4V metal 11 1700 ≤110 ≤180 ≤220 ≤250
610*305*292 Signle flanged 5V metal 13.5 2100 ≤110 ≤180 ≤220 ≤250
610*305*292 Box type 6V metal 16 2500 ≤110 ≤180 ≤220 ≤250
If you have other sizes filters,please send us your filters specifications or samples,we can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
