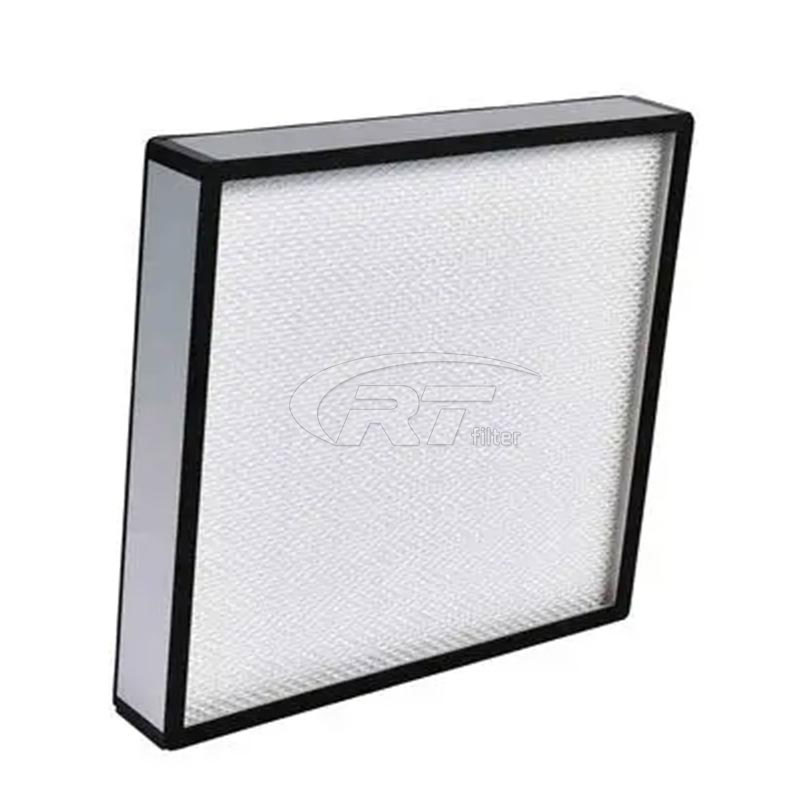

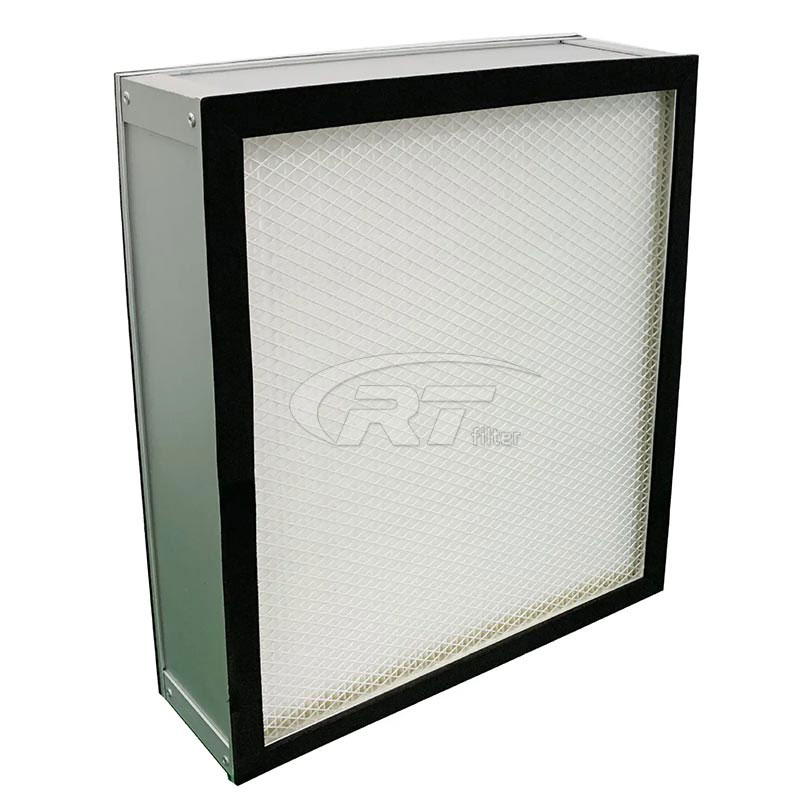

305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers

Prev: Aluminium frame Washable Plate Air Filter 595x595x46mm Next: High Efficiency HVAC HEPA Air Filters with Interlayers
305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers

Filter Type: HEPA/ULPA Plate Air Filter

Sizes:3 05x610x50mm

Flow rate: 350m³/h

Initial Pressure Drop: ≤220Pa

Filtration Efficiency: H13 H14 U15 U16(EN1822)

Filter material: Fiberglass

Maximum temperature: 80°C (180°F)

Seal: Viton

Series: 610x610x50mm, 305x610x69mm more

We make the HEPA/ULPA HVAC plate air filter without interlayersit is made of fine glass fiber paper and hot-melt adhesiveused for air purification under normal temperaturepressure and humidity conditions.The special structure of the filter material makes the porosity of the filter bed quickly form up and down.The small gradient density makes the filter fast in filtering speedlarge in interception capacity and easy to backwash.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Description:

We make the HEPA/ULPA HVAC plate air filter without interlayers,it is made of fine glass fiber paper and hot-melt adhesive,used for air purification under normal temperature,pressure and humidity conditions.The special structure of the filter material makes the porosity of the filter bed quickly form up and down.The small gradient density makes the filter fast in filtering speed,large in interception capacity and easy to backwash.



Features:

No interlayers design to reduce operating costs

Wide range of applications, compact structure, saving storage space

Ultra-thin design saves installation space



Structure Material:

• Frame: Anodized aluminum profile

• Frame optional thickness: 50mm/70mm/90mm/110mm

• Filter material: ultrafine glass fiber

• Divider: hot melt adhesive

• Sealant: Polyurethane

• Protective net: painted steel net



Resistance & air volume:

305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers

Based on 594*594*44mm 300E air flow m³/h



Efficiency:

99.99%@0.3 um(H13)

99.999%@0.3um(H1 4)

99.9995%@0.12um(U15)

99.99995%@0.12um(U16)(EN1822)



Applications:

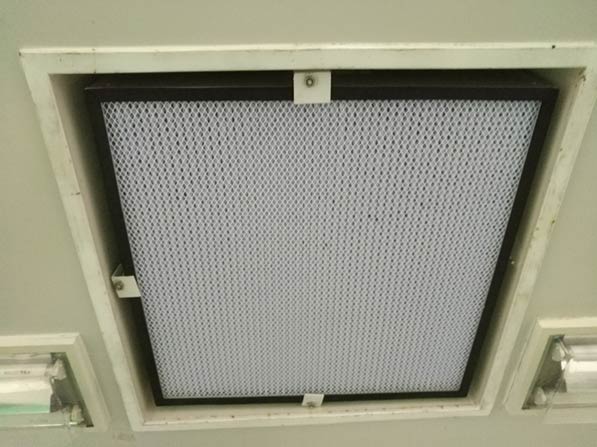

Widely used in clean rooms and other fields that have strict requirements on air cleanliness.

305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers305x610x50mm HEPA/ULPA Plate Air Filter Without Interlayers

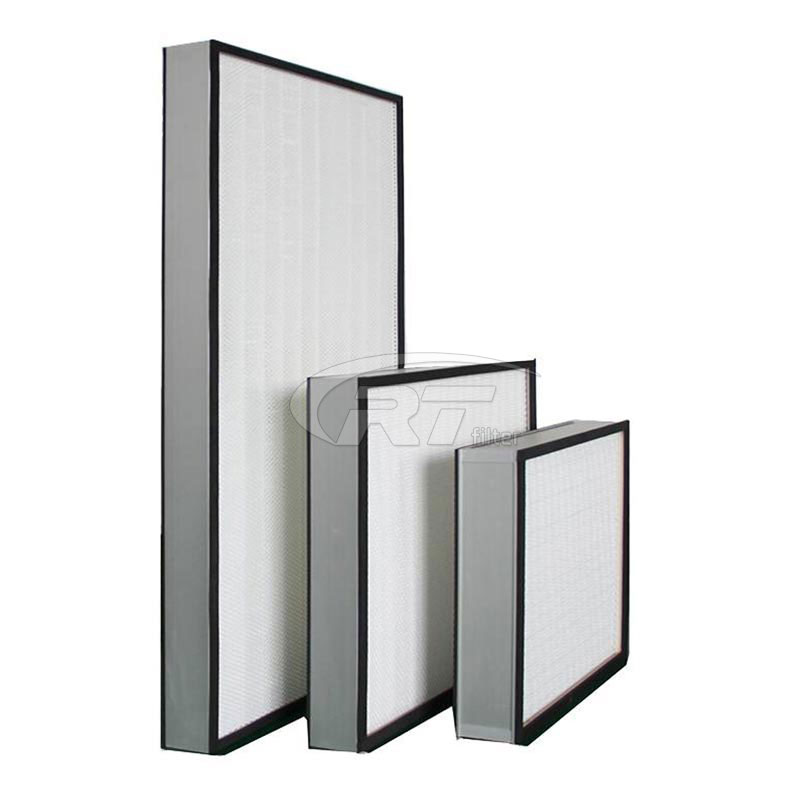

Related Specification Filters
Sizes Clogging Capacity Air Flow Rate Initial Pressure Drop Sizes Clogging Capacity Air Flow Rate Initial Pressure Drop
WxHxD(mm) (G) (m³/h) (Pa) WxHxD(mm) (G) (m³/h) (Pa)
305*610*50 220 350 ≤220 484*484*80 450 800 ≤220
610*610*50 450 700 550*550*80 600 1000
305*610*69 300 500 610*610*80 750 1350
610*610*69 600 1000 630*630*80 800 1500
915*610*69 900 1500 915*610*80 1100 2000
1170*570*69 1100 1800 1220*610*80 1500 2700
1220*610*69 1200 2000 484*484*90 550 900
350*350*80 250 450 610*610*90 850 1450
400*400*80 300 500 1220*610*90 1700 2900
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
