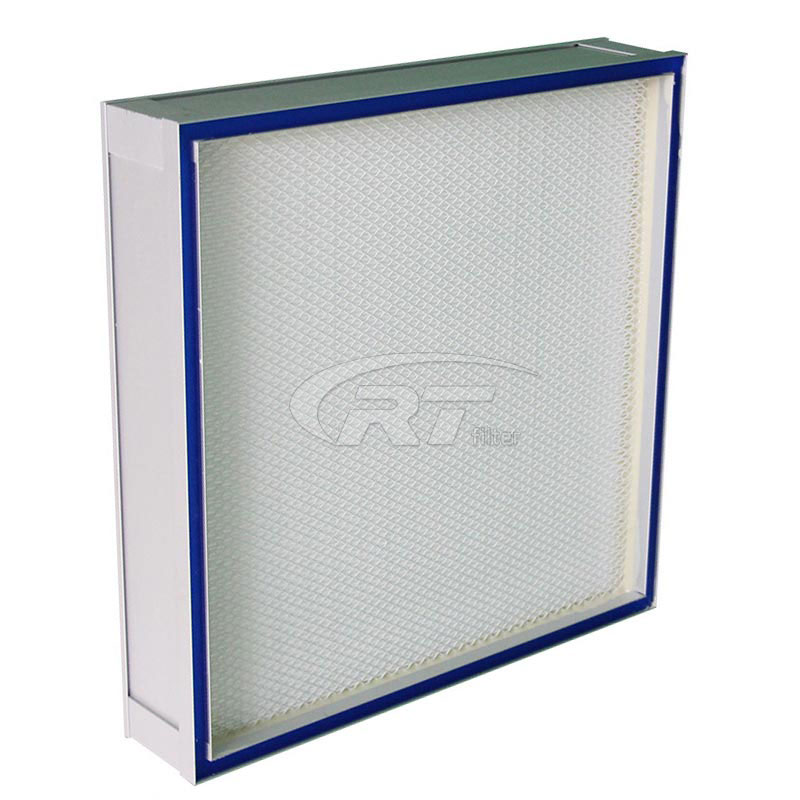

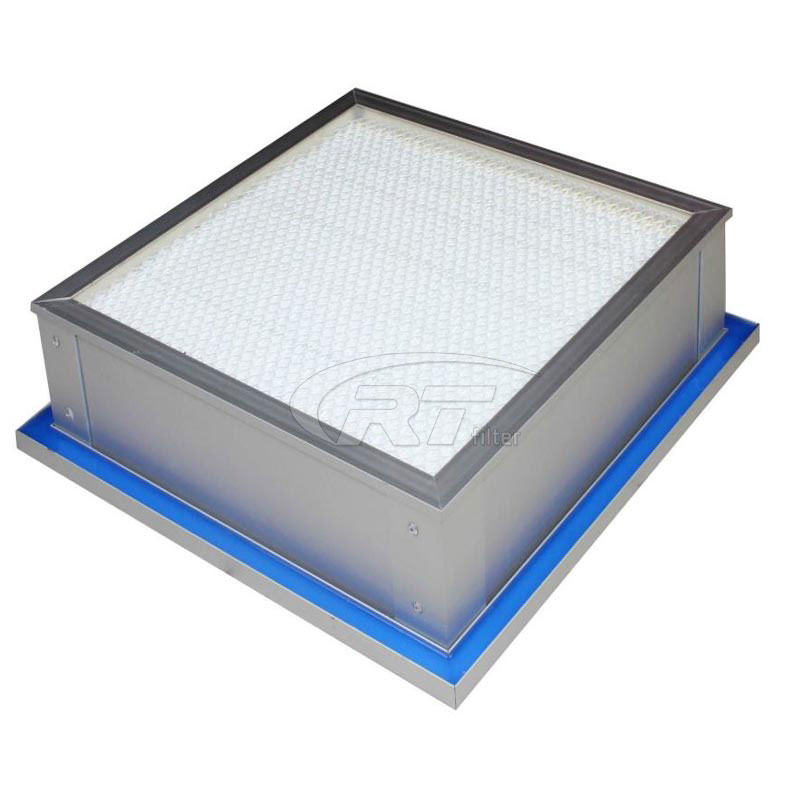

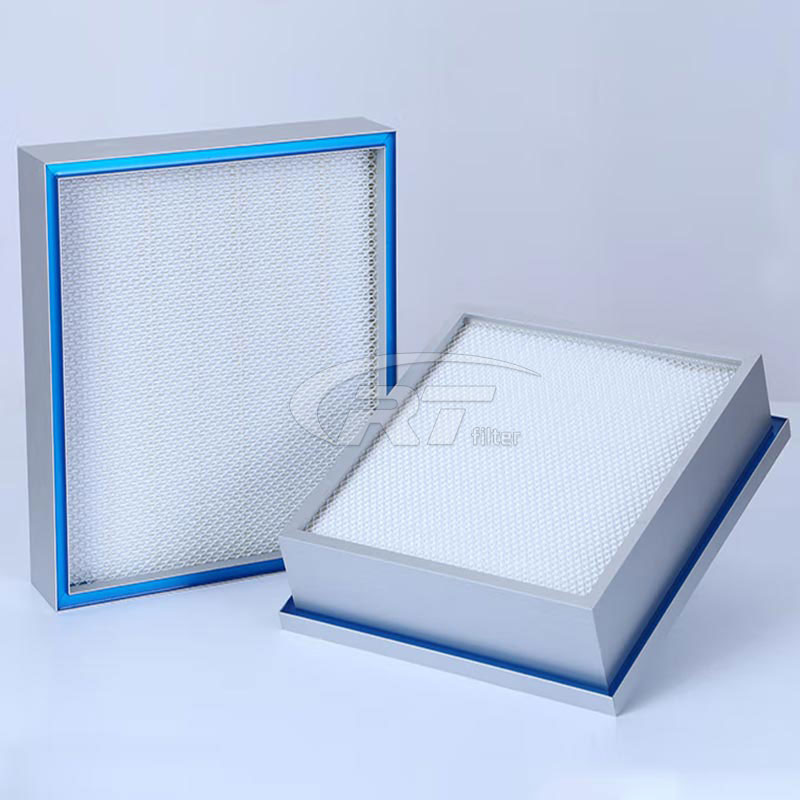

We make the ultra-high efficiency air filter without inter-layers with liquid tank gel seal technologywhich is a superior method to the currently commonly used mechanical compression device seal in China.The liquid tank gel seal filter is easy to install and the seal is very reliable.It is a high-efficiency filter sealing method commonly used in the world.
We make the ultra-high efficiency air filter without inter-layers with liquid tank gel seal technology,which is a superior method to the currently commonly used mechanical compression device seal in China.The liquid tank gel seal filter is easy to install and the seal is very reliable.It is a high-efficiency filter sealing method commonly used in the world.
Features:
• Filtration efficiency grades H14~U17 are available
• It can be equipped with double-sided protective net to protect the filter material and has good strength
• Thin, compact
• Special ultra-fine glass fiber filter paper is used as the filter material, with high efficiency and low resistance
• The tank is filled with imported blue jelly glue

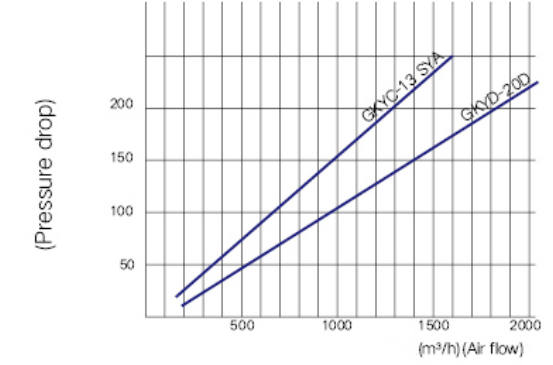

Resistance & air volume:

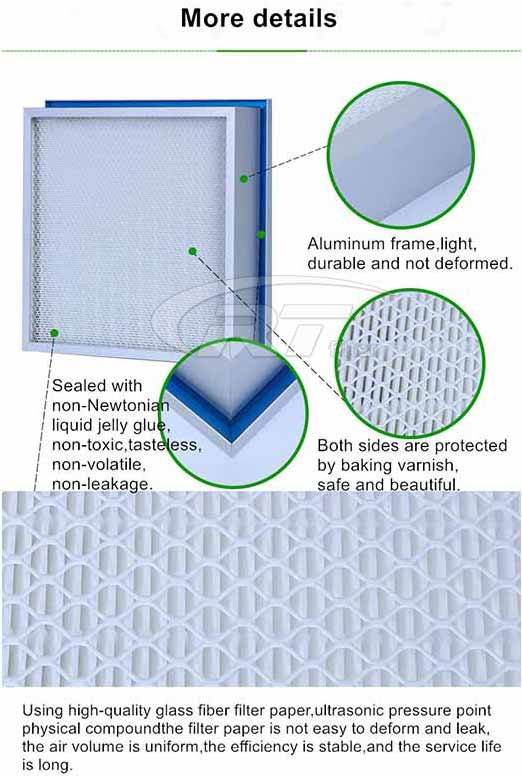

Material:
• Frame: Anodized aluminum profile
• Filter material:Ultrafine glass fiber
• Divider:Hot melt adhesive
• Sealant: Jelly glue
• Protective net:Painted steel net
Efficiency:
H14(99.97%)@0.5μm
Applicable conditions:
Maximum temperature:80℃ Maximum humidity:80%
Applications:
It is used for terminal air supply requiring ultra-high cleanliness,such as electronics,pharmaceutical industry,clean room, high-efficiency air supply outlet,laminar flow equipment,etc.
Related Specification Filters
Sizes
Filtration Area
Air Flow Rate
Initial Pressure Drop
WxHxD(mm)
(㎡)
(m³/h)
(Pa)
610*610*80
9.5
800
≤220
305*305*93
2.7
250
610*610*93
13
1000
1220*610*93
27
2000
305*305*104
3.4
320
≤250
610*610*104
13.9
1280
1220*610*104
28
2560
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
