HFPP150-PPN0500-60UEC High Flow Industrial Water Filter

Prev: PFTM1-60U-HFH13U PP Series Water Cartridge Filter Next: No more

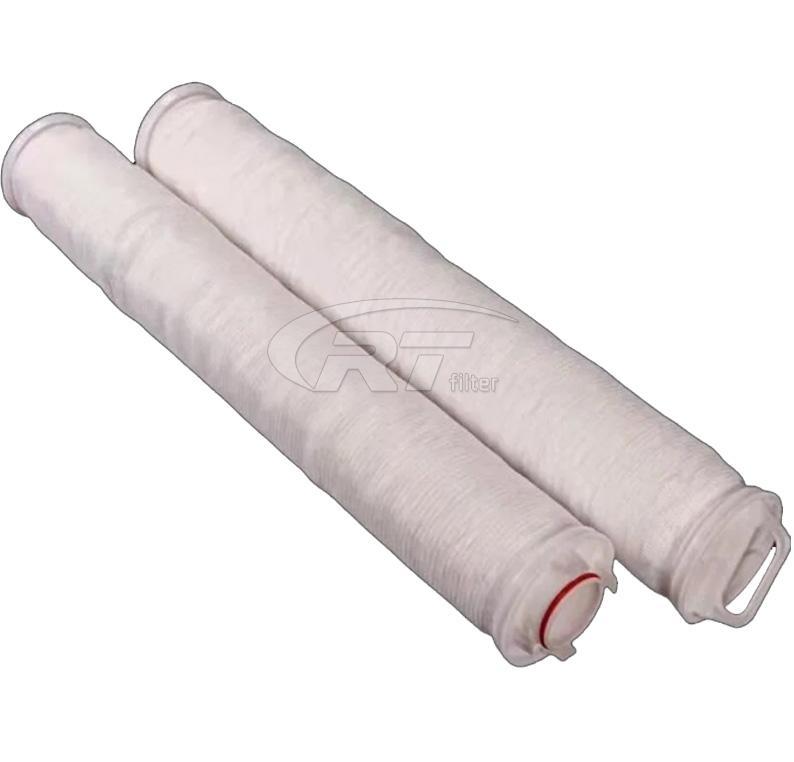

HFPP150-PPN0500-60UEC High Flow Industrial Water Filter

Brand:PartnerFilter

Model: HFPP150-PPN0500-60UEC

Type: High Flow Pleated Filter Cartridge

Length: Standard

Micron Rating: 0.45μm

Filter Construction: Pleated

Upstream Support: Polyester

Downstream Support: Polyester

Inner Support Core: Glass fiber reinforced Polypropylene

Outer Protection Cage: Glass fiber reinforced Polypropylene

HFPP150-PPN0500-60UEC high flow water filter cartridge is used to clean and filter water fluids and effectively remove impurities such as tiny particles and bacteria in the water fluids. The filtration efficiency is as high as 99.9%, ensuring the original quality attributes of the water fluids. It is a high-efficiency microporous pleated water filter type.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

We make HFPP150-PPN0500-60UEC high flow water filter cartridge is used to clean and filter water fluids and effectively remove impurities such as tiny particles and bacteria in the water fluids. HFPP150-PPN0500-60UEC is a high-efficiency microporous pleated water filter type.The filtration efficiency is as high as 99.9%, ensuring the original quality attributes of the water fluids.


Performance parameters:

ItemValue
LengthStandard
Filtration accuracy0.45µm
Maximum pressure drop4.0bar
Maximum temperature120℃
Filtration efficiency99.9%
Filter ConstructionPleated
Upstream SupportPolyester
Downstream SupportPolyester
Inner Support CoreGlass fiber reinforced Polypropylene
Outer Protection Cage....Glass fiber reinforced Polypropylene
For Fluid Type.....Bottled Water Beer Cider Wine etc.....
Filter media.....Pleated glass fiber,Polypropylene(PP),PP Melt blown


Filter performance:

• Withstand high filtration pressure

• Good chemical compatibility

• The filter element can be made of various materials to meet the needs of various liquid filtration

• The structure of the filter pore diameter is dense inside and sparse outside, which has a good deep filtration effect

• Effectively remove suspended solids, particles, etc. in the liquid, with small pressure drop and large dirt holding capacity

HFPP150-PPN0500-60UEC High Flow Industrial Water Filter


Material Structure:

Our manufactured HFPP150-PPN0500-60UEC water filter cartridge manufacturing materials are made of high-quality, safe and environmentally friendly filter membranes, and imported non-woven fabrics or mesh fabrics are used as the support layer, with full batch material traceability. The filter housing, center rod, and end caps adopt hot-melt welding technology without using any adhesives, additives, or lubricants, and without any fiber shedding. The production process is environmentally friendly, pollution-free and leak-free. 100% integrity tested during production, manufactured, rinsed, tested and packaged in a clean room.

HFPP150-PPN0500-60UEC High Flow Industrial Water Filter


Quality Advatage:

We corporation are excellent high flow water filter cartridge manufacturers.

Our manufactured HFPP150-PPN0500-60UEC water filters are guaranteed to meet or exceed OEM filter requirements

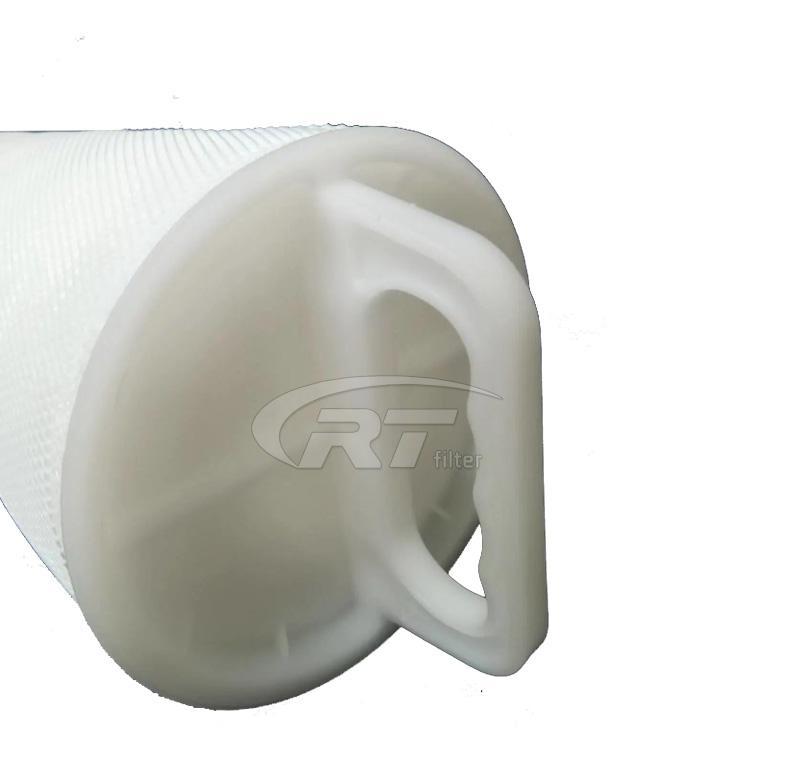

• Convenient handle design, easy to replace and portable.

• High-quality filter media combined with internal multi-layered pleated depth filtration.

• The surface fiber structure is strengthened to prevent the filter material fibers from falling off.

• High-quality filter material and hot-melt bonding process, high cleanliness, no adhesive added, no pollution to water quality.

• Large diameter design increases the anti-fouling properties of the filter element, prolongs service life and reduces usage costs.

• Deep groove folding design increases the filtration area and the pressure drop is significantly lower than ordinary filter elements


Test standards:

Before delivery, Our manufactured HFPP150-PPN0500-60UEC water filter cartridge will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


PartnerFilter also offers a full range of replacement filter elements:

Parker

3M

Pall

Pentair

Peco

Other types are available on request


Related Specification Filters

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
