70” Power Plant Condensate Water Treatment Filter Element

Prev: PP melt-blow Filter Element with 10″20″30″40″and 1 Mi Next: 10″20″30″40″Activated carbon filter elements

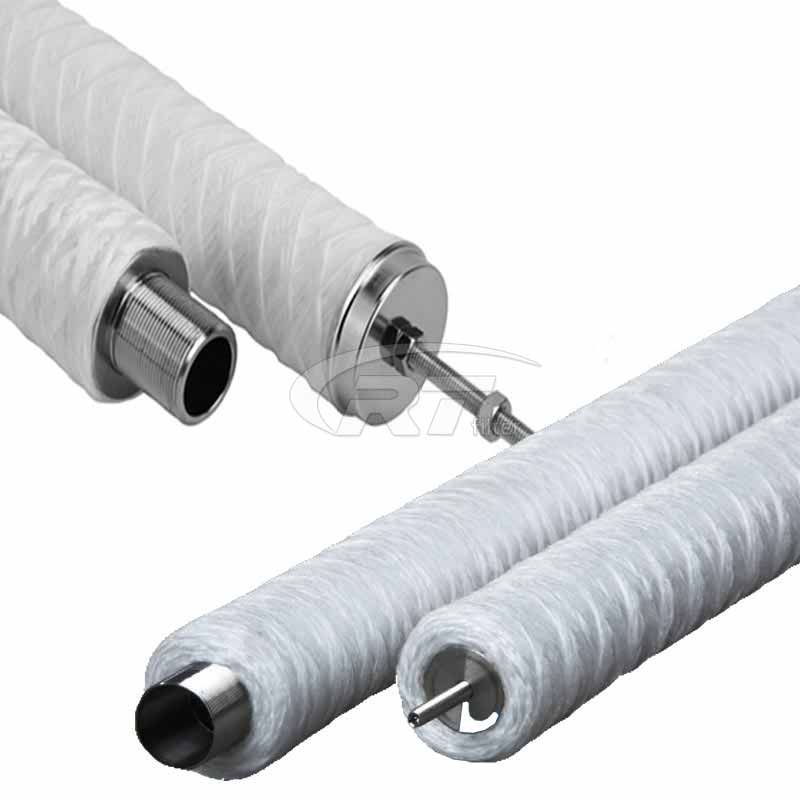

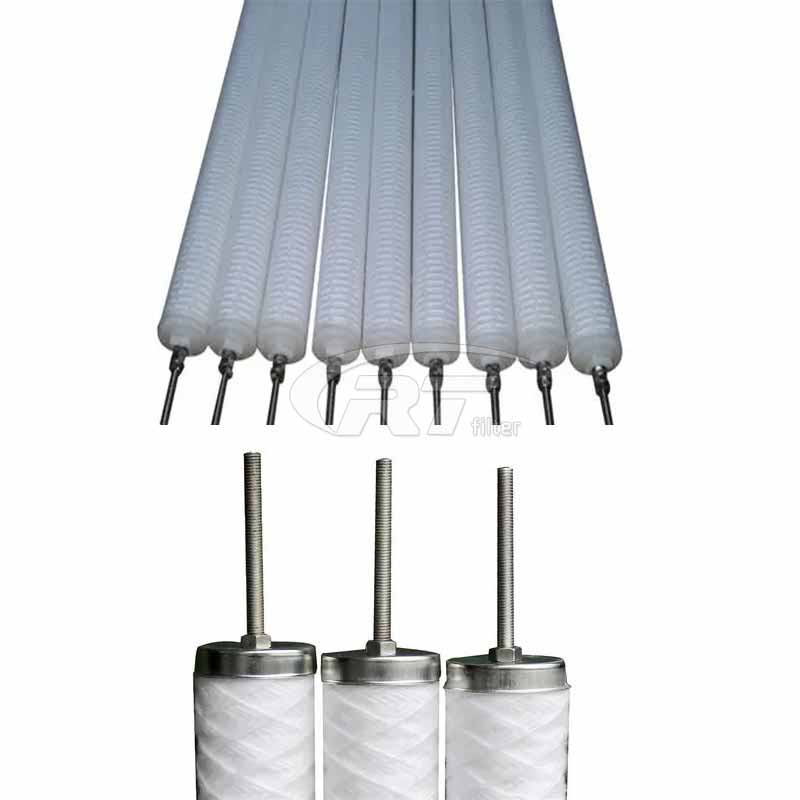

70” Power Plant Condensate Water Treatment Filter Element

Brand:PartnerFilter

Length:60″ 70″ 80″ 100″

Filtration Rating: 1μm 3μm 5μm 10μm 20μm 50μm 100μm

Filter material: PPCottonGlass Fiber

Seal: Silicone EPDM Viton NBR

End Caps: Polypropylene, Stainless steel

Center Tube: Polypropylene, Stainless steel

O-ring Seal: Ethylene Propylene Rubber

Application: Food and Beverage Industry

The 70" special filter element for power plant is a filter element that can be washed repeatedly and is specially designed for the filtration of condensate water in power plants.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Brief Introduction:

With the increase of capacity and parameters of generating units (especially supercritical pressure units and nuclear power plants),higher and higher requirements are put forward for the quality of feed water.This is because the increase in pressure and temperature in the thermal system accelerates the oxidation rate of metals in water vapor,and the resulting scale affects heat transfer.If the corrosion products of iron oxide are attached,the safe operation of the unit will be affected.Therefore,it is necessary to minimize the iron content in the feed water.



Technical Specifications/Component Materials:

Outer diameter: 64mm

Length: 60"(1524mm)70"(1778mm)

Filter material: polypropylene

Support/distribution layer:Polypropylene

Connection method: thread, 222 fins


Filter Performance:

Filtration accuracy: 1um, 4um, 10um

Maximum operating temperature: 82°C

Maximum pressure difference: 2.8Bar 65°C



Performance Features:

(1). Complete PP structure

(2). Wide chemical applicability

(3). Folded design increases filter area

(4). Can be rinsed repeatedly

(5). Before use, a layer of resin can be applied to the surface of the shell

(6). Surface filter design ensures effective particle removal

(7). Ultra-long filter element 70" (1778mm) is suitable for large flow/high dirt holding applications

(8). Installs directly into existing enclosures without replacement or modification

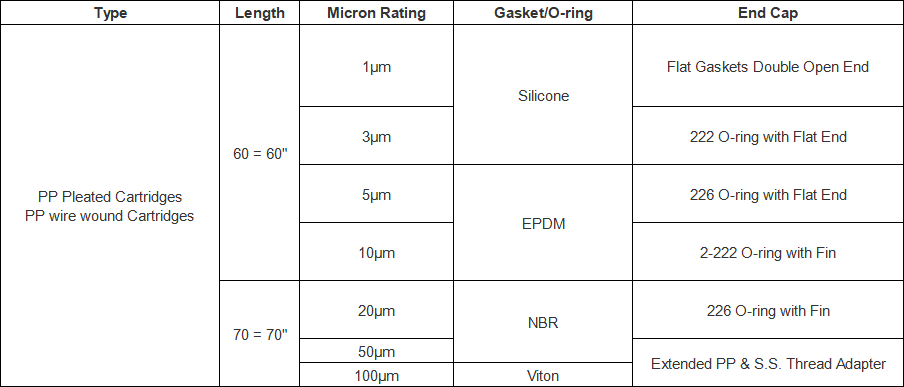

Order Information:

The function of the condensate pre-treatment filter element is mainly to remove suspended impurities such as iron and copper oxides in the condensate water,thereby prolonging the operation period of the desalination device and protecting the resin (especially the anion resin) not to be polluted.This is even more important during the start-up phase of the unit. The 70" special water filter element for power plant is a filter element that can be washed repeatedly and is specially designed for the filtration of condensate water in power plants.

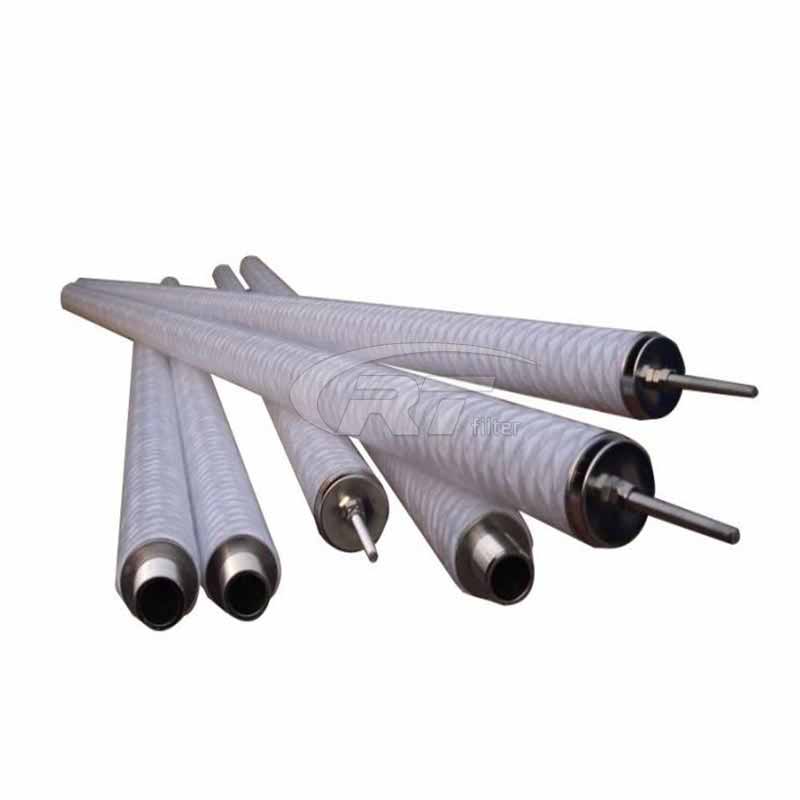

70” Power Plant Condensate Water Treatment Filter Element



Application:

Ro security filtration,seawater desalination pretreatment

Filtration of condensate water in power plants

Filtration of raw materials,solvents,and water in the biopharmaceutical industry

paints,coatings, petrochemicals

Microelectronics,film,fiber,resin



PartnerFilter also offers a full range of replacement filter elements:

Parker

3M

 Pall

Pentair

Peco

Other types are available on request
