PFTM1-60U-HFH13U PP Series Water Cartridge Filter

Prev: 20"30"60"Parker PP Water Filter Cartridge RSMG045-60EPP Next: HFPP150-PPN0500-60UEC High Flow Industrial Water Filter

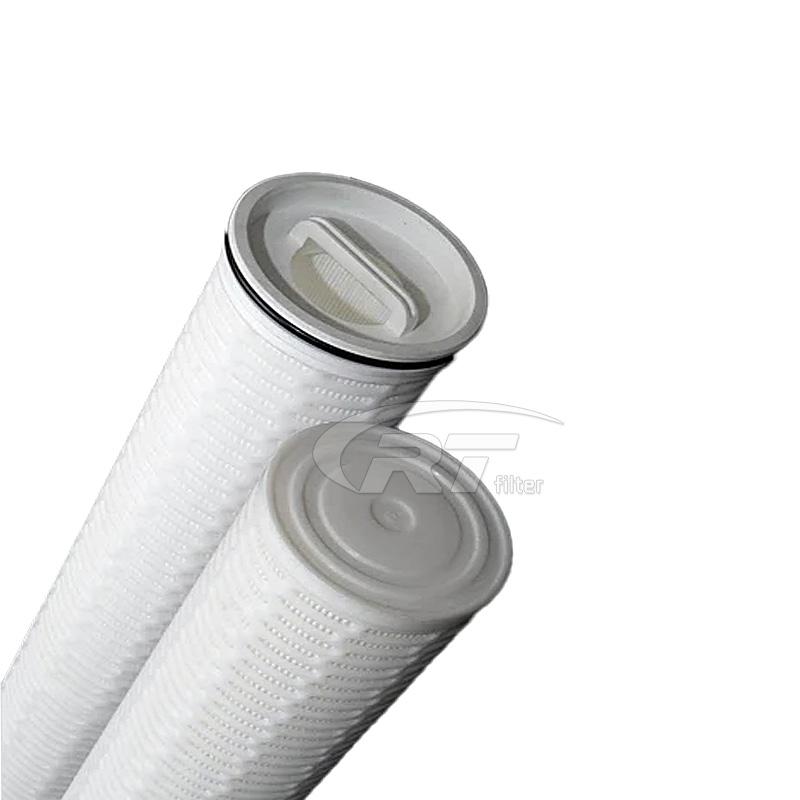

PFTM1-60U-HFH13U PP Series Water Cartridge Filter

Brand:PartnerFilter

Model: PFTM1-60U-HFH13U

Length: 20" 30" 40" 60"

Micron Rating: 1µm

Type: Water Cartridge Filter Element

Inner Support Core: Glass fiber reinforced Polypropylene

Outer Protection Cage: Glass fiber reinforced Polypropylene

End Caps: Nylon

End Cap Insert: 316L Stainless Steel

End Cap Configuration: Fin/226 Bayonet

Capsule Body Material: Glass fiber reinforced Polypropylene

O-rings: Silicone/EPDM

Series: PFTM1-40U-HFH13U,PFTM1-40U-HFHU,PFTM1-60U-HFH13U,PFTM3-20U-HFH13U more

PFTM1-60U-HFH13U pall high flow PP series water cartridge filters are used in water fluids to efficiently remove impurities such as tiny particles and bacteria in the water fluid, ensuring the original quality attributes of the water fluid, and the cleaning and filtration efficiency is as high as 99.8%. It is a high-efficiency microporous pleated water filter type.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

PFTM1-60U-HFH13U pall high flow series water cartridge filter manufacturing materials are made of high-quality, safe and environmentally friendly filter membranes, and imported non-woven fabrics or mesh fabrics are used as the support layer, with full batch material traceability.



More Related Filters:

PFTM1-60U-HFH

PFTM1-40U-HFH

PFTM3-20U-HFJ

PFTM3-60U-HFHU

PFTM3-40U-HFJ

PFTM3-60U-HFH13

PFTM1-20U-HFHU

PFTM3-40U-HFH13

PFTM1-40U-HFH13

PFTM3-60U-HFH13



Filter Material Flow Characteristics

PFTM1-60U-HFH13U pall high flow series water cartridge filter production process is environmentally friendly, pollution-free and leak-free. 100% integrity tested during production, manufactured, rinsed, tested and packaged in a clean room. The filter housing, center rod, and end caps adopt hot-melt welding technology without using any adhesives, additives, or lubricants, and without any fiber shedding.

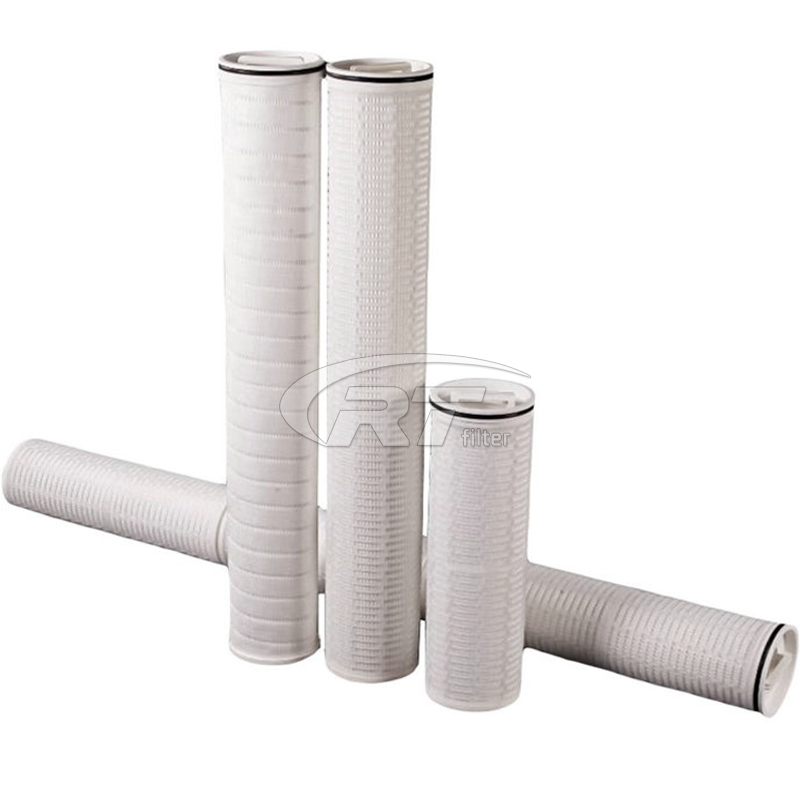

....PFTM1-60U-HFH13U PP Series Water Cartridge Filter



Technical specifications:

• Filter Material: Pleated Fiberglass, Pleated Deep Polypropylene (PP), MBPP

• Filtration precision: 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm.

• Gasket: silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber

• Center pole: polypropylene

• Support/Diversion Layer: Polypropylene (PP)

• Maximum pressure drop: pleated fiberglass 4.0bar, pleated deep polypropylene (PP) 3.4bar, MBPP 1.03bar

• Maximum temperature: wrinkled fiberglass 121℃, deeply wrinkled polypropylene (PP) 82℃, MBPP 65℃

• Recommended maximum filtered water flow rate: 660L/min for 20-inch filter, 1300L/min for 40-inch filter, 1900L/min for 60-inch filter

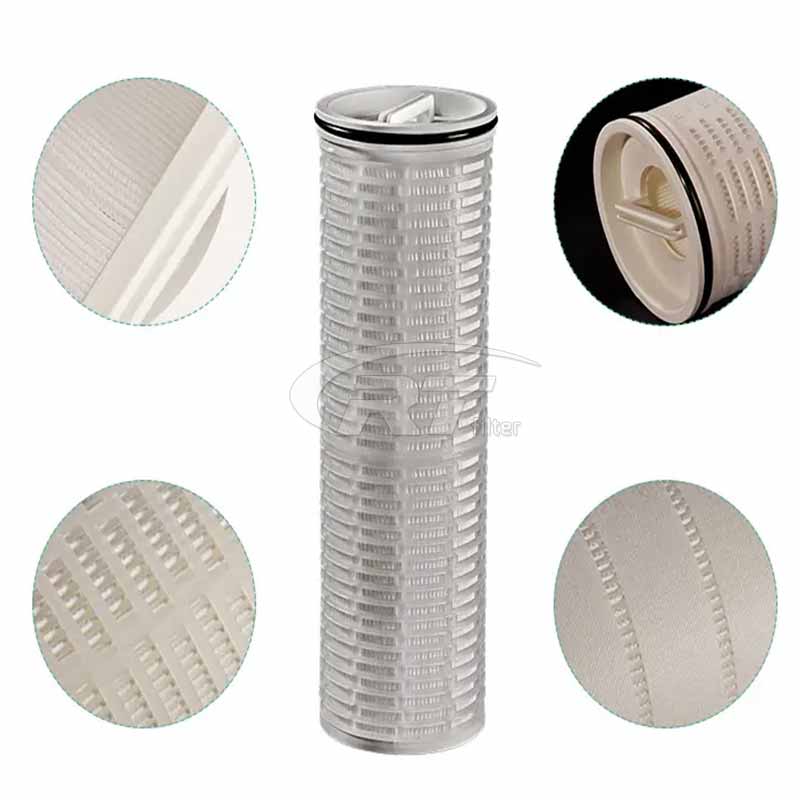

The filter material is as shown in the figure:

PFTM1-60U-HFH13U pall water cartridge filter structure adopts multi-layer stepped folding w-pleated corrugated shape UP media technology design to achieve the maximum processing capacity of pollutants and excellent pollutant absorption capacity and interception efficiency, ensuring that the required filtration cleaning standards are meet.

....PFTM1-60U-HFH13U PP Series Water Cartridge Filter



Test Standard:

ISO 16889------Multi-pass Performance Testing

ISO 3968------Pressure Drop vs. Flow Rate

ISO 3724------Flow Fatigue Characteristics

ISO 2943------Material Compatibility with Fluids

ISO 2942------Fabrication & Integrity Test

ISO 2941------Collapse & Burst Resistant


PartnerFilter also offers a full range of replacement filter elements:

Parker

3M

Pentair

Peco


Related Specification Filters

More PFTM1-60U-HFH13U pall PP Series Water Cartridge Filter:

PFTM3-40U-HFJ PFTM3-60U-HFH13 PFTM3-60U-HFH13U PFTM3-60U-HFH PFTM3-60U-HFHU PFTM3-40U-HFH13
PFTM1-60U-HFH PFTM1-60U-HFHU PFTM1-60U-HFJ PFTM3-20U-HFH13 PFTM3-20U-HFH13U PFTM3-20U-HFH
PFTM1-40U-HFH13U PFTM1-40U-HFH PFTM1-40U-HFHU PFTM1-40U-HFJ PFTM1-60U-HFH13 PFTM1-60U-HFH13U
PFTM1-20U-HFH13 PFTM1-20U-HFH13U PFTM1-20U-HFH PFTM1-20U-HFHU PFTM1-20U-HFJ PFTM1-40U-HFH13
PFTM3-20U-HFHU PFTM3-20U-HFJ PFTM3-40U-HFH13 PFTM3-40U-HFH13U PFTM3-40U-HFH PFTM3-40U-HFHU
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
