HFU660UY100H High Flow Industrial Water Filter Element

Prev: No more Next: Parker Replacement BPS-304-CAS Final microbial stabilization
HFU660UY100H High Flow Industrial Water Filter Element

Brand: PartnerFilter

Model: HFU660UY100H

Filter Type: Ultipleat High Flow Filter

Length: 1016 mm

Outer diameter: 152 mm

Max Work Pressure: 2.4 bar

Support Mesh and Outer Wrap: Polypropylene

O-ring Seal: Ethylene Propylene Rubber

Filter Medium: Polypropylene

End Caps and Handle: Polypropylene (10% glass fiber reinforced)

Series: HFU640UY700J, HFU660UY100HW, HFU660UY200H13, HFU660UY045H more

Ultipleat high flow filter element HFU660UY100H is designed for cost-effective highly efficient particle filtration in high flow rate food and beverage applications with pleated polypropylene depth structure60inch long and 10µm filter grade.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

HFU660UY100H multipurpose water filter is designed for high flow rates of up to 113 m3/h (500 US gal/min) in a single 1524 mm (60 in) cartridge.

The HFU660UY100H Ultiplat high Flow element is a large-diameter, single-opening, pleated filter element with an inside-out flow pattern and coreless construction. It makes use of contoured UP media with unique pleated geometry. The filter's unique pleated geometry, combined with its large diameter, means that fewer filters are required for a given flow rate compared to standard diameter filters. Filter containers are correspondingly smaller, which reduces capital and installation costs, and reduces operating costs.


Product features:

• Filtration system size can be reduced by 50% in maximum.

• The structure of gradual aperture.

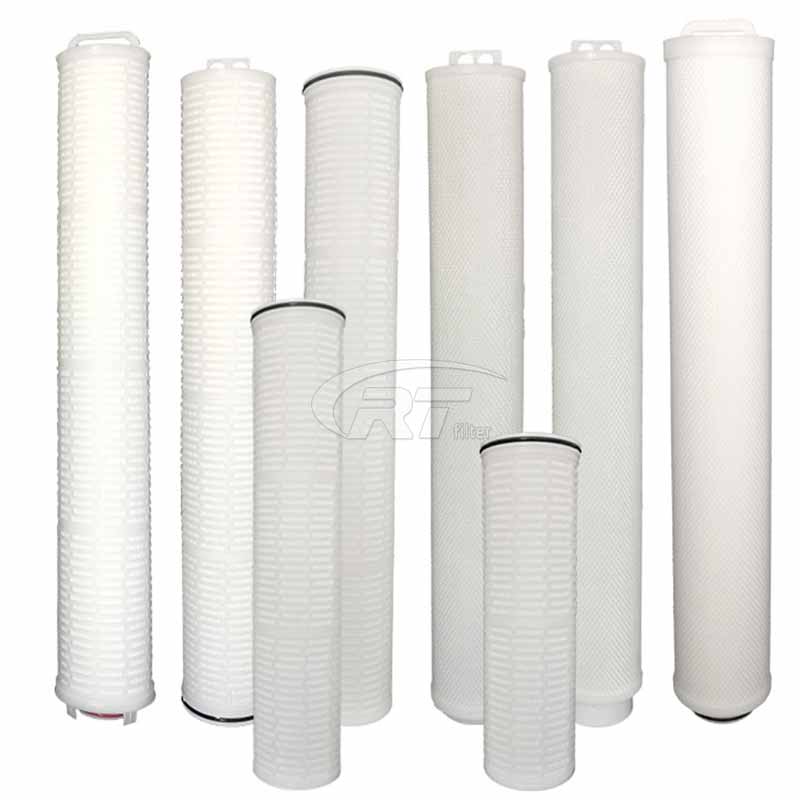

• Filters with the length of 20", 40" and 60" can be offered.

• Inside-out directions guarantee all impurities to be left inside the filters.

• Maximum flow of one filter can be up to 110m³/h during the water filtering.

Our Manufactured HFU660UY100H high flow filter cartridge has the characteristics of high flow, strong and durable.

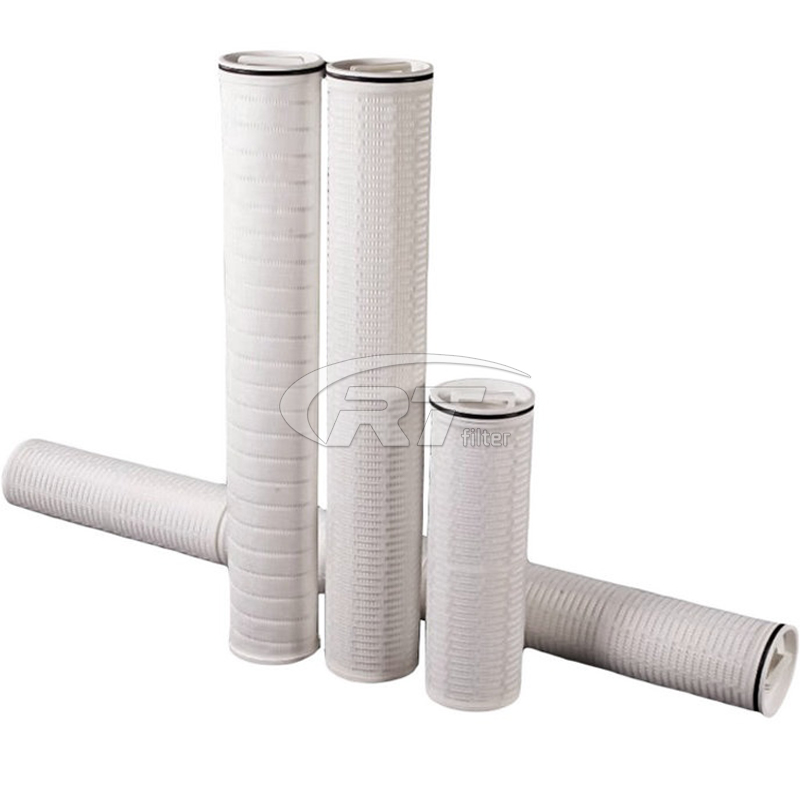

...HFU660UY100H High Flow Industrial Water Filter Element



Technical specifications:

1. Parts materials:

Supporting/diversion layer: polypropylene (PP)

Filter material: pleated fiberglass pleated deep polypropylene (PP) MBPP

Sealing material: EPR BNR

End caps: reinforced polypropylene with fiberglass

Our Manufactured HFU660UY100H high flow filter cartridge uses high-quality environmentally friendly materials and has better filtration effect

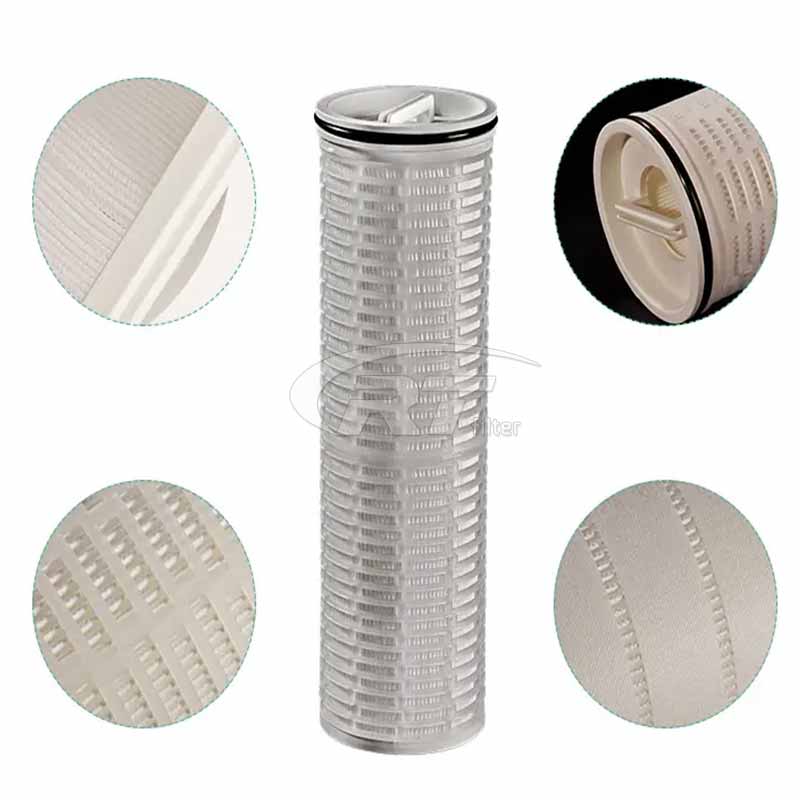

HFU660UY100H High Flow Industrial Water Filter Element


2. Filter size:

• OD: 6 inches (152 mm)

• Length: 20 inches (528 mm) 40 inches (1022 mm) 60 inches (1538 mm)


3. Performance:

• FMaximum pressure drop: 3.4bar for pleated fiberglass 3.4bar for pleated deep polypropylene (PP) 1.03bar for MBPP

• Recommended maximum filtering water flow: 660L/min for 20inch filter 1300L/min for 40inch filter 1900L/min for 60inch filter

• Filtering accuracy: 1micron 4.5micron 6micron 10micron 20micron 40micron 70micron 100micron

• Recommended pressure drop for filter replacement: 2.4bar 20℃

• Highest operating temperature: 121℃ for pleated fiberglass 82℃ for pleated deep polypropylene (PP) 65℃ for MBPP


Application fields:

• Painting, petrochemical industry

• Filtration of bulk drug, solvent and water in bio-pharmacy industry

• RO cartridge filtration and seawater desalination pretreatment

• Micro-electronics, film, fiber, resin

• Filtration of condensed water in power plants

• Filtration of bottled water,liquid glucose,edible oil,juice,soft drink and milk



Related Specification Filters
HFU660UY700H13 HFU620CAS010JUW HFU640UY045H13 HFU640UY700J HFU660UY400J
HFU660UY200H4W HFU660UY400H13 HFU640CAS010JUW HFU660UY700H13W HFU640UY200J
HFU660UY100H4W HFU660UY100HW HFU660UY200H13 HFU660UY1000H1 HFU660UY1000H4W
HFU660UY1000HW HFU660UY100H13 HFU660UY045HW HFU660UY045J HFU660UY060H
HFU660GF050H13 HFU660UY045H HFU660UY045H1 HFU660UY045H13 HFU620GF100H13
HFU660UY020J HFU640UY045J HFU660GF100H13 HFU640GF200H13 HFU660UY045H13W
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
