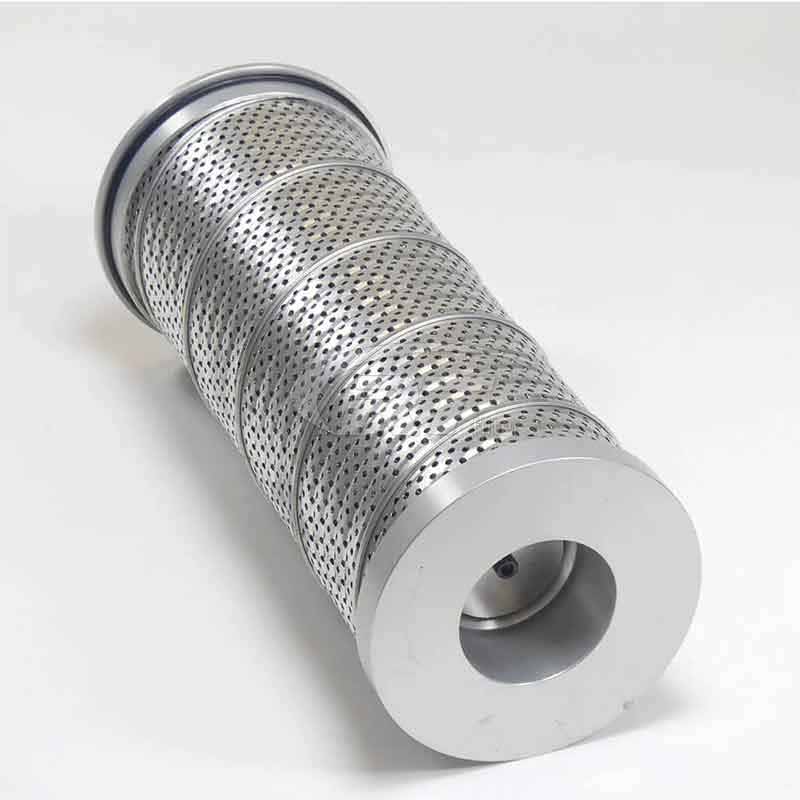

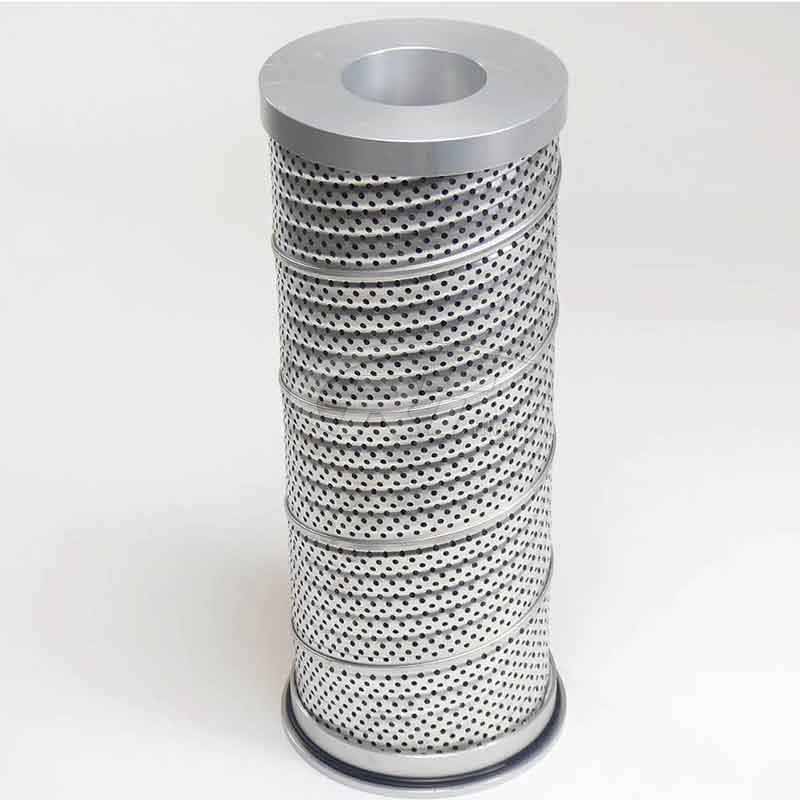

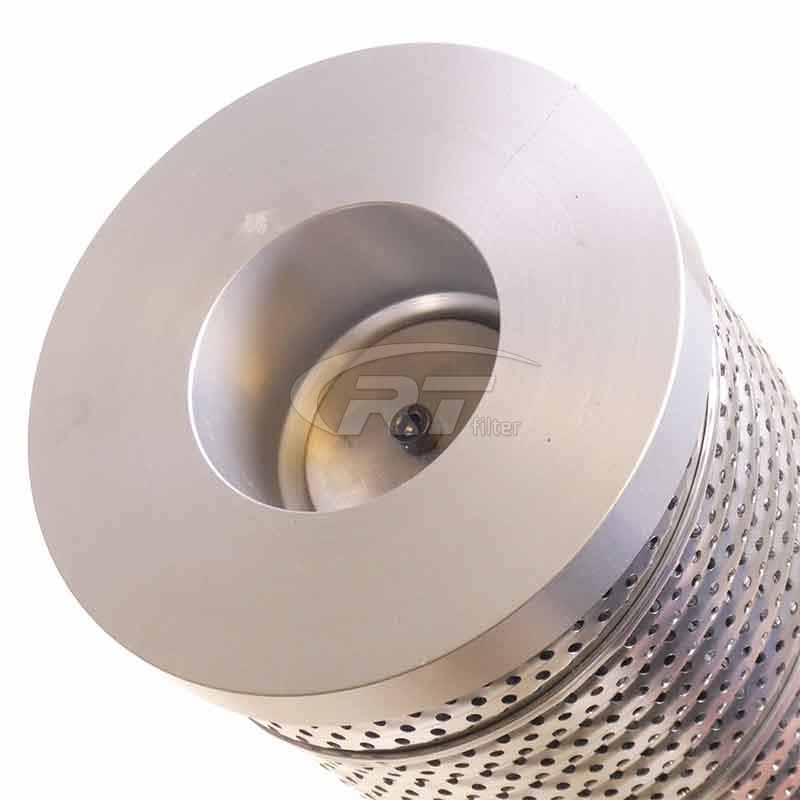

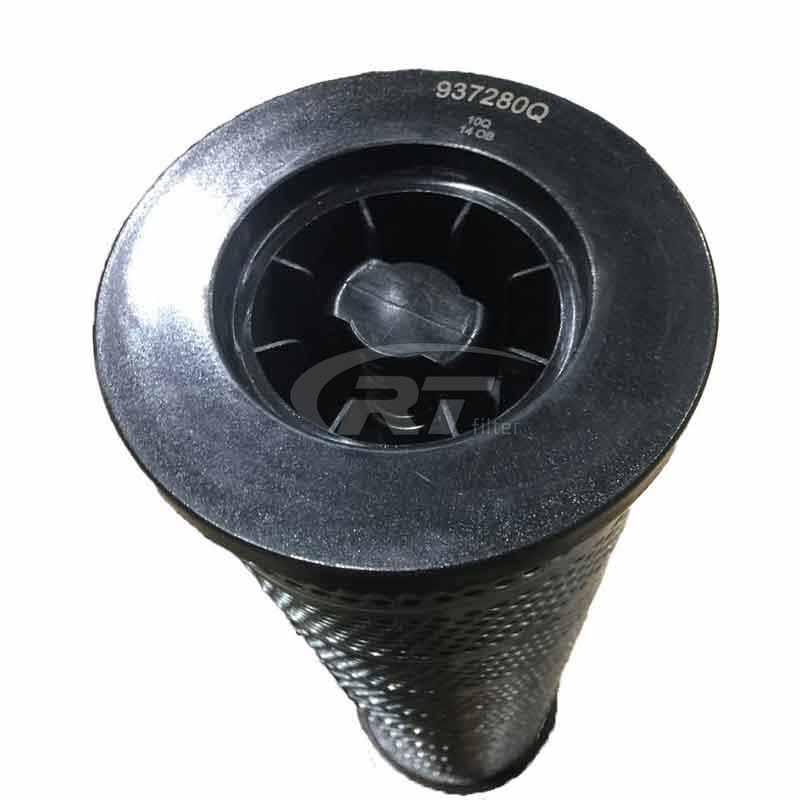

937280Q Parker Hydraulic In-tank Return Filter Element
Brand:PartnerFilter
Model: 937280Q
Type: Parker Hydraulic Oil Filter Cartridge
Seal: Viton
Bypass Setting: 25 psid
Collapse: 100 psid
Filter material: Fiberglass
Sizes: OD4.893”*L19.899”
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
937280Q parker oil filter cartridge is used for Pressure Filters replacement.PartnerFilter filter range offers a large selection of pressure filterssuction filtersreturn-line filtersspin-on filters as well as replacement filter elements for hydraulic oils and lubricating oils.
937280Q oil filter cartridge is PartnerFilter hydraulic in-tank return replacement filter element with high performance synthetic media provide dependable protection and reliable quality.It is manufactured,tested and proven to perform,designed to deliver required cleanliness while optimizing dirt capacity.With lower pressure drop and greater efficiency,it ensures cleaner fluid,longer filter life and better protection for your equipment.
937280Q Oil Filter Performance:
Today’s industrial and mobile hydraulics require elements that deliver specified cleanliness under all circumstances.PartnerFilter high performance synthetic media filters provide dependable protection and reliable quality.It is manufactured,tested and proven to perform under the most severe conditions and are designed to deliver the quality and value that helps keep equipment running.

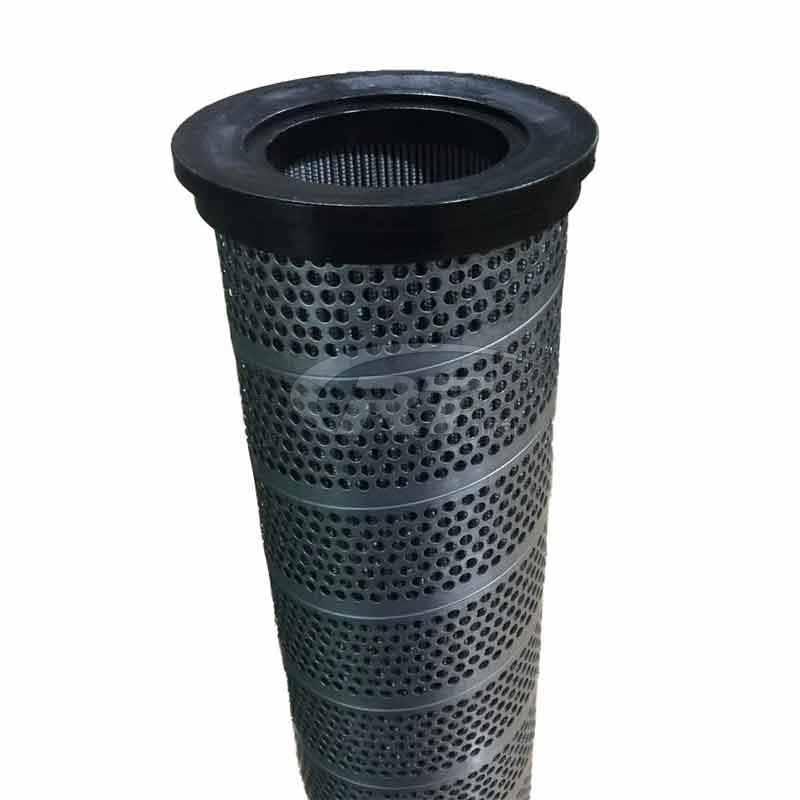

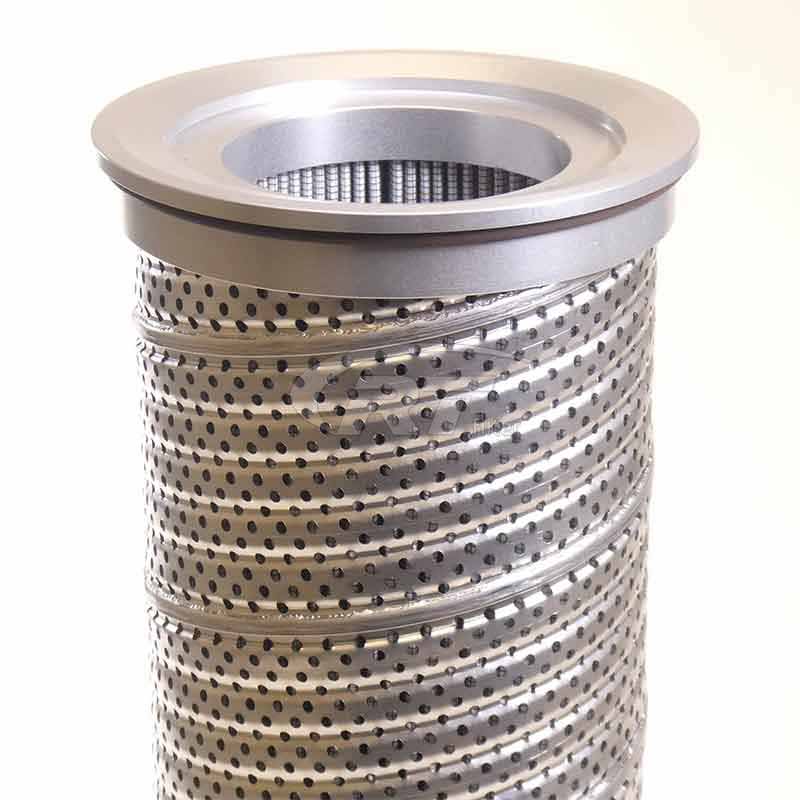

PartnerFilter also makes replacement with different end caps material as below:
937280Q Test standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
PartnerFilter also offers a full range of replacement filter elements. They meet quality requirements and can be installed in the following products:
ARGO
DONALDSON
EPPENSTEINER
FILTREC
HYDAC
HY-PRO
INTERNORMEN
LEMMIN
MANN
MAHLE
MP-FILTRI
PALL
PARKER
REXORTH
STAUFF
TAISEI KOGYO
VICKERS
Other types are available on request
Related Specification Filters
Parker and Donaldson Interchange:
βx(c)=1000
Parker P/N.
Donaldson P/N.
βx(c)=1000
Parker P/N.
Donaldson P/N.
5µm
936972Q;937274Q
P581951*
5µm
936976Q;937278Q
P581956*
8µm
936973Q;937275Q
P581952*
8µm
936977Q;937279Q
P581957*
12µm
936974Q;937276Q
P581953*
12µm
936978Q;937280Q
P581958
23µm
936975Q; 937277Q
P581954*
23µm
936979Q;937281Q
P581959*
Water Absorbing
937260
P581955
Water Absorbing
937261
P581960*
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
