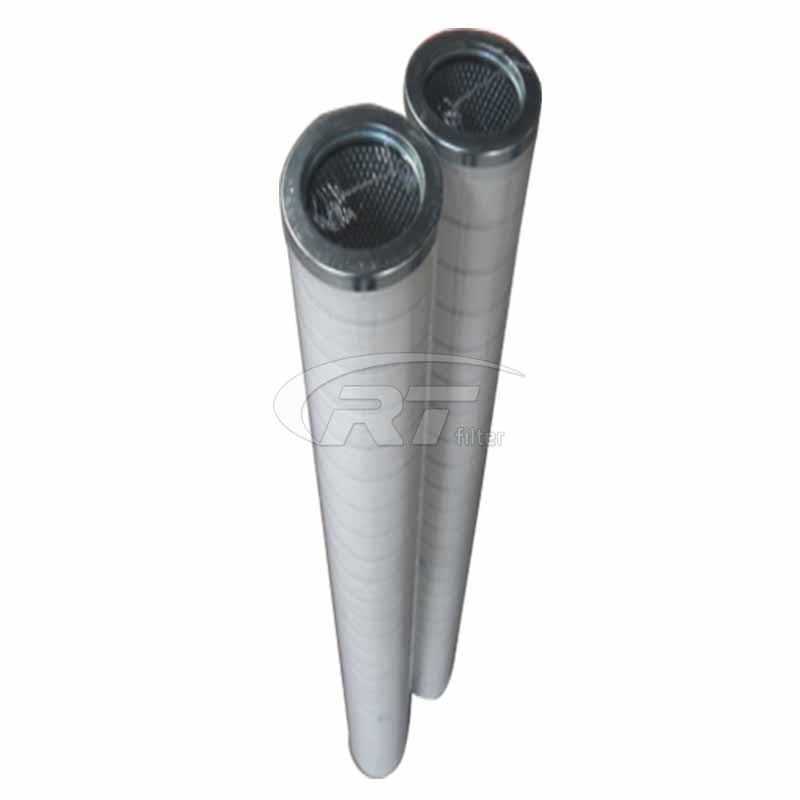

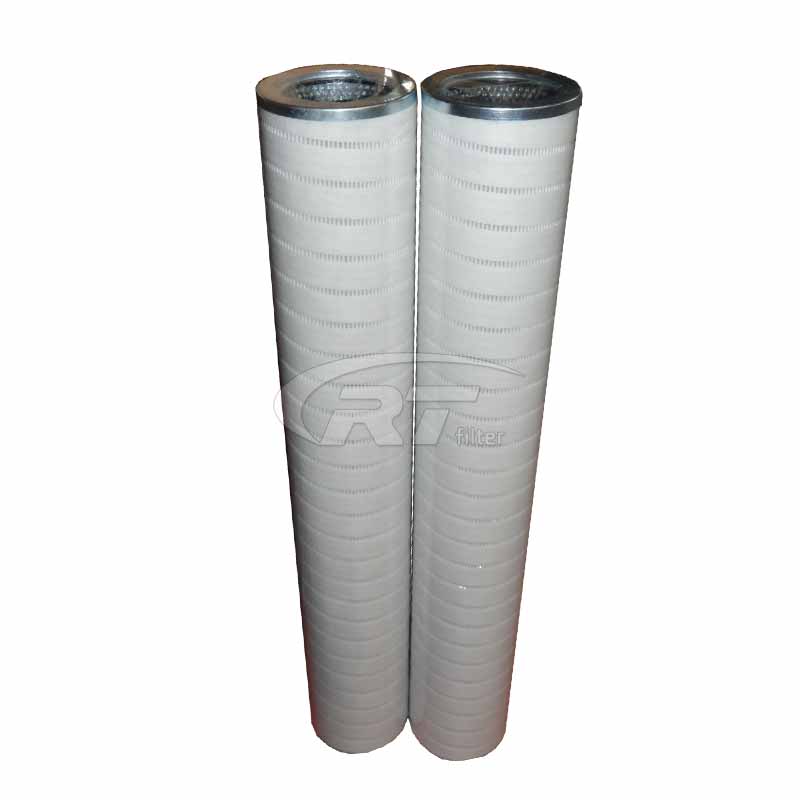

HC8300FKN39H return filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.
Performance parameters:
Our manufactured HC8300FKN39H hydac oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.It’s a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,ensuring smoother operation.
Item
Value
Filtration accuracy.....
6μm
Collapse....
20bar
Sizes
OD5.97*L38.6”
Filter Material
Fiberglass
Gasket
Buna O-Ring
End Cap
Corrosion Resistant Steel.....
Center Tube
Corrosion Resistant Steel
Quality advantage:
We make HC8300FKN39H oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
Application:
HC8300FKN39H oil filter element can be used for filtering hydraulic fluid,water glycols,diesel,machining fluids,lubricating oil,coolants,gasoline,process fluids,turbine and compressor lube oils,synthetic lubricants,and many more chemicals.
Test standards:
Before delivery, Our manufactured HC8300FKN39H oil filter will be tested and follow the standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Related Specification Filters
Material:Fiberglass
End Cap:Corrosion Resistant CS/AL
Filtration accuracy:6μm
Flow Direction: Out/In
Collapse:20bar
Gasket:Buna O-Ring
Sizes:OD5.97*L38.6”
Code
Beta
Micron(㎛)
Z
β2.5≥1000
1
P
β5≥1000
3
N
β7≥1000
6
S
β12≥1000
10
T
β22≥1000
25
Hot sales filters code number:
HC8300FKS8H
HC8300FKS16H
HC8300FKS26H
HC8300FKS39H
HC8304FKS16H
HC8304FKS20H
HC8304FKS39H
HC8314FKS16H
HC8314FKS39H
HC8400FKS16H
HC8400FKS26H
HC8400FKS39H
HC8700FKS4H
HC8700FKS8H
HC8900FKS8H
HC8900FKS13H
HC8900FKS16H
HC8900FKS26H
HC8900FKS39H
HC8904FKS13H
HC8904FKS16H
HC8904FKS26H
HC8904FKS39H
HC8904FKS8H
HC9020FKS4H
HC9020FKS8H
HC9021FKS4H
HC9021FKS8H
HC9100FKS4H
HC9100FKS8H
HC9100FKS13H
HC9400FKS13H
HC9400FKS26H
HC9400FKS39H
HC9600FKS4H
HC9600FKS8H
HC9600FKS13H
HC9600FKS16H
HC9800FKS4H
HC9800FKS8H
HC9800FKS13H
HC6200FKS16H
HC6200FKS4H
UE319AT08H
UE319AT13H
UE319AT20H
UE319AT40H
UE619AN20Z
UE619AN40Z
UE319AT08Z
UE319AT13Z
UE319AT20Z
UE319AT40Z
UE619AN40H
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
