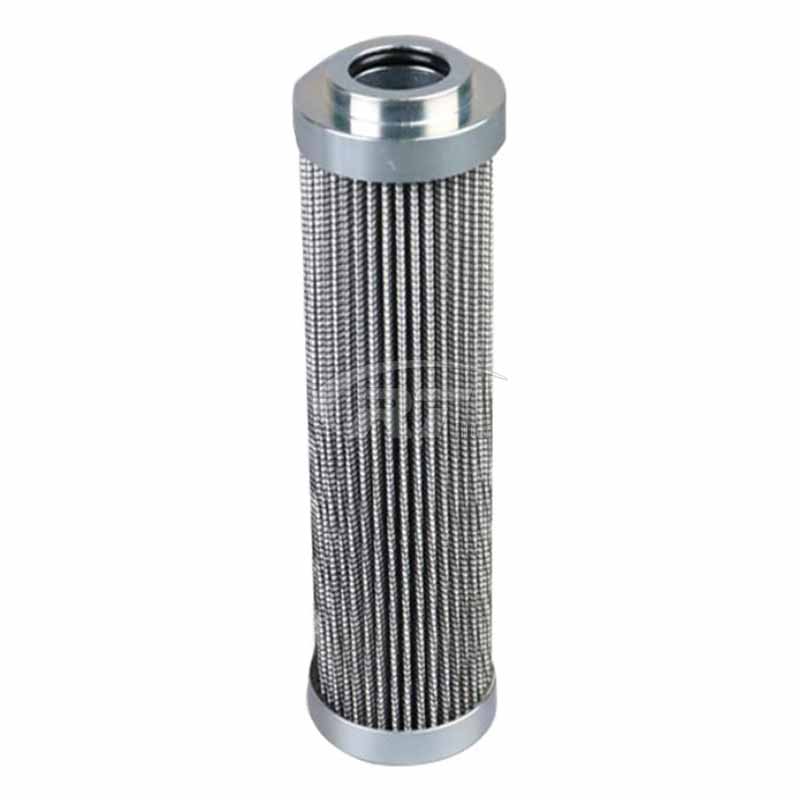

0140D005BH4HC Hydac High Pressure Filter Element Replacement

Prev: HP3202A05HA MP-FILTRI Replacement High Pressure Filter Next: 1300R003ON Hydac ON series hydraulic oil filter cartridge
0140D005BH4HC Hydac High Pressure Filter Element Replacement

Brand:PartnerFilter

Model: 0140D005BH4HC

Type: Hydraulic Oil Filter Element

Filter material: Fiberglass

Seal: Buna (Nitrile)

Filtration accuracy: 5μm

Operating pressure: 3000 psid

Sizes: OD1.875”*L7.61”

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

PartnerFilter makes 0140D005BH4HC hydraulic oil filter replacement with high pressure resistant support material and 5μm fiberglass filtration materialit’s a hydraulic pipeline oil filter elementand plays an extremely important role in cleaning of kinds of oil system and ensuring smooth operation.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

PartnerFilter makes 0140D005BH4HC hydraulic oil filter replacement with high pressure resistant support material and 5μm fiberglass filtration material,it’s a hydraulic pipeline oil filter element,and plays an extremely important role in cleaning of kinds of oil system and ensuring smooth operation.Therefore,high quality control and excellent filtration performance are sought in components that are critical to dust control.


Performance parameters:

Our Manufactured 0140D005BH4HC hydac oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.It’s a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,ensuring smoother operation.

ItemValue
Filtration accuracy.....5μm
Operating pressure....3000 psid
SizesOD1.875”*L7.61”
Filter MaterialFiberglass
SealBuna (Nitrile)
End CapCorrosion Resistant Steel.....
Center TubeCorrosion Resistant Steel


Quality advantage:

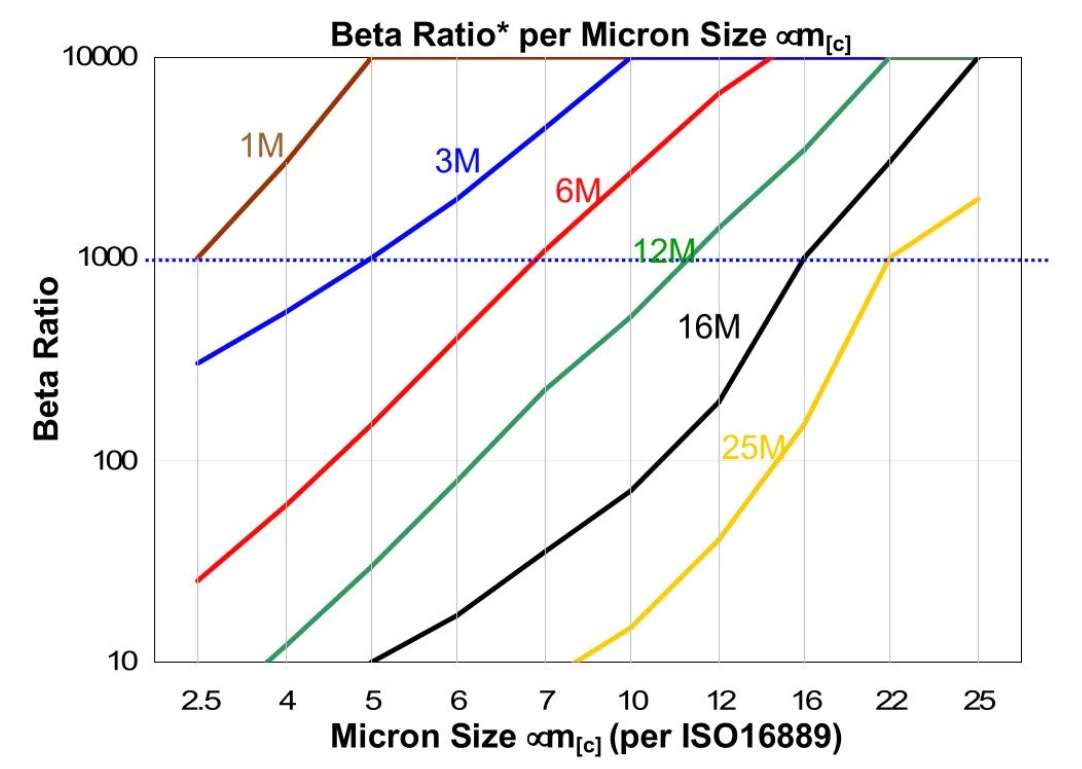

We make 0140D005BH4HC oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

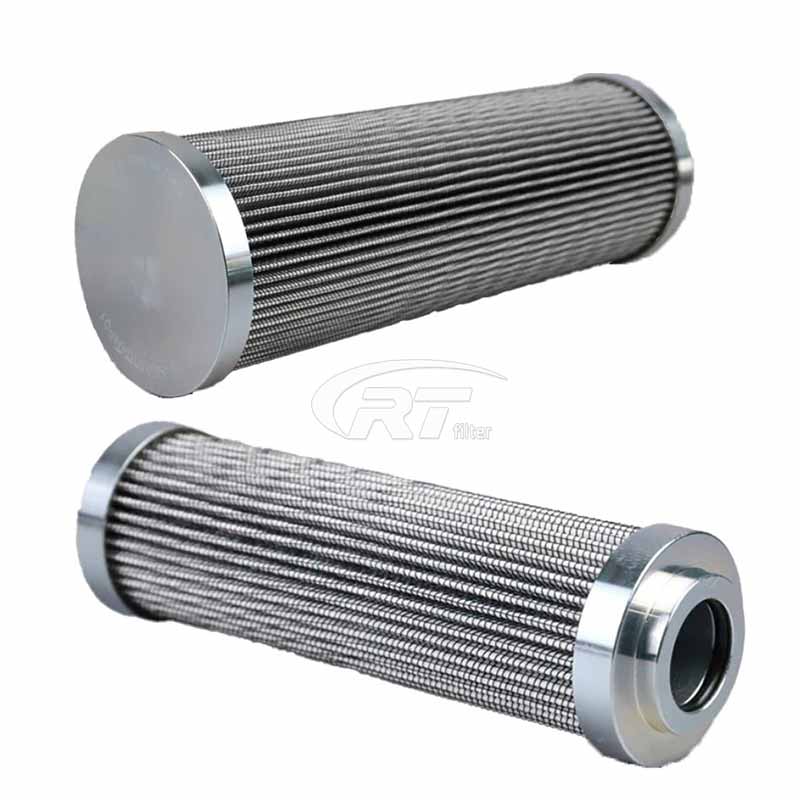

0140D005BH4HC Hydac High Pressure Filter Element Replacement


0140D005BH4HC Oil Filter Clean:

The 0140D005BH4HC hydraulic oil filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.

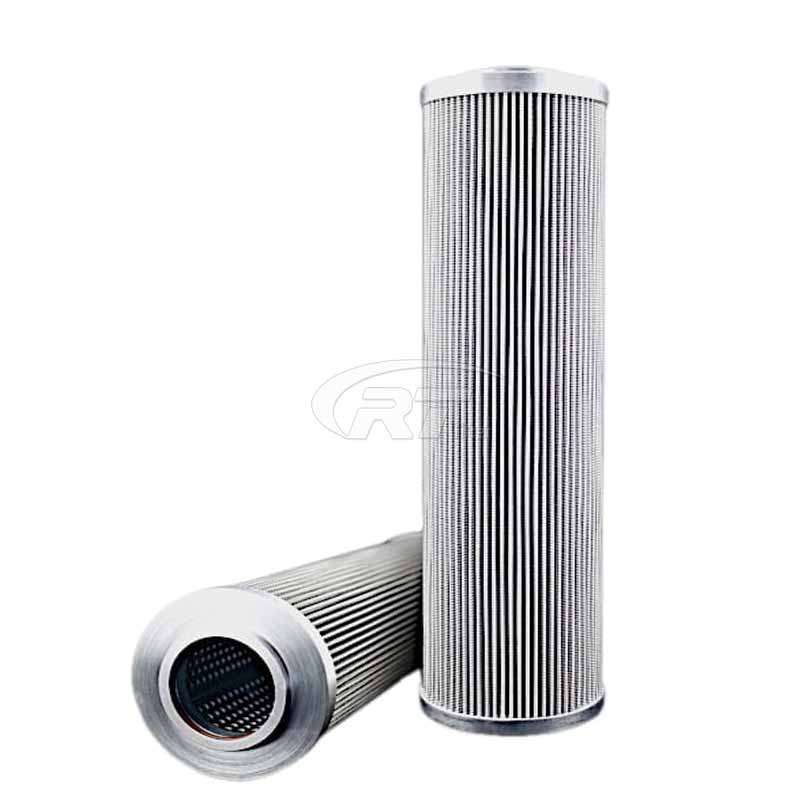

 0140D005BH4HC Hydac High Pressure Filter Element Replacement

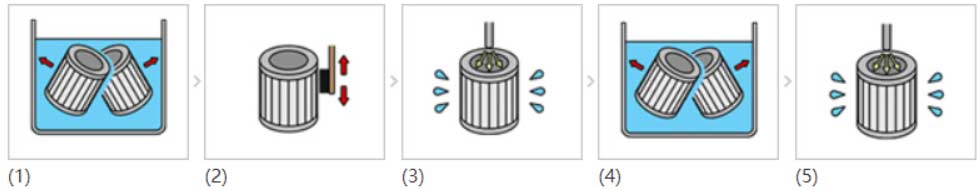

(1) Dip the filter element in light oil and rotate thoroughly.(2)Clean off dirt by scrubbing the element with a brush parallel to the pleats.(3)Clean off dirt with an air spray gun.(4)Rinse well.(5)Dry using an air spray gun.


Application:

0140D005BH4HC oil hydraulic filter can be used for filtering hydraulic fluid,widely used for filtration of hydroethylene glycol,diesel,machining fluids,lubricating oil,coolants,gasoline,process fluids,turbine and compressor lube oils,synthetic lubricants,and many more chemicals,steel plant,power plant and other related industries.


Test standards:

Before delivery, Our manufactured 0140D005BH4HC oil hydraulic filter will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Related Specification Filters

Hot sales filters code number:

0030D010BN4HC 0060D010BN4HC 0110D010BN4HC 0140D010BN4HC 0160D010BN4HC 0240D010BN4HC
0330D010BN4HC 0500D010BN4HC 0660D010BN4HC 0990D010BN4HC 1320D010BN4HC 0040DN010BN4HC
0160DN010BN4HC 0250DN010BN4HC 0400DN010BN4HC 0630DN010BN4HC 0660R010BN4HC 0075R010BN4HC
0110R010BN4HC 0160R010BN4HC 0165R010BN4HC 0240R010BN4HC 0330R010BN4HC 0500R010BN4HC
0660R010BN4HC 0850R010BN4HC 0950R010BN4HC 1300R010BN4HC 1700R010BN4HC 2600R010BN4HC
1000RN010BN4HC 0030D010BH4HC 0060D010BH4HC 0110D010BH4HC 0140D010BH4HC 0160D010BH4HC
0240D010BH4HC 0280D010BH4HC 0330D010BH4HC 0500D010BH4HC 0660D010BH4HC 0990D010BH4HC
1320D010BH4HC 0040DN010BH4HC 0160DN010BH4HC 0250DN010BH4HC 0400DN010BH4HC 0630DN010BH4HC
0660R010BH4HC 0075R010BH4HC 0110R010BH4HC 0160R010BH4HC 0165R010BH4HC 0240R010BH4HC
0330R010BH4HC 0500R010BH4HC 0660R010BH4HC 0850R010BH4HC 0950R010BH4HC 1300R010BH4HC
1700R010BH4HC 2600R010BH4HC 1000RN010BH4HC 0030D010W/HC 0060D010W/HC 0110D010W/HC
0140D010W/HC 0160D010W/HC 0240D010W/HC 0280D010W/HC 0330D010W/HC 0500D010W/HC
0660D010W/HC 0990D010W/HC 1320D010W/HC 0040DN010W/HC 0160DN010W/HC 0250DN010W/HC
0400DN010W/HC 0630DN010W/HC 0660R010W/HC 0075R010W/HC 0110R010W/HC 0160R010W/HC
0165R010W/HC 0240R010W/HC 0330R010W/HC 0500R010W/HC 0660R010W/HC 0850R010W/HC
0950R010W/HC 1300R010W/HC 1700R010W/HC 2600R010W/HC 1000RN010W/HC
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

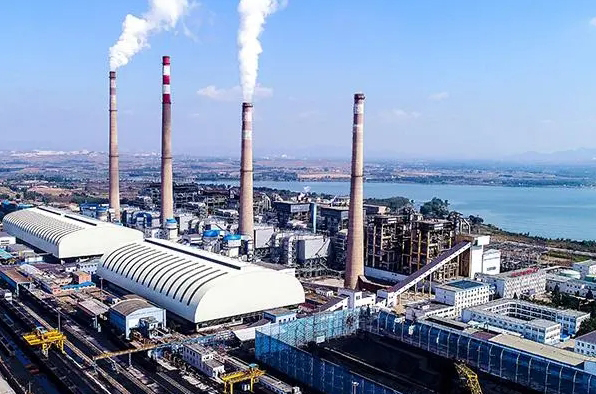

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

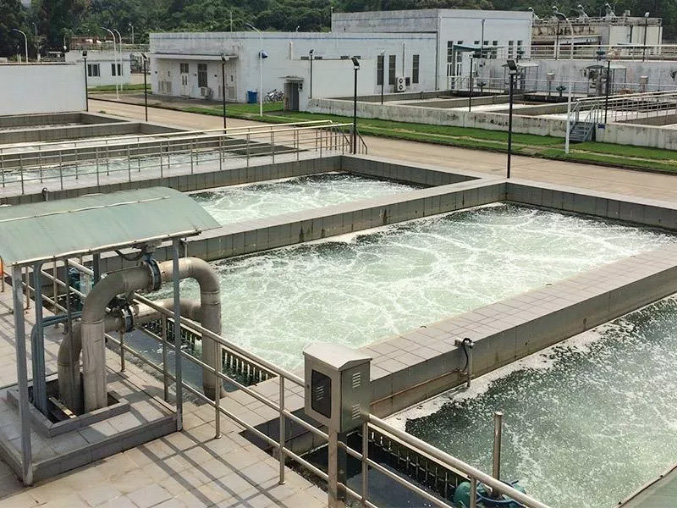

Industrial Wastewater Filtration
