ARS-290-RF BEA Coalescing Filter Element Replacement

Prev: 3050A Zander Replacement Compressed Air Filter Element Next: AMH-EL250 SMC Replacement Filter Element For AMH250 Micro-Mi

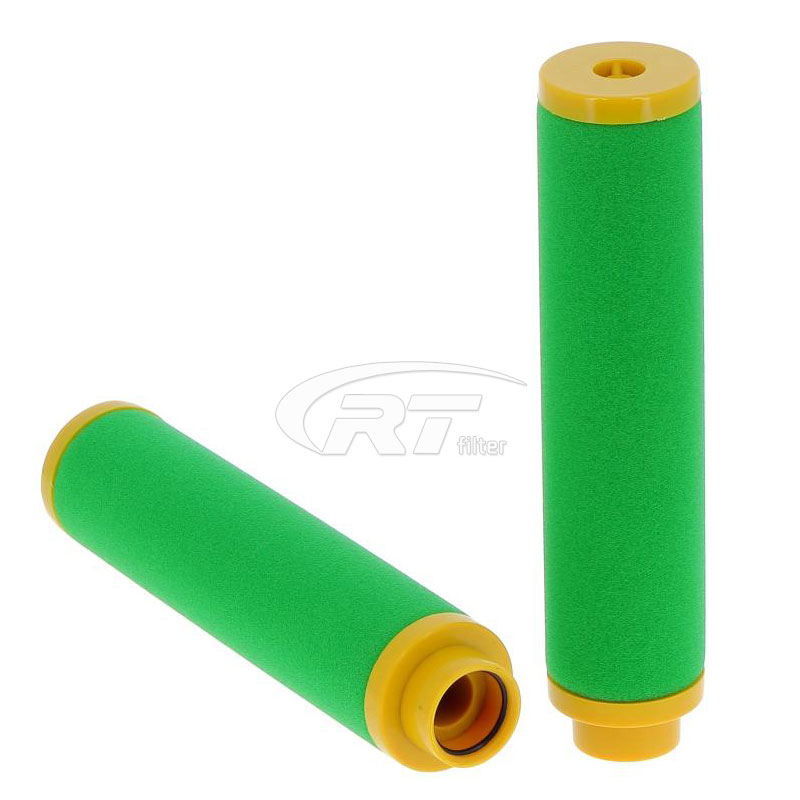

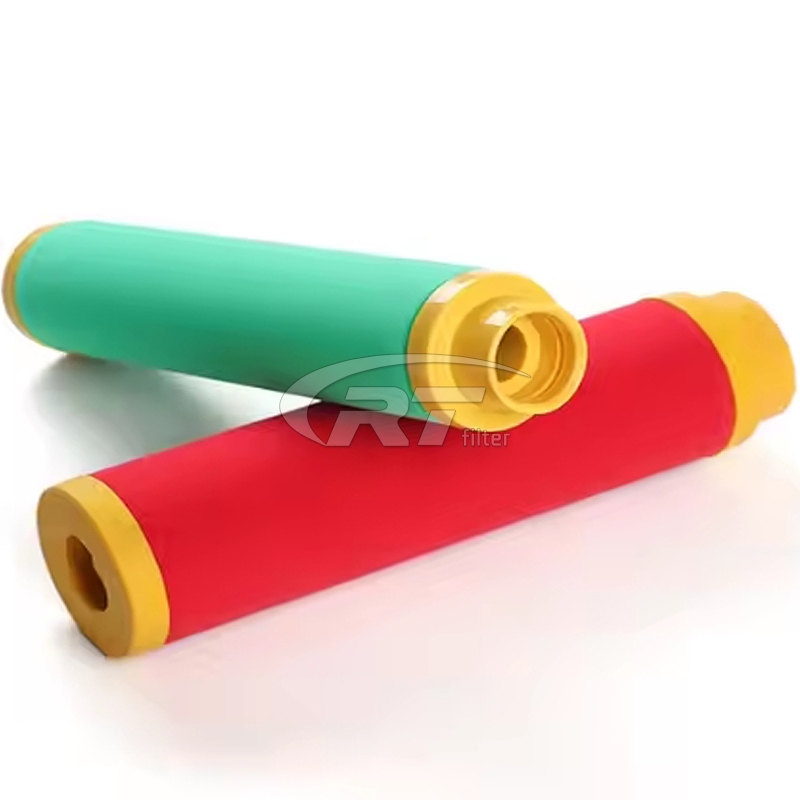

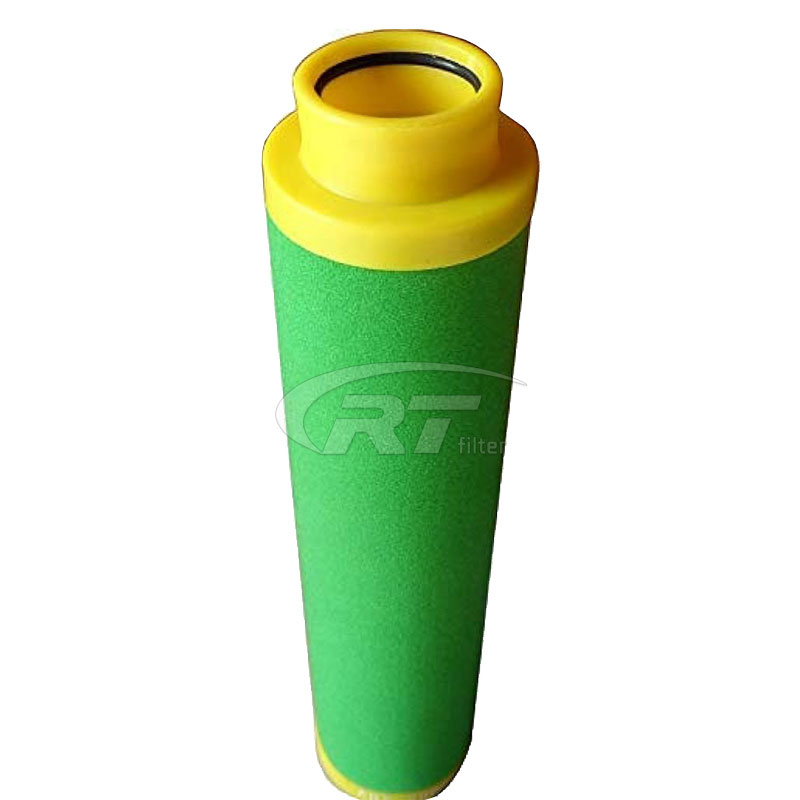

ARS-290-RF BEA Coalescing Filter Element Replacement

Brand:PartnerFilter

Model:ARS-290-RF

Seal:Viton

Micron:1 µm

Differential Pressure:20 mbar

Sizes:OD2.32”*L9.84”

Max. Working Temp.:65 °C

Mini. Working temp.:1.5 °C

Flow direction:Inside to outside

Series:ARS-460 ARS-610 ARS-930 more

ARS-290-RF filter element has been developed for high efficient removal of solid particlesoil aerosols waterhydrocarbonsvapours and odours from compressed air.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Brief Introduction:

ARS-290-RF compressed air filter element has been developed for high efficient removal of solid particles,oil aerosols,water,hydrocarbons,vapours and odours from compressed air.

 ARS-290-RF BEA Coalescing Filter Element Replacement

Features:

Air permeability—the filter element adopts American fiber filter material with strong hydrophobicity and oil repellency,and at the same time adopts a framework with good permeability and high strength to reduce the resistance caused by filtration.


High Efficiency━The filter element adopts German fine open-pore sponge,which can effectively prevent oil and water from being entrained by high-speed airflow,so that the filtered fine oil droplets gather at the lower end of the filter element sponge and drain to the bottom of the filter container.


Airtightness—the joint between the filter element and the filter housing adopts a reliable sealing ring to ensure that the airflow is not short-circuited and prevent impurities from directly entering the downstream without passing through the filter element.


Anti-corrosion - the filter element adopts anti-corrosion reinforced nylon end cover and anti-corrosion filter frame,which can be used in harsh working conditions.


More BEA Filters’ Technical Data:

Flow rate(NM3/min) Model
0.5ARS-30
1.7ARS-100
3ARS-180
4.8ARS-290
7.7ARS-460
10.2ARS-610
15.5ARS-930
17.5ARS-1050
23.3ARS-1400



 Series  Micron(μm) Oil Residue Component(ppm)
RB10.1
RA0.010.01
CA0.010.003
RF1Dedusting


PartnerFilter can provide filter elements compatible with various foreign and domestic brands of compressed air filter elements,including:

Hankison

Dominck Hunter

Ulrafiter

Hiross

SMC

Orion

Zander

Bea

Parker

Atlas Copco

Technolab

JM

MANN

Other types are available on request


Related Specification Filters
ARS-30RB ARS-30RA ARS-30CA ARS-30RF
ARS-100RA ARS-10OCA ARS-10ORF ARS-10ORB
ARS-18ORA ARS-18OCA ARS-180RF ARS-180RB
ARS-290RA ARS-290CA ARS-290RF ARS-290RB
ARS-46ORA ARS-460CA ARS-460RF ARS-46ORB
ARS-61ORA ARS-610CA ARS-610RF ARS-61ORB
ARS-930RB ARS-930RA ARS-930CA ARS-930RF
ARS-1050RB ARS-1050RA ARS-1050CA ARS-1050RF
ARS-140ORB ARS-1400RA ARS-140OCA ARS-140ORF
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
