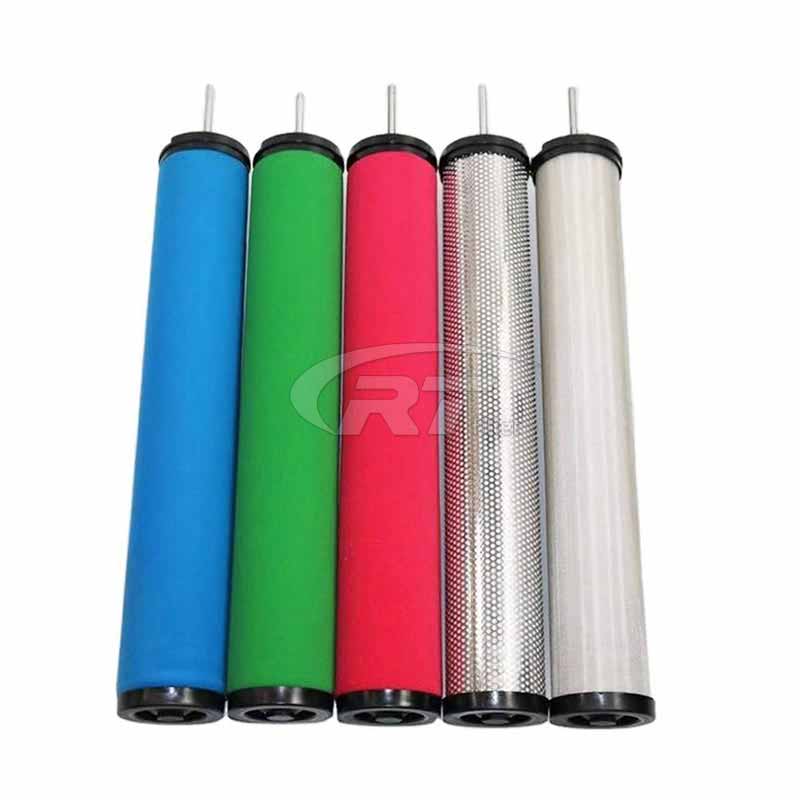

E5-40 E9-40 Hankison Compressed Air Filter Element

Prev: K620AO DOMNICK HUNTER compressed air filter element Next: PD520 (2901-2004-10) Atlas Compressed Air Filter Element
E5-40 E9-40 Hankison Compressed Air Filter Element

Brand:PartnerFilter

Model:E5-40 E9-40

Seal:Viton

Sizes:OD3.23”*L20.67”

Differential Pressure:50 mbar

Filter material:Borosilicate micro glass fibre

Product Net Weight:0.81 Kg

Max. Working Temp.:65 °C

Mini. Working temp.:1.5 °C

Series:E1-40 E3-40 E7-40 more

E5-40 E9-40 Hankison compressed air filter element is used to clean and filter oil and remove impurities, and the cleanliness effect is very good. The manufacturing materials use hydrophobic and oil-repellent fiber filter materials, reliable and anti-corrosion sealing rings, filter frames, nylon end caps, etc.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Brief Introduction:

E5-40 E9-40 Hankison compressed air filter element is used to clean and filter oil and remove impurities, and the cleanliness effect is very good. The manufacturing materials use hydrophobic and oil-repellent fiber filter materials, reliable and anti-corrosion sealing rings, filter frames, nylon end caps, etc.

E5-40 E9-40 is an important component of the compressed air system, and its application is becoming more and more common.

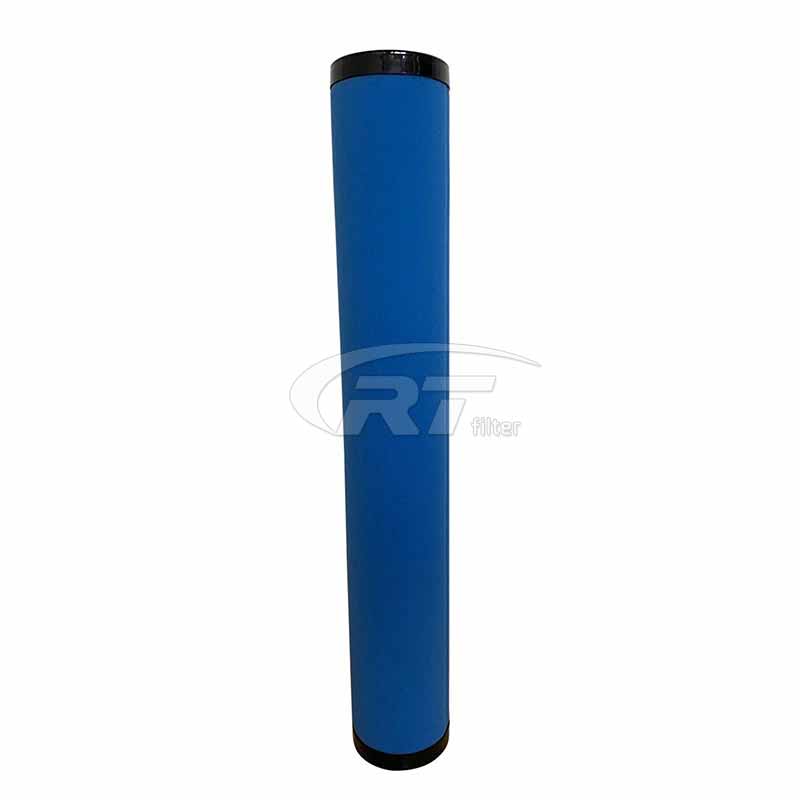

E5-40 E9-40 Hankison Compressed Air Filter Element

Working principle:

Diffusion deposition:due to Brownian motion, the movement track of each fine particle is inconsistent with the flow direction of compressed air.As the particle size decreases,the intensity of Brownian motion increases,the probability of collision between fine particles and fibers increases,and the effect of diffusion and deposition becomes stronger.

Direct Interception:This mechanism is related to the particle size.A particle is intercepted when the gap between the fibers is smaller than the diameter of the particle.

Inertial deposition:Streamlines bend as compressed air passes through the fibers.Due to inertia,the particles in the compressed air do not follow the curved streamline but are thrown onto the fibers and deposit there.Obviously, this inertial effect will be strengthened with the increase of particle size and the increase of compressed air flow rate.

Gravity deposition:All kinds of particles have a certain settling velocity due to the action of gravity.Therefore,the trajectory of the particles deviates from the streamline of the compressed air,and this deviation can cause the particles to hit the fibers.

Electrostatic deposition:Both particles and fibers may be charged,so particles can be deposited on fibers due to the force or induction between the charges.

Van der Waals deposition:When the distance between particles and fibers is small,van der Waals intermolecular forces can cause particle deposition.Due to the simultaneous action of the above several filtration mechanisms,the filtration efficiency of the fiber filter can reach more than 99%.


Features:

Air permeability—the filter element adopts American fiber filter material with strong hydrophobicity and oil repellency,and at the same time adopts a framework with good permeability and high strength to reduce the resistance caused by filtration.

High Efficiency━The filter element adopts German fine open-pore sponge,which can effectively prevent oil and water from being entrained by high-speed airflow,so that the filtered fine oil droplets gather at the lower end of the filter element sponge and drain to the bottom of the filter container.

Airtightness—the joint between the filter element and the filter housing adopts a reliable sealing ring to ensure that the airflow is not short-circuited and prevent impurities from directly entering the downstream without passing through the filter element.

Anti-corrosion - the filter element adopts anti-corrosion reinforced nylon end cover and anti-corrosion filter frame,which can be used in harsh working conditions.

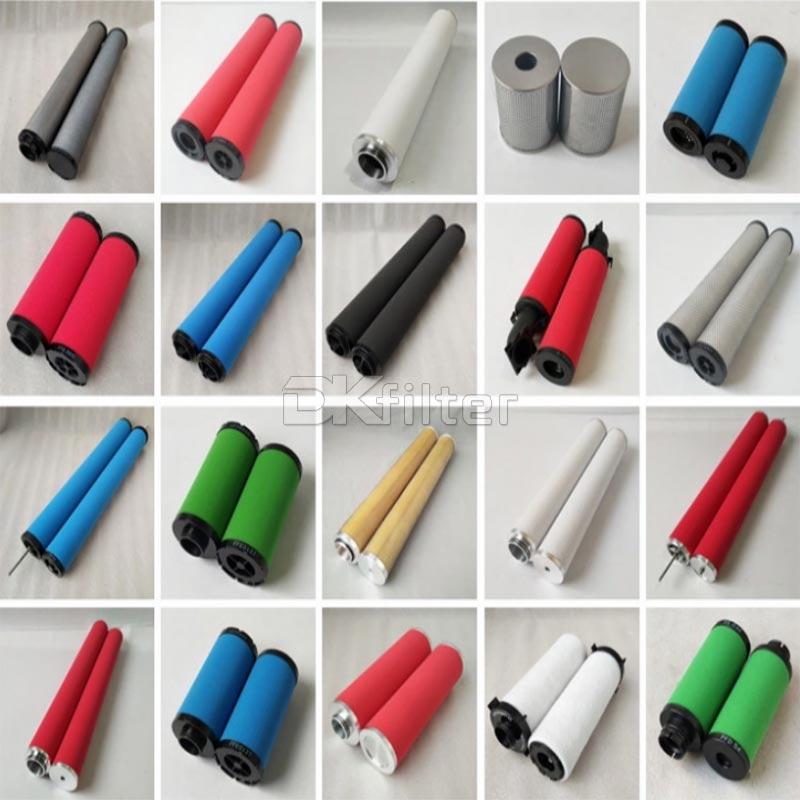

PartnerFilter can provide filter elements compatible with various foreign and domestic brands of

compressed air filters,including;Hankison,DH,ulrafiter,Hiross,SMC,orion,zander,Bea,parker,

Atlas,Technolab,JM, MANN, etc.


Technical Data:

SeriesMicron(um)Oil Residue Component(ppm)Function
E10.010.001Oil moving and deodorization
E30.010.001Super oil removal
E50.010.01High efficiency oil removal
E711Ventilation line filtration
E935Separation/Filtration



Related Specification Filters

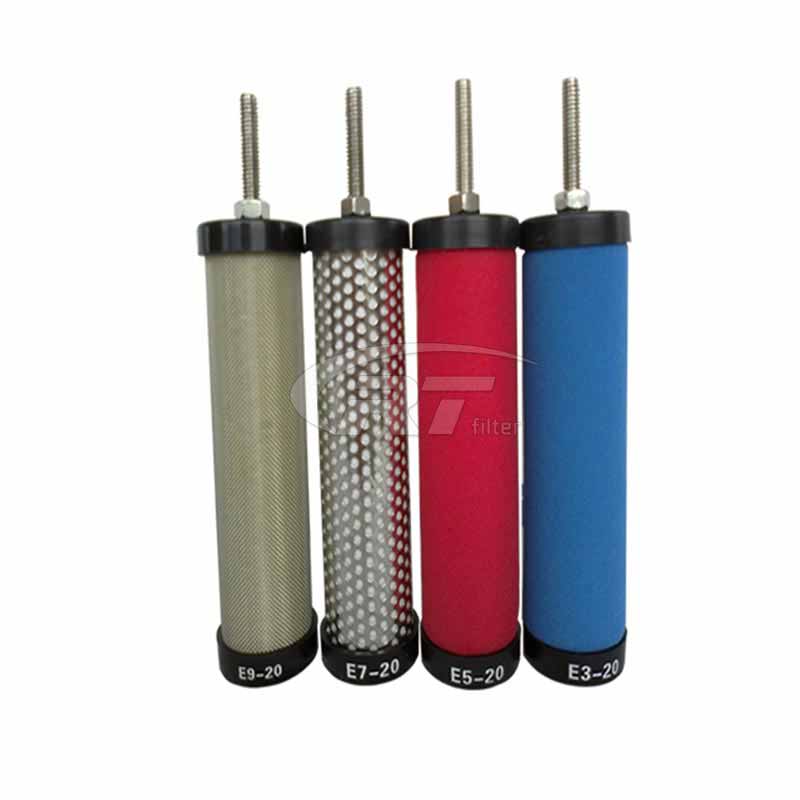

Flow rate(m/min) E1 Series E3 Series E5 Series E7 Series E9 Series
0.57 E1-12 E3-12 E5-12 E7-12 E9-12
1 E1-16 E3-16 E5-16 E7-16 E9-16
1.72 E1-20 E3-20 E5-20 E7-20 E9-20
2.9 E1-24 E3-24 E5-24 E7-24 E9-24
4.9 E1-28 E3-28 E5-28 E7-28 E9-28
7.2 E1-32 E3-32 E5-32 E7-32 E9-32
11 E1-36 E3-36 E5-36 E7-36 E9-36
14 E1-40 E3-40 E5-40 E7-40 E9-40
18 E1-44 E3-44 E5-44 E7-44 E9-44
22 E1-48 E3-48 E5-48 E7-48 E9-48
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

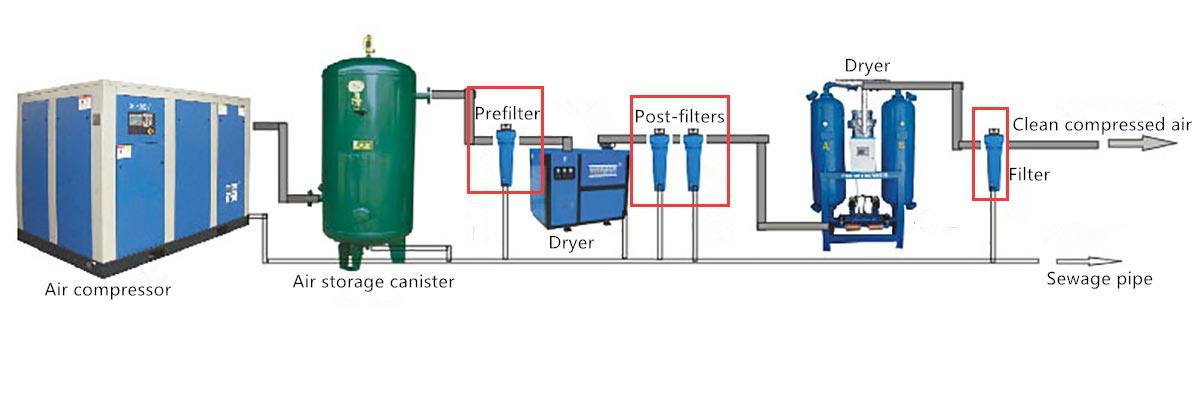

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
