Facet ST643FF-5 Oil and Gas Separator Cartridge

Prev: FO718PL25 Pleated Media Filter Cartridges and Coalescer Next: Velcon System Superdri Cartridges SD-718 replacement

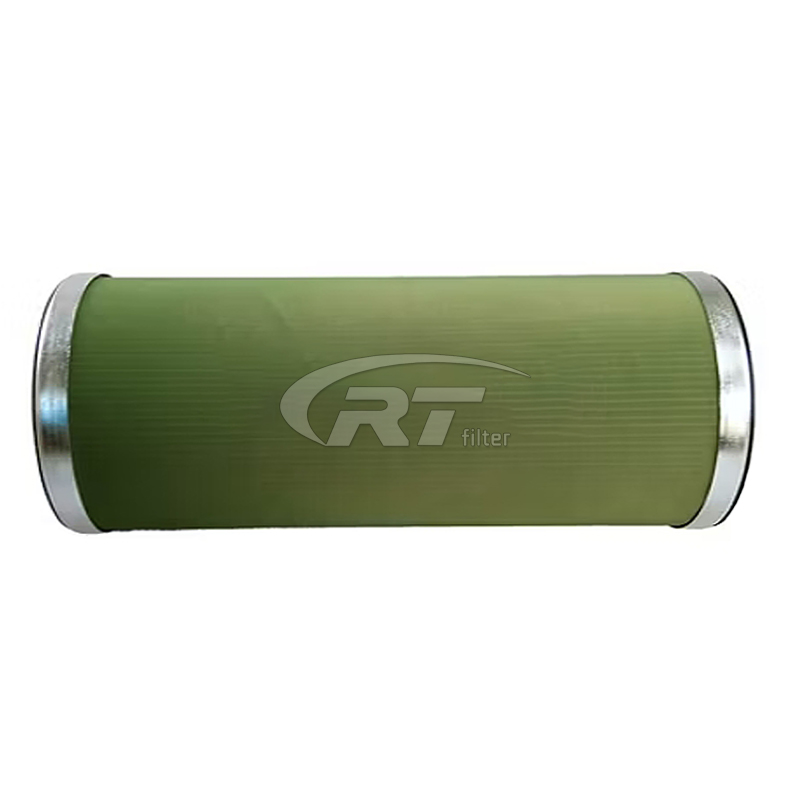

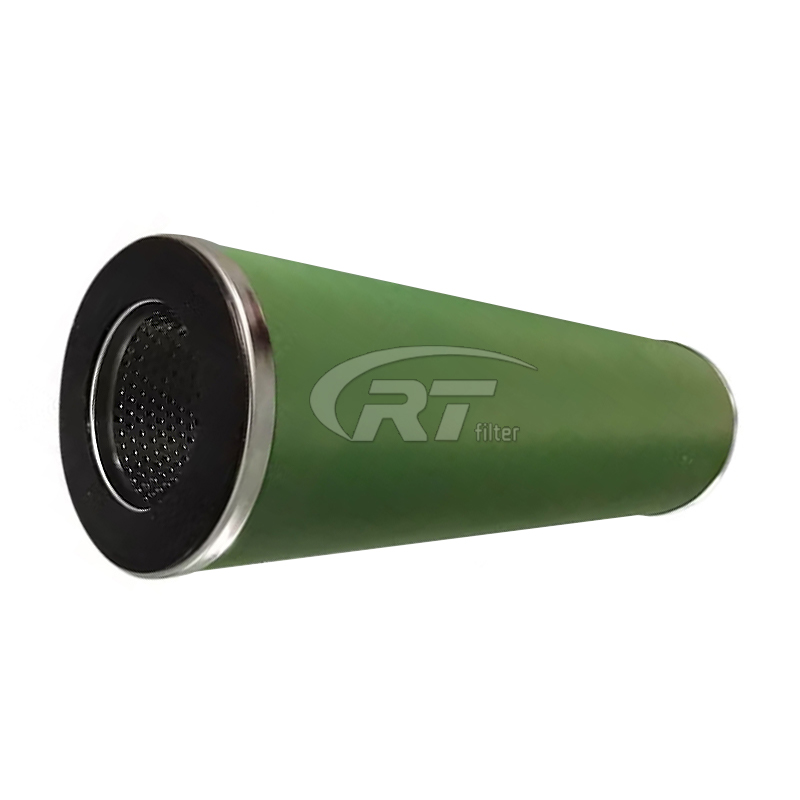

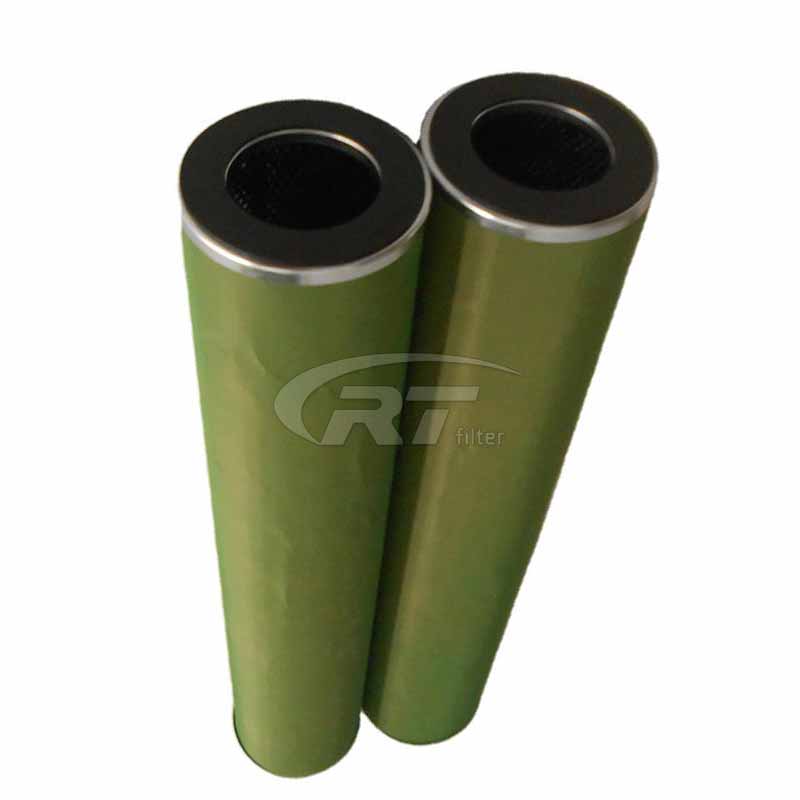

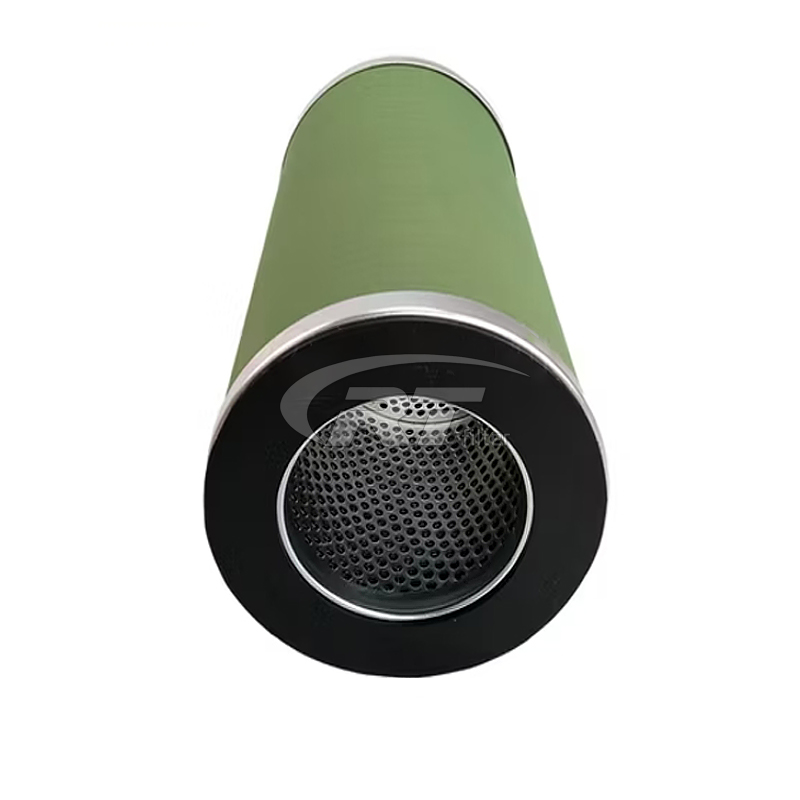

Facet ST643FF-5 Oil and Gas Separator Cartridge

Brand: PartnerFilter

Model: ST643FF-5 separator cartridge

Type: oil separator filter

Material: Teflon

Length: 43 inches

Outside Diameter: 6 inches

Inside Diameter: 3.5 inches

Flow direction: Outside To Inside

Center Tube: Corrosion Resistant Steel

Cleanable And Reusable: Yes

Maximum Operating Temperature: 240°F

ST643FF-5 oil separator cartridge for the oil or fluid operationit is essential that they are free from particulate contamination and free water.If the fluid does not meet the required cleanliness standardsfouling and corrosion of the equipment downstream may occurleading to expensive maintenance costs and reduced component life.A separator is a device for separating immiscible liquids or liquids from a gas stream.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

PartnerFilter makes the replacement of ST643FF-5 separator cartridge,which is cleanable and reusable separator cartridge of the highest quality in a variety of dimensional configurations.The material is Teflon,coated screen is wrapped around a treated,perforated metal shell,lock-seam folded and secured by metal clips, then adhesive bonded to gasketed metal end caps.The screen is Teflon coated for more effective water repelling characteristics assuring long,trouble-free service.


ST643FF-5 Separator Features:

1. Cleanable and reusable

2. Superior water barrier

3. Recommended maximum operating temperature: 240°F

4. pH range from 5 to 9

5. Designed for balanced flow through cartridge

6. Flow direction: Outside to inside


Particle Filtration Curve:

Facet ST643FF-5 separator cartridge for the oil or fluid operationit is essential that they are free from particulate contamination and free water.If the fluid does not meet the required cleanliness standardsfouling and corrosion of the equipment downstream may occurleading to expensive maintenance costs and reduced component life. Separator can improve the cleanliness of fuel or other fluids, ensure quality requirements, and ensure the long-term, efficient and safe operation of industrial equipment.

.....Facet ST643FF-5 Oil and Gas Separator Cartridge


Whole Structure Material:

• Teflon-coated screens

• Treated metal parts provide protection against corrosion

• Buna-N washers

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Membrane Material:

Our Manufactured ST643FF-5 oil separator uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

...Facet ST643FF-5 Oil and Gas Separator Cartridge


PartnerFilter also offers a full range of coalescer and separators:

Parker & Velcon

PECO & Facet

Faudi

 Pall

Other types are available on request


Related Specification Filters

Teflon material filters:

ST318FA-5 ST324FA-5 ST412FC-5 ST415FB-5 ST417FB-5 ST422FC-5
ST424FB-5 ST430FB-5 ST432FC-5 ST436FB-5 ST609FB-5 ST609FF-5
ST611FD-5 ST612FB-5 ST614FD-5 ST616FD-5 ST618FB-5 ST622FD-5
ST624FB-5 ST624FE-5 ST624FF-5 ST630FB-5 ST630FD-5 ST630FE-5
ST630FF-5 ST633FB-5 ST633FD-5 ST636FB-5 ST636FD-5 ST636FE-5
ST636FF-5 ST638FD-5 ST640FD-5 ST640FE-5 ST640FE-5 ST640FF-5
ST643FB-5 ST643FD-5 ST643FF-5 ST644FB-5 ST644FD-5 ST644FE-5
ST644FF-5 ST648FD-5 ST644FD-5 ST644FE-5 ST648FF-5 ST656FB-5

Synthetic material filters:

SS318FA-5 SS324FA-5 SS412FC-5 SS415FB-5 SS417FB-5 SS422FC-5
SS424FB-5 SS430FB-5 SS432FC-5 SS436FB-5 SS609FB-5 SS609FF-5
SS611FD-5 SS612FB-5 SS614FD-5 SS616FD-5 SS618FB-5 SS622FD-5
SS624FB-5 SS624FE-5 SS624FF-5 SS629FD-5 SS630FB-5 SS630FD-5
SS630FE-5 SS630FF-5 SS633FB-5 SS633FD-5 SS636FB-5 SS636FD-5
SS636FE-5 SS636FF-5 SS638FD-5 SS640FD-5 SS640FE-5 SS640FF-5
SS643FB-5 SS643FD-5 SS643FF-5 SS644FB-5 SS644FD-5 SS644FE-5
SS644FF-5 SS648FD-5 SS648FF-5 SS656FB-5 SS656FF-5 SS656FE-5
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
