FG-230-7 Facet fuel monitoring instrument cartridge filter

Prev: 4900155201-LE9019 For Mann Oil Mist Separation Filter Next: I-628MMTB Replace Parker Velcon Filter Coalescer Cartridge

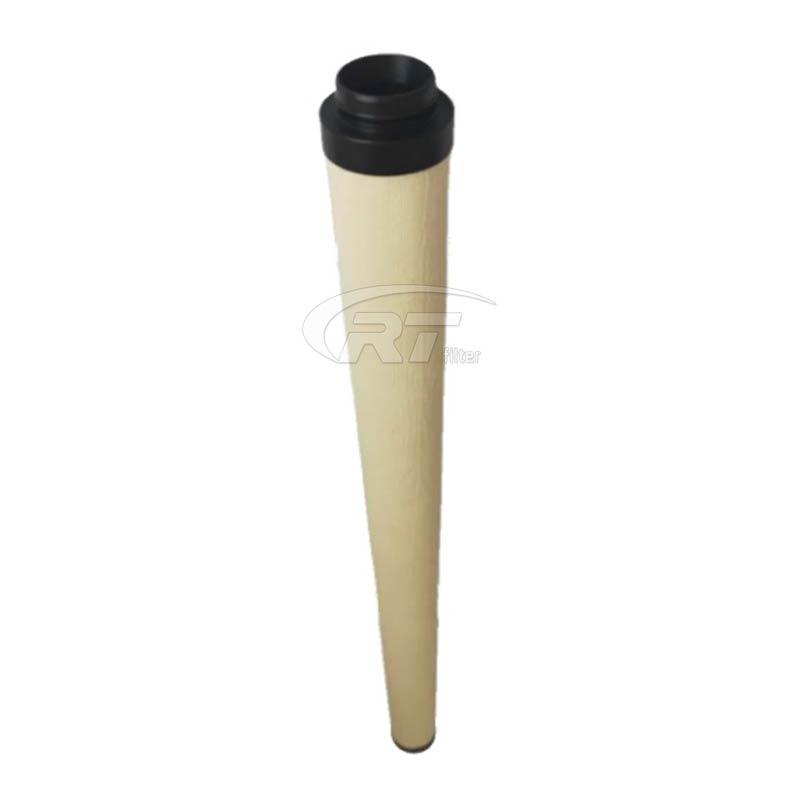

FG-230-7 Facet fuel monitoring instrument cartridge filter

Brand:PartnerFilter

Model: FG-230-7

Type: Aviation Fuel Monitoring Instrument Cartridge Filter

Size: Standard

Weight (KG): 1

Temperature Range: -45ºC~100ºC

Effect: Fuel Cleaning And Filtering

Series: FG-210-7,FG-215-7,FG-220-7,FG-225-7,FG-230-7 more

FG-230-7 facet aviation fuel filter is used to absorbs atomized and emulsified water while removing ultrafine solids And in case of local blockage, turn off the fuel flow in the system Made from various absorbent media, the instrument obtains clean and dry fuel, thereby protecting our instrument.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

FG-230-7 PECO facet aviation fuel filter is used to absorbs atomized and emulsified water while removing ultra-fine solids. And shut down the fuel flow in the system when it is partially blocked. Made from a variety of water-absorbing media, the instrument obtains clean, dry fuel, thereby protecting our instrument.


Material Characteristics:

• Normal operating range -45ºC to 100ºC temperature.

• Structurally able to withstand at least 174 psi(12 kg/cm²).

• All multiple absorbent media are wrapped in protective storage materials for balanced flow and structural strength.

• A new conductive end cap with anti-static properties greatly reduces the possibility of static emissions during refueling.

• The end cover is made of injection-molded glass filled nylon with excellent performance in terms of strength and easy maintenance.

• The designed flow rate is the size of the fluid flow from the outside to the inside at a speed of 1 gallon (3.79 L) per inch long.

• Our manufactured FG-230-7 aviation fuel filter main function of the is to increase solid holding, remove water and close protection.

• Made from a variety of absorbent media with a fine filter layer wrapped around a molded center tube to create multiple layers of media.

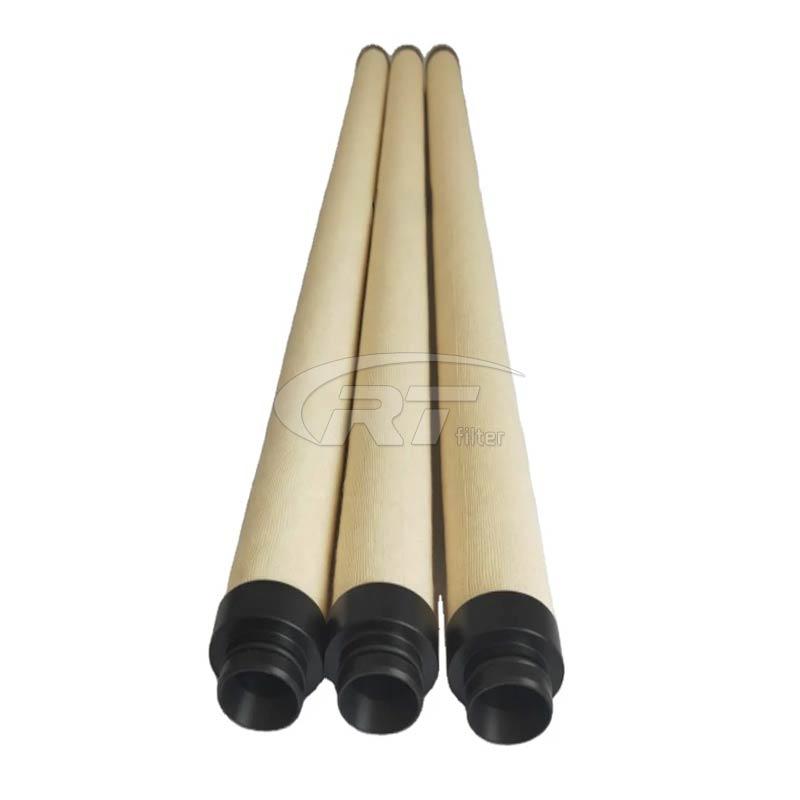

FG-230-7 Facet fuel monitoring instrument cartridge filter


Preponderance:

We make FG-230-7 aviation fuel filter structure adopts a straight-through large flow design, with a large filtration area and processing capacity. It can quickly process a large amount of liquid, quickly remove suspended particles, pollutants and other impurities, and ensure the quality and purity of the liquid. Prevent blockages and damage to pipes, equipment and systems. It has the characteristics of pressure resistance and wear resistance, and is suitable for harsh working environments with high temperature and high pressure.

• Long service life and large pollutant capacity.

• The material uses a glass fiber layer, which has a particularly good coalescence effect.

• The multi-layer filter paper structure has excellent filtration cleanliness and high filtration accuracy.

...FG-230-7 Facet fuel monitoring instrument cartridge filter


Test Standards:

Before delivery,Our manufactured FG-230-7 aviation fuel filter  will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

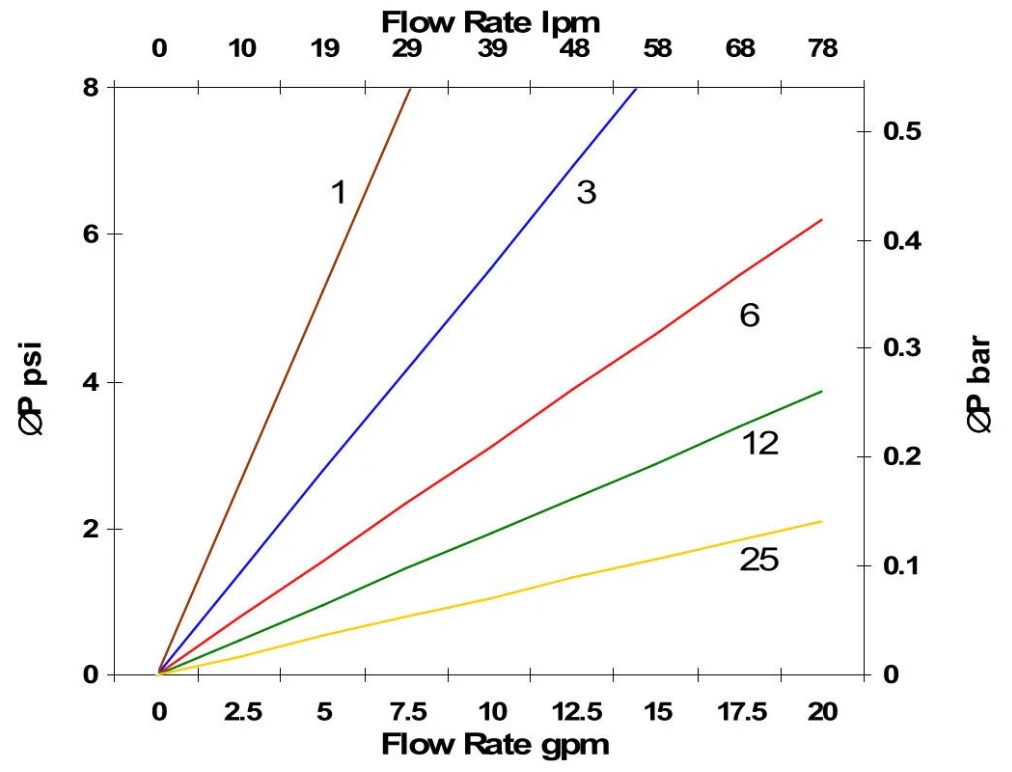

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing



Related Specification Filters

We corporation are excellent FG-230-7 cartridge filter manufacturers.

Our manufactured FG-230-7 aviation fuel filters are guaranteed to meet or exceed OEM filter requirements

FG-230-6 FG-230-6 FG-230-4 FG-210-7
FG-215-7 FG-220-7 FG-225-7 FG-230-7
CDF-210P CDF-230N CDF-215P
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
