11427474 Compair Oil Air Separation Filter Element

Prev: 23566938 Ingersoll Rand Screw Air Compressor Oil and Gas Separator Next: 1625-7754-00 Atlas Copco Air Oil Separation Filter Cartridge

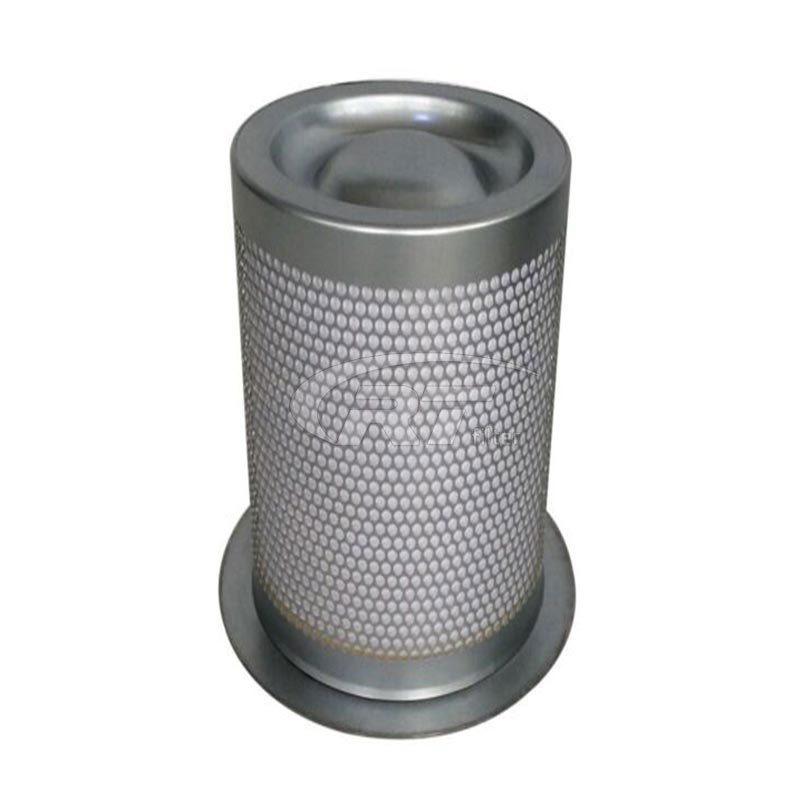

11427474 Compair Oil Air Separation Filter Element

Model:11427474

Length: 20.31 inches

Outer Diameter: 15.67 inches

Package Weight: 24.3Kg

Seal: Viton

Filter material: Fiberglass

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Main Application: Compair L200-L250

Series: 10882574, 11427274, 11427474, 98262/194 more

11427474 is mainly installed on the Compair screw air compressor for oil and gas separation.It is an air compressor filter element produced and designed with imported filter materials.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

11427474 compair oil separation filter element oil separation is mainly installed on the Compair screw air compressor for oil and gas separation.It is an air compressor filter element produced and designed with imported filter materials. The 11427474 oil air separation element is a key component that determines the compressed air quality of the air compressor.High quality oil air separation elements can not only ensure the high efficiency operation of the compressor,but also the life of the filter element can reach thousands of hours.

....11427474 Compair Oil Air Separation Filter Element



More Related Filter:

11380674

11381974

10525274

11427274

11516974

06296777

29504376

11323374

98262-207

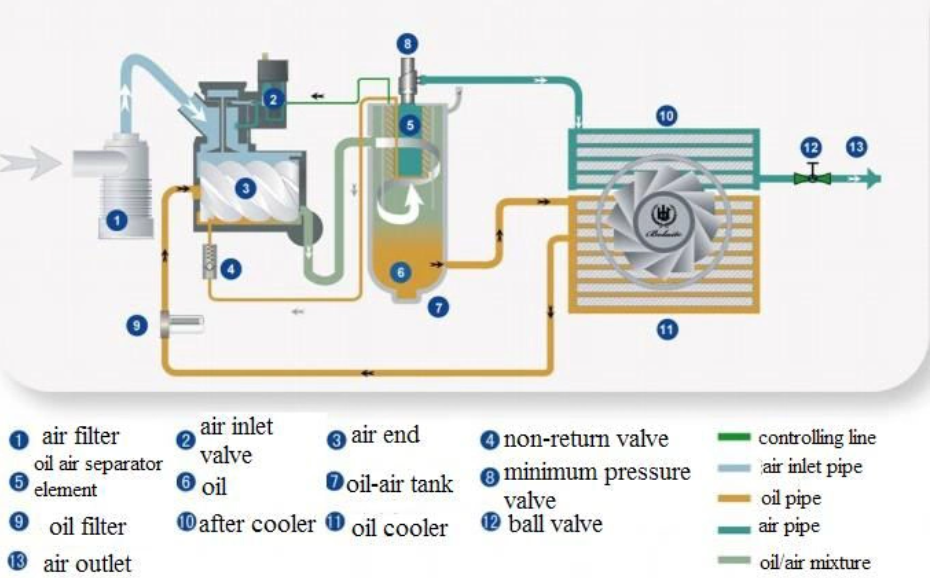

Structural diagram:

The 11427474 oil air separation filter element is a key component that determines the compressed air quality of the air compressor.A good quality oil air separation element can not only ensure the working efficiency of the compressor,but also the life of the filter element can reach thousands of hours.PartnerFilter can customize the filter element for you according to the size,picture or drawing provided.

11427474 Compair Oil Air Separation Filter Element

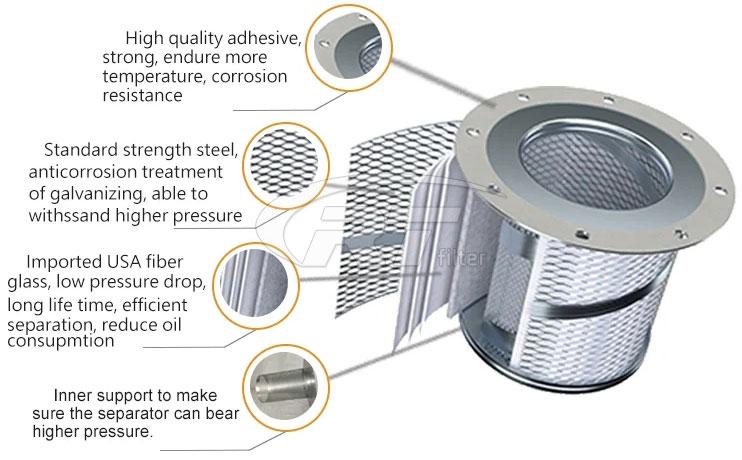

Quality advantage:

The inlet of the oil return pipe in the recess returns to the lubricating oil system of the machine head,so that the compressor discharges more pure and oil-free compressed air.The solid particles in the compressed air stay in the filter layer when they pass through the oil separator core,which causes the pressure difference (resistance) of the oil separator core to increase continuously.As the service time of the oil separator core increases,when the pressure difference of the oil separator core reaches 0.08 to 0.1Mpa, the filter element must be replaced,otherwise the operating cost (power consumption) of the compressor will be increased.

....11427474 Compair Oil Air Separation Filter Element



Features:

• Accuracy:can be controlled below 0.1um

• Filter element form:Pleated filter element with 98% filtration efficiency

• Filter material:HV or Lydall glass fiber

• Service life:3500-5200h

• Initial pressure difference:≤0.02Mpa


Application:

11427474 is used in air compressors to extract oil droplets in the compressed air to make the compressed air cleaner. After the oil is extracted, it can continue to be recycled.


PartnerFilter also offers a full range of replacement filter elements:

ATLAS COPCO Filters

INGERSOLL RAND Filters

SULLAIR Filters

COMPAIR Filters

FUSHENG Filters

LIU-TECH Filters

MANN Filters

Hitachi Filters

Kaeser Filters

Other types are available on request


Related Specification Filters
11207674 04819974 10533574 100001611 04819974 13010174
11380674 11381974 10525274 98262-207 29504376 11323374
04425274 10525274 11516974 04425274 10882574 11516774
04425274 11427274 11516974 06296777 04425274 11427474
98262/163 C11158/1014 98262/220 98262/194 98262/170 98262/220
98262/162 C11158/1014 98262/219 98262/26 29504356 C11158/1390
98262/219 98262/78 98262/192 98262/219 98262/173 06296777
98262/192 98262/219 98262/174 50273 0941/1 59177
50273 56457 70539 50332 57562 59180
52438 57562 98262/220 59180 100009925 98262/220
100007587 100006374 04425274 100005424 98262/198 98262/108
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
