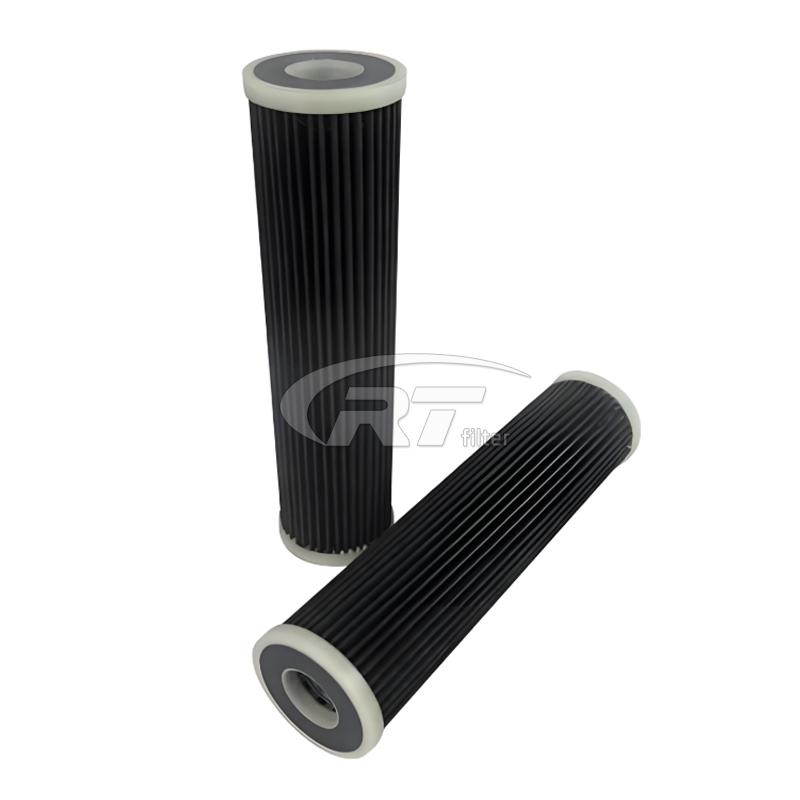

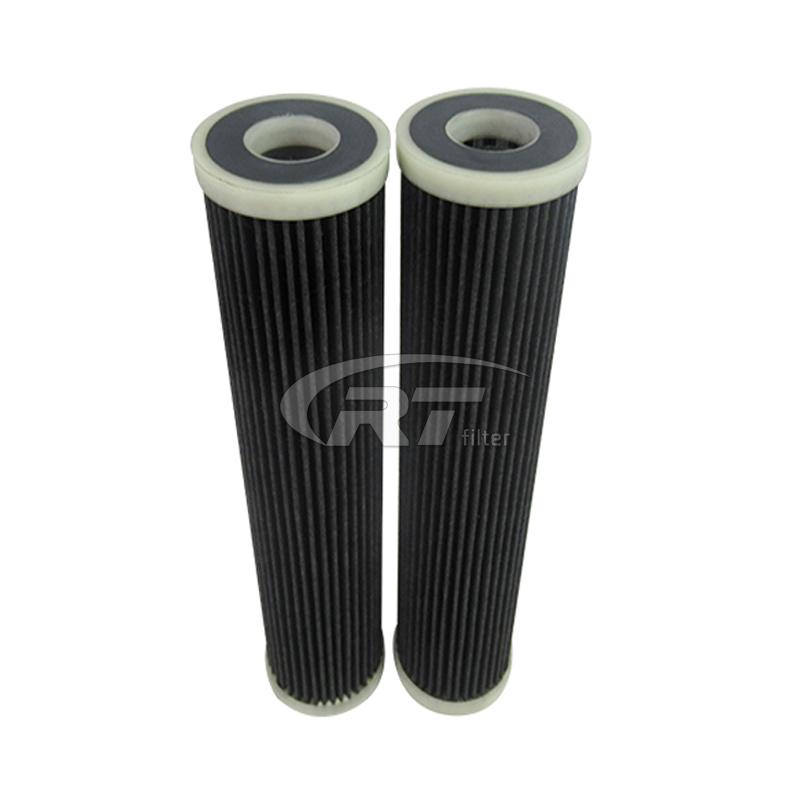

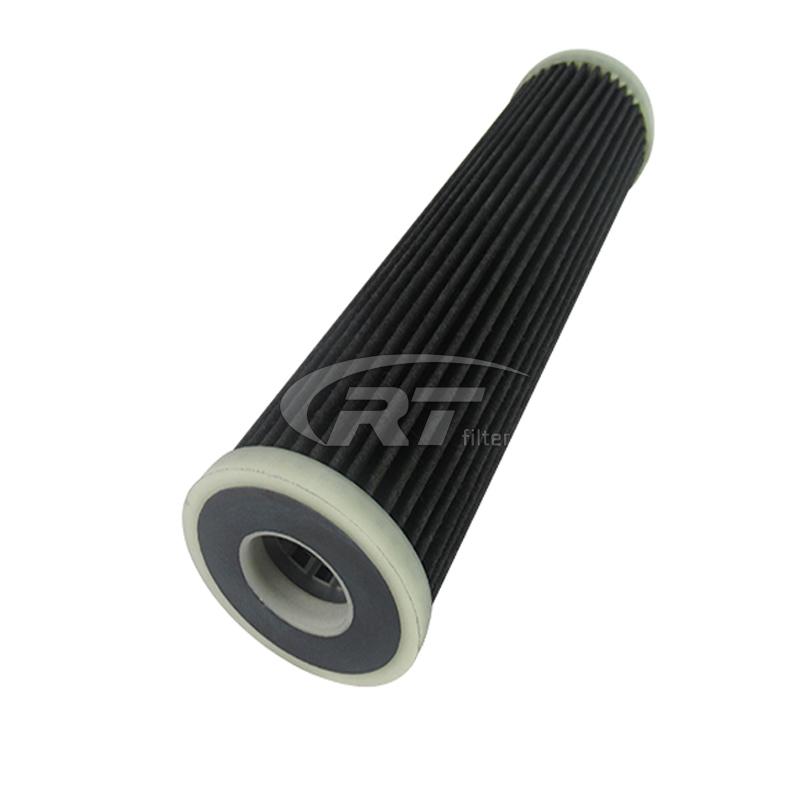

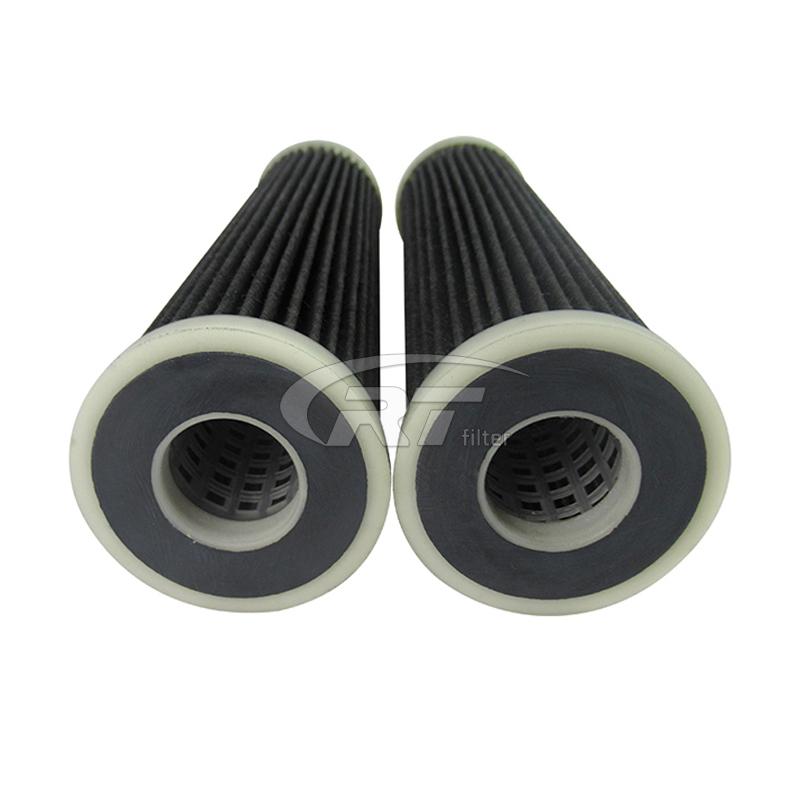

1063-15-BA-K233 active carbon water filter is used to remove impurities, particulate matter, and harmful components in water. It adopts a wavy structure with a unique pleated geometry, an inside-out flip structure, a wide flow channel, a large dirt holding capacity, a low pressure difference, a folded form, and a larger filtration area. It is resistant to acids, alkalis, and other organic solvents. 1063-15-BA-K233 water filter has the characteristics of high precision, high efficiency, high flow, deep filtration, and a long service life.
Technical Data: • Filter accuracy range: 1~25μm • Nominal filter performance: ≥99.9% • Applicable temperature range: 1℃~80℃ • Maximum bypass pressure: 29psi • Max pressure drop: 3.4bar • Max collapse rating: 60psid • Dirty capacity: ≥150g • Life cycle: 4500~6000h • Initial saturation pressure drop: ≤0.02MPa • Flow velocity: 50m³/h-200m³/h(Actual working conditions)
Filter Material: 1063-15-BA-K233 water filter is made of deep fine polypropylene or glass fiber membrane as filter material, providing ultra-large filtration area, ensuring stable performance under high pressure difference environment, and intercepting particle pollutants as small as 1 microns. • Anti-mildew and antibacterial: corrosion-resistant, resistant to most acids, alkalis and organic solvents. • Dimensional stability: low thermal expansion coefficient, small deformation under high temperature or high humidity changes. • Microporous structure: the fibers are interwoven to form uniform pores, with low resistance, which can intercept fine particles.
Application Scenario: ✅ Filtration of power plant condensate ✅ Paint, coating, petrochemical ✅ RO security filtration, seawater desalination pretreatment ✅ Filtration of APIs, solvents and water in the biopharmaceutical industry ✅ Filtration of bottled water, sugar solution, edible oil, juice, soft drinks and milk
FAQ: Q: Does it support non-standard customization? A: The filtration accuracy, interface size and shell material can be customized.
Q: 1063-15-BA-K233 activated carbon water filter replacement cycle? A: Under normal working conditions, it is recommended to be 6-12 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the 1063-15-BA-K233 water filter element? A: Usually 3 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
|
