316L Medical Treatment Stainless Steel Wire Mesh Polymer Pleated Filter

Prev: Stainless Steel Mesh Polymer Melt Return Suction Candle Oil Filter Next: SS 304 Stainless Steel Pleated Hydraulic Oil Fuel Gas Impurity Filter

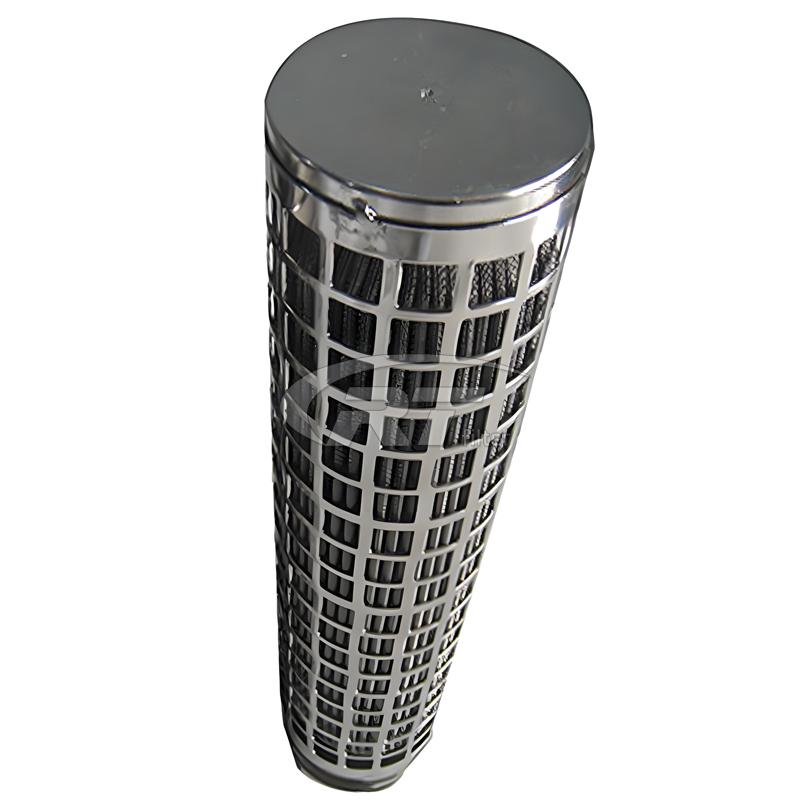

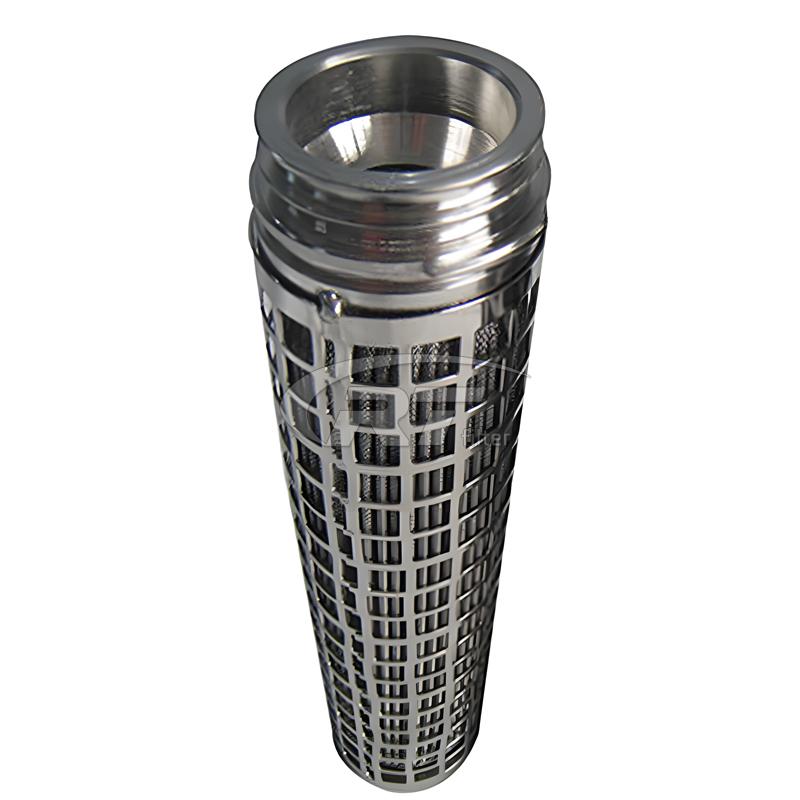

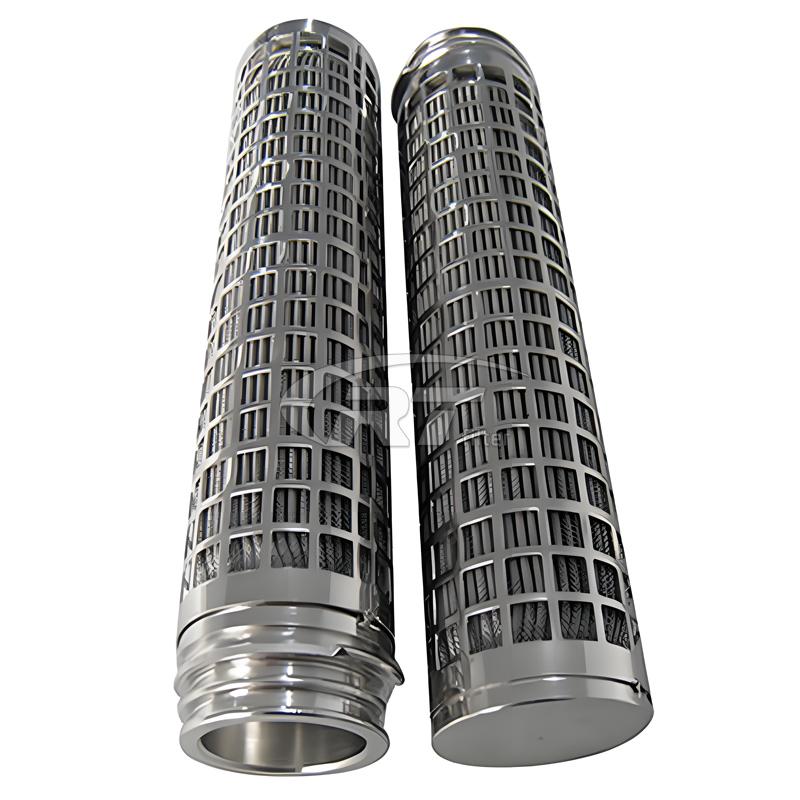

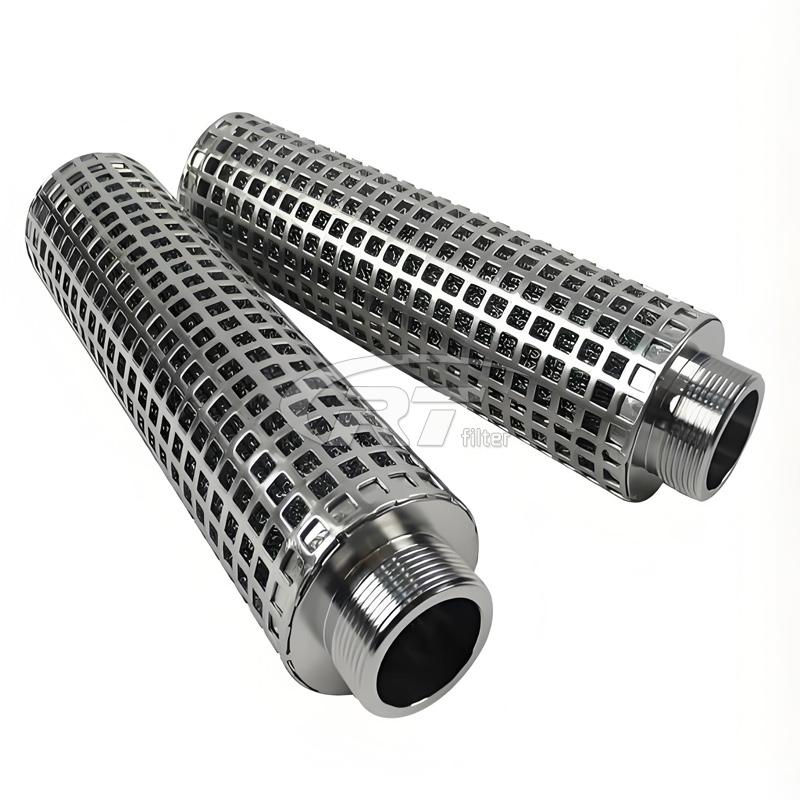

316L Medical Treatment Stainless Steel Wire Mesh Polymer Pleated Filter

Device: 316L medical stainless steel mesh polymer pleated filter

Device Type: Stainless steel mesh pleated polymer filter

Filter Media: Pleated stainless steel wire mesh

Long: 5", 10", 20", 30", 40", 50"

Pore Diameter: 0.45", 0.5", 2.0", 3.0", 3.5", 5.0"

Fire-resistant: Yes

Cleanable And Reusable: Yes

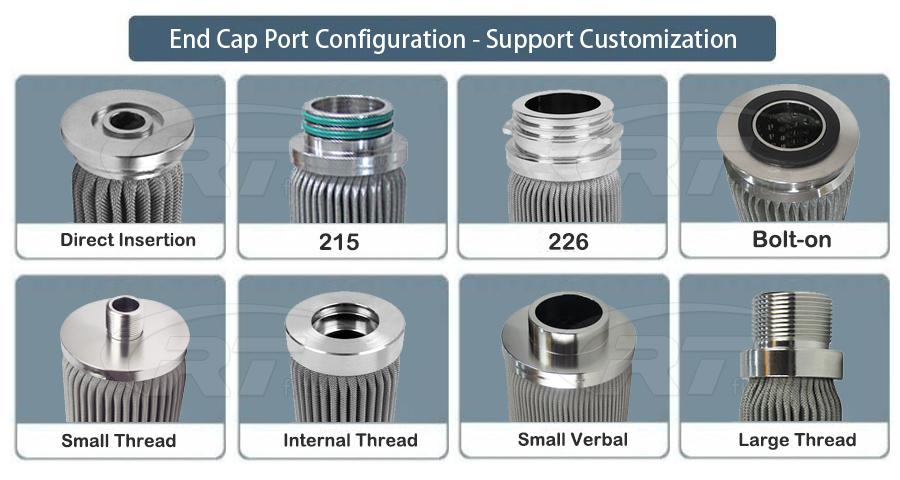

Terminal Cap: 316L stainless steel

Essential Materials: SS 304 316, stainless steel wire mesh

Medical treatment stainless steel wire mesh polymer pleated filter adopts 304/316L stainless steel wire mesh and high temperature resistant polymer composite pleated structure, combined with multi-layer filter media, which can effectively intercept micron-sized particulate pollutants while meeting the requirements of stable operation in high temperature and high pressure environments.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Medical stainless steel wire mesh polymer pleated filter is widely used in pharmaceutical purified water systems, medical device sterilization filtration, bioreactor gas purification, and other scenarios. They are core components for ensuring the cleanliness of medical fluids. They deeply intercept micron-sized particles with a retention rate of up to 99.99%, meeting GMP cleanliness requirements.


Technical Data:

• Filtration Fineness: 0.2μm–100μm

• Working Pressure: ≤3.5MPa

• Filtration Efficiency: 99.99% (Compliant with ISO 13485)

• Temperature Range: -20°C–150°C (Short-term 180°C steam sterilization resistant)

• Flow Rate: 1–5m³/h (adjustable depending on specifications)

• Material: 304/316L stainless steel mesh + PTFE polymer coating

• Structure: Pleated multi-layer filter element, supports backwash regeneration


Filter Material:

We are a manufacturer of high-precision stainless steel wire mesh polymer pleated filters. We can customize dimensions, including diameter and length, to meet specific requirements.

• Stainless Steel Wire Mesh: 304/316L stainless steel woven mesh, corrosion-resistant and heat-resistant, meeting medical-grade nickel-free standards.

• Polymer Coating: PTFE or PFA enhances hydrophilicity and reduces surface tension, preventing particle adsorption.

• Multi-layer Composite Media: The outer coarse filter layer intercepts large particles, while the inner microporous layer achieves deep filtration.

316L Medical Treatment Stainless Steel Wire Mesh Polymer Pleated Filter


Applications:

✅ Solvent Recovery: Micron-level filtration in active ingredient recovery systems

✅ Breathing Gas Purification: Bacterial Filtration in Anesthesia Machines and Ventilators

✅ Sterilization Equipment: Pre-filtration of Steam and Ethylene Oxide Gases

✅ Hemodialysis: Particulate Control in Dialysate

✅ Air Sterilization: HEPA Pre-stage Protection in Cleanrooms


FAQ:

Q: Does it support non-standard customization?

A: The filtration accuracy, interface size and shell material can be customized.


Q: Medical treatment stainless steel wire mesh polymer pleated filter replacement cycle?

A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.


Q: What is the shelf life of the Medical treatment stainless steel wire mesh polymer pleated filter?

A: Usually 5 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
