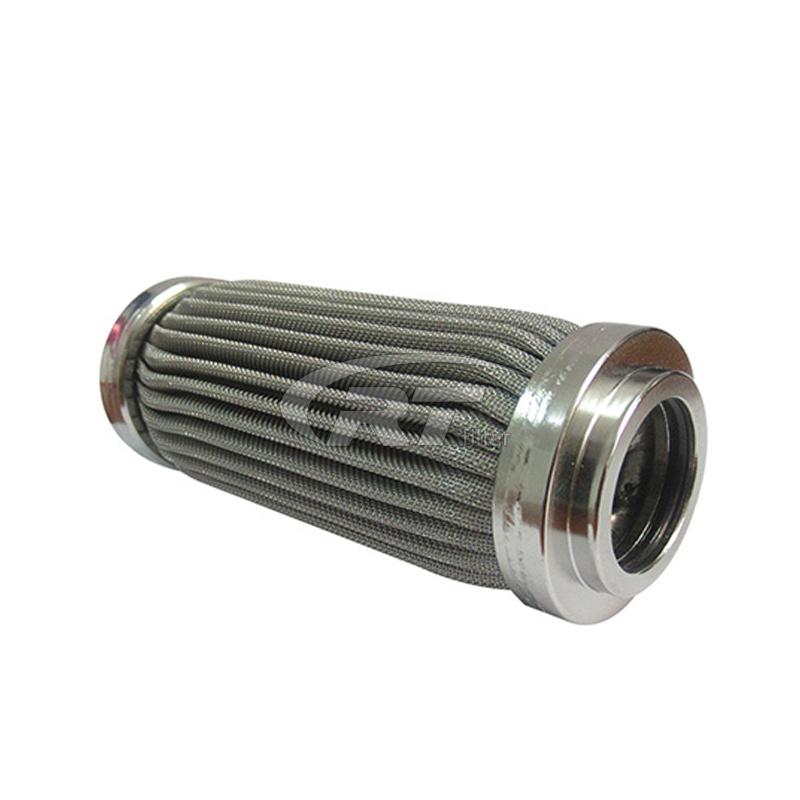

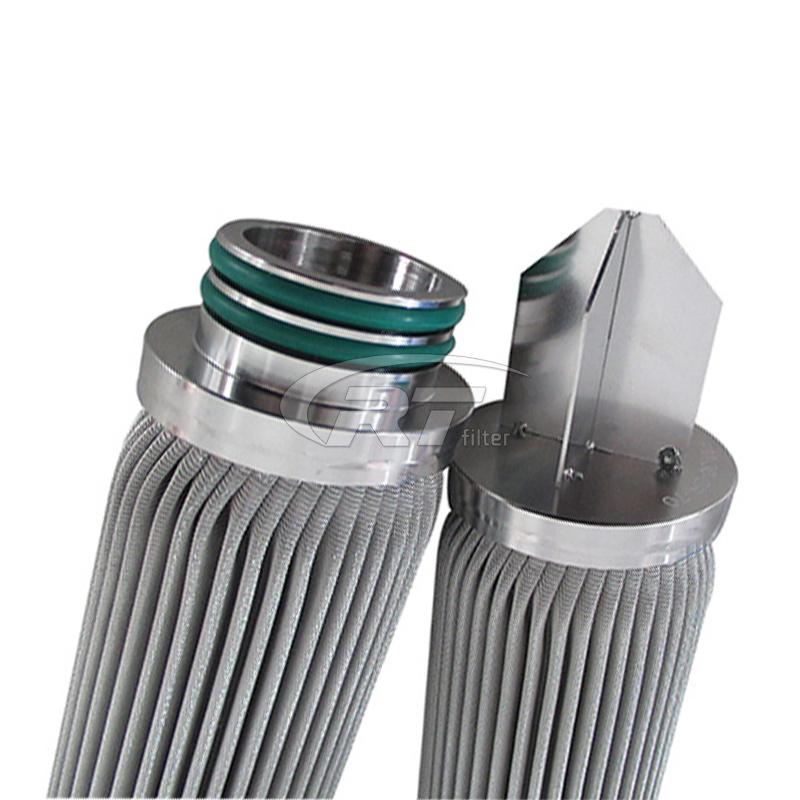

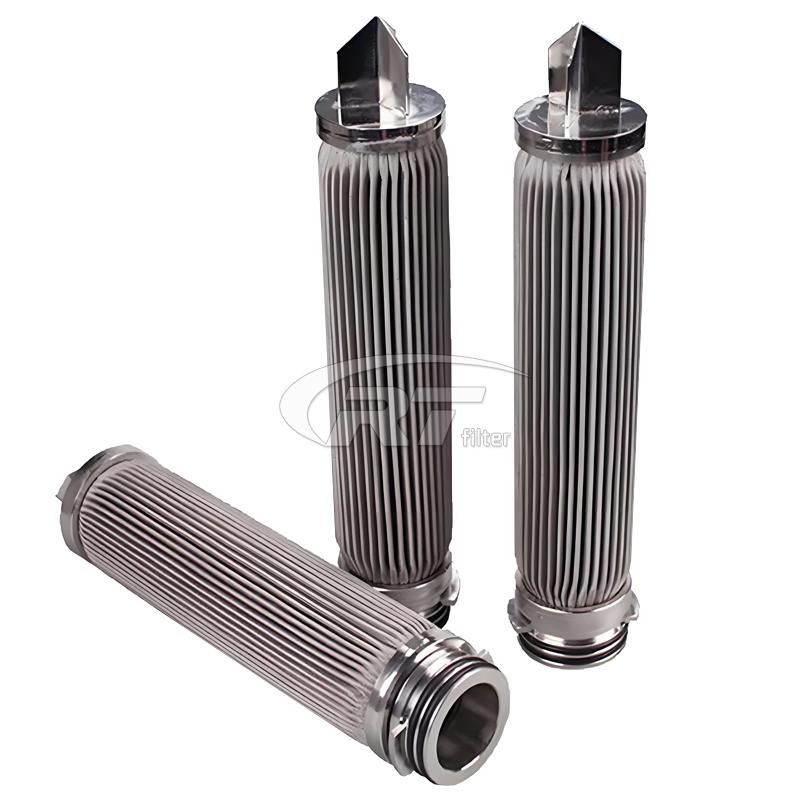

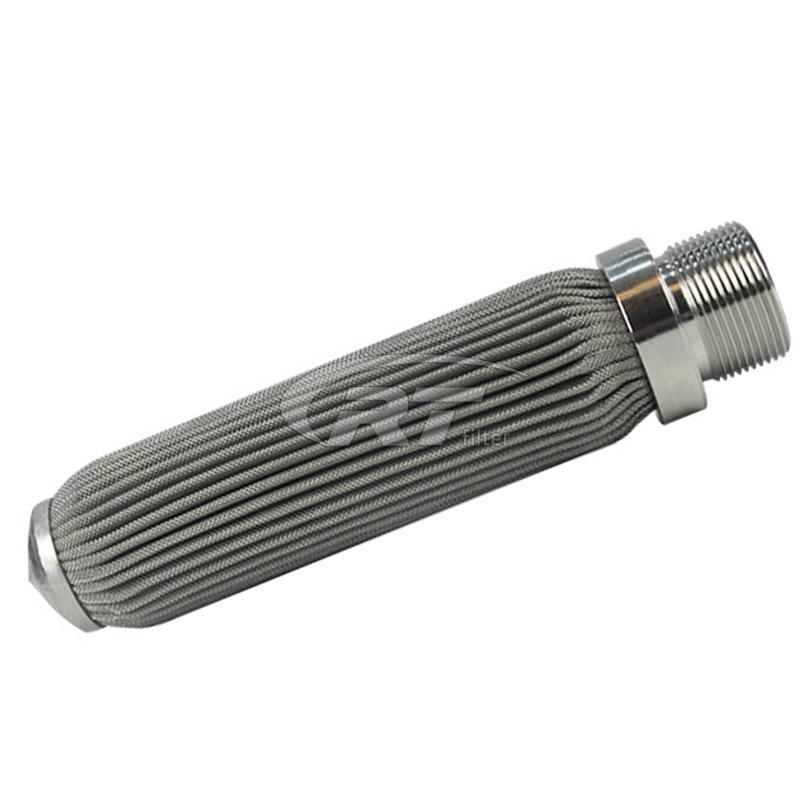

The core of the stainless steel fold polymer melt oil fuel liquid filter adopts a 304 austenitic stainless steel shell structure, combined with a deep polymer melt filter element and a high-efficiency pleated filter layer, which can intercept particulate impurities larger than 0.5μm, colloids and water in the fuel. The candle structure design achieves high flow and low pressure drop performance, which is particularly suitable for key areas such as diesel generator sets, marine power systems, fuel boilers and industrial fuel treatment equipment.
Technical Data: • Filtration efficiency: ≥98.5% • Maximum flow rate: 85 L/min • Burst pressure: ≥3.8 MPa • Connection: M36 x 1.5 external thread • Operating temperature: -40°C to 150°C • Pollution holding capacity: 16.9-41 mg/cm² • Pressure drop control: ≤0.2 MPa @ 10 m³/h
Filter Structure: We are a manufacturer of high-precision stainless steel fold polymer melt oil fuel liquid filters. Dimensions such as tube diameter and length can be customized to meet specific needs. • Three-dimensional mesh structure: Enables deep, gradient clean filtration. • Superior corrosion resistance: Effectively resists sulfur compounds and acid corrosion in fuel. • Mechanical Properties: Spin-forming technology achieves a thin shell, lightweight and structurally strong.
Applications: ✅ Generator set fuel final filtration ✅ Cargo ship fuel cleaning ✅ Auxiliary engine fuel filtration ✅ Fuel refining and filtration ✅ Industrial boiler fuel supply

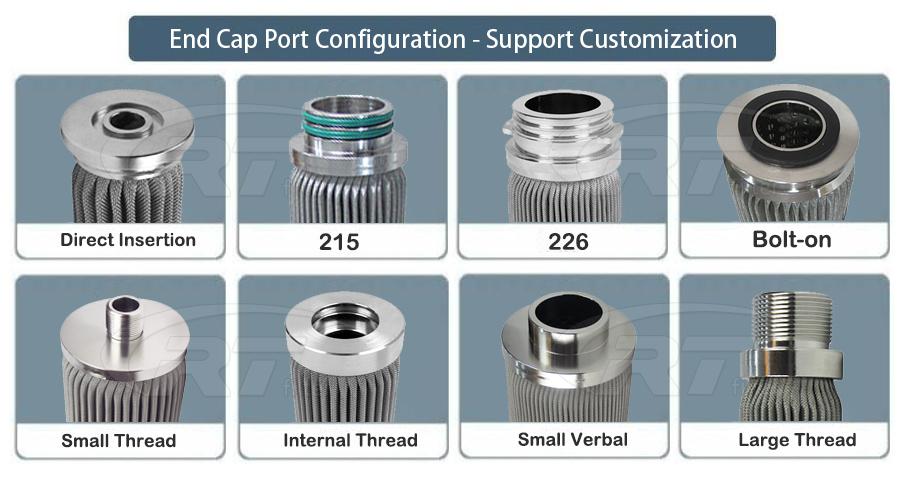

Supply Customized Interfaces: We can customize the stainless steel fold polymer melt oil fuel liquid filter. The filter interfaces we have shipped are:
FAQ: Q: Does it support non-standard customization? A: The filtration accuracy, interface size and shell material can be customized.
Q: stainless steel fold polymer melt oil fuel liquid filter replacement cycle? A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the stainless steel fold polymer melt oil fuel liquid filter? A: Usually 5 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
|
