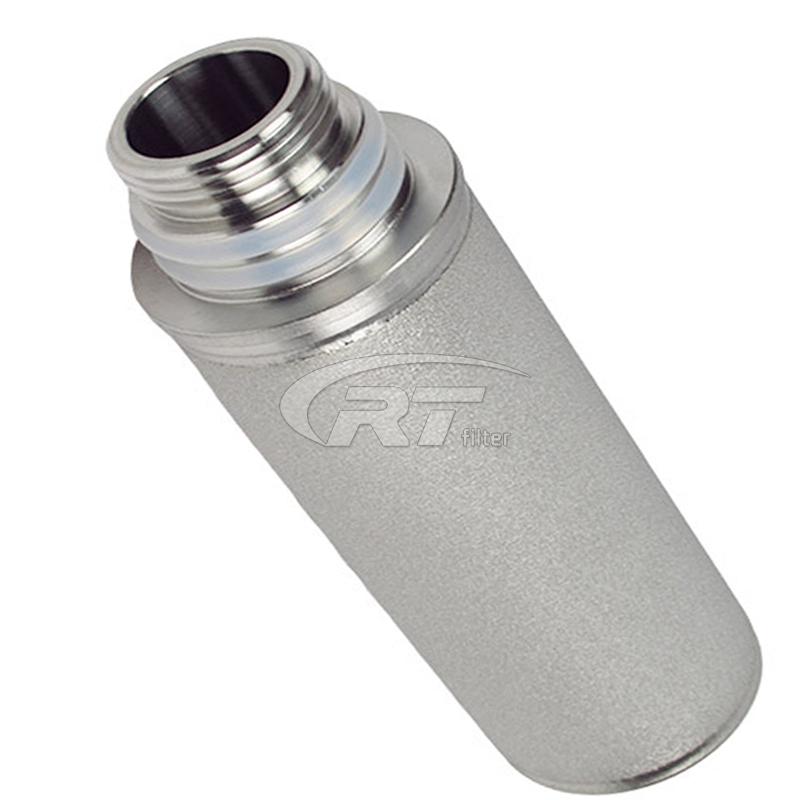

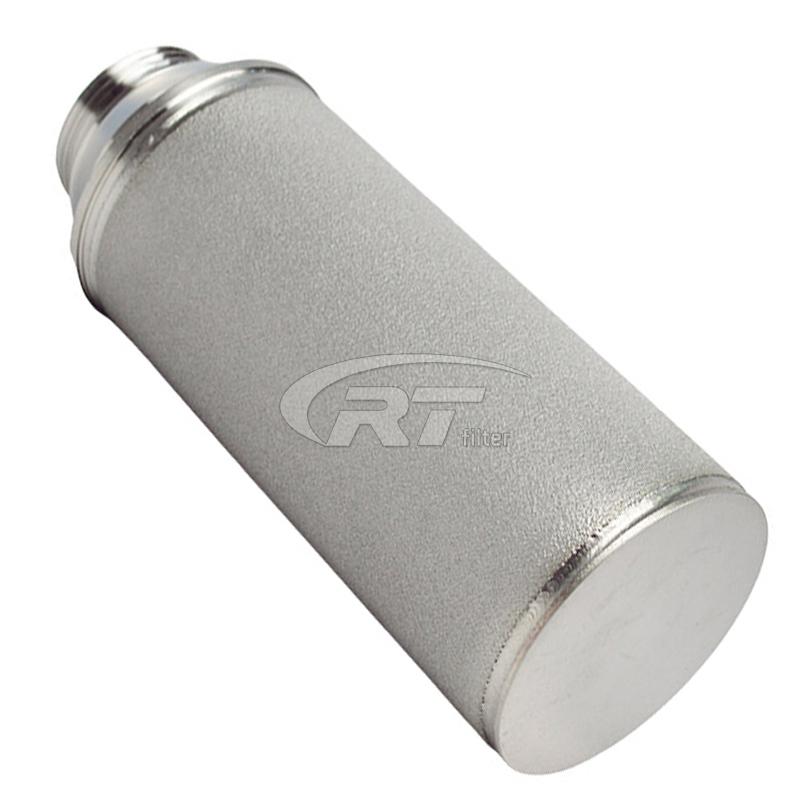

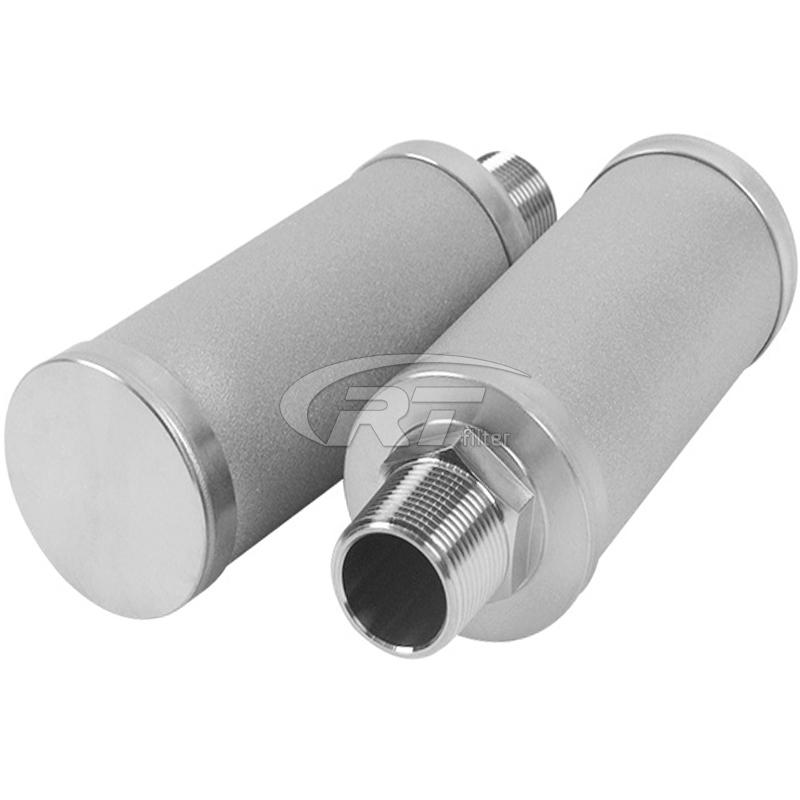

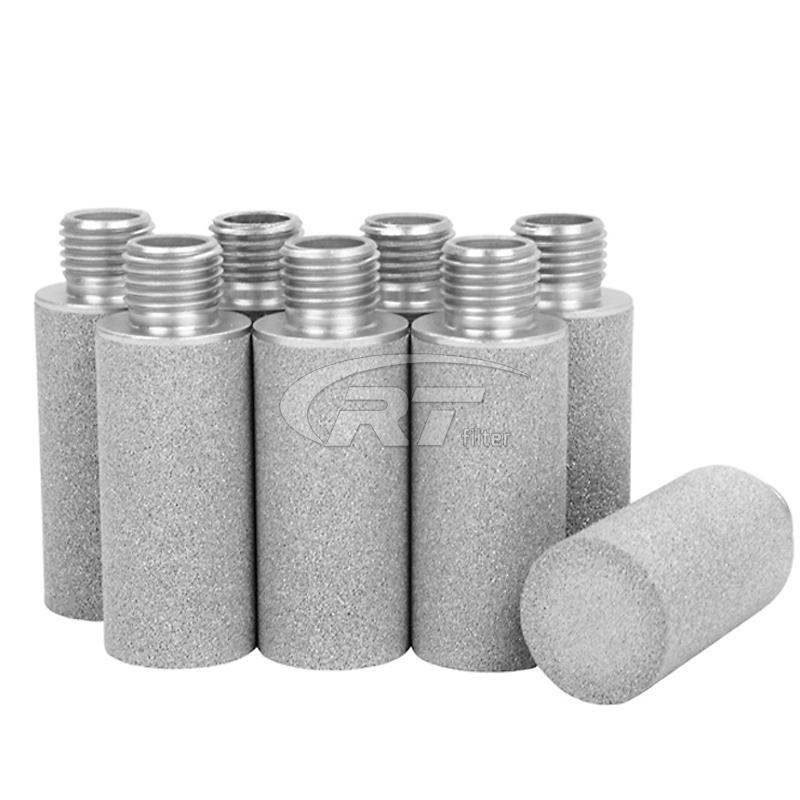

10 micron SS 304 316L titanium powder porous precision sintered filter consists of a coarse filter layer, a transition layer and a fine filter layer to achieve progressive filtration and reduce differential pressure loss. The internal pores are bent and staggered to form a deep filtration mechanism to intercept micron-sized particles. SS 316L filter uses M20/M30 standard interfaces and is compatible with automated piping systems.
Technical Data: • Filtration accuracy: 10 microns (adjustable range 5-50 microns) • Porosity: 35%-45% • Dimensions: diameter 30-80mm, length 100-1000mm • Surface treatment: polishing/sandblasting • Compressive strength: ≥2.0 MPa (supports high pressure conditions) • Material: SS 304/316L stainless steel matrix + titanium powder composite layer • Working temperature: -20℃~600℃ (titanium powder layer is resistant to high temperature oxidation)
Filter Material: We are a manufacturer of high-precision Metal filter cartridges, strictly following technical specifications and standards to ensure product quality. The diameter, length and other dimensions can be customized according to actual needs • Filtration efficiency: The retention rate of 10μm particles is ≥99.5%, in line with ISO 16890 standards. • Cleaning life: Can be repeatedly cleaned 50+ times, (verified by the washable design) • Chemical resistance: Acid and alkali resistant (pH 1-14), suitable for strong oxidizing environment.
Application scenarios: ✅ VOCs treatment ✅ Water treatment RO system ✅ Chemical carbon alkali liquid purification ✅ New energy hydrogen production equipment ✅ Food grade hydrogen dissolving rod ✅ Pharmaceutical purified water system

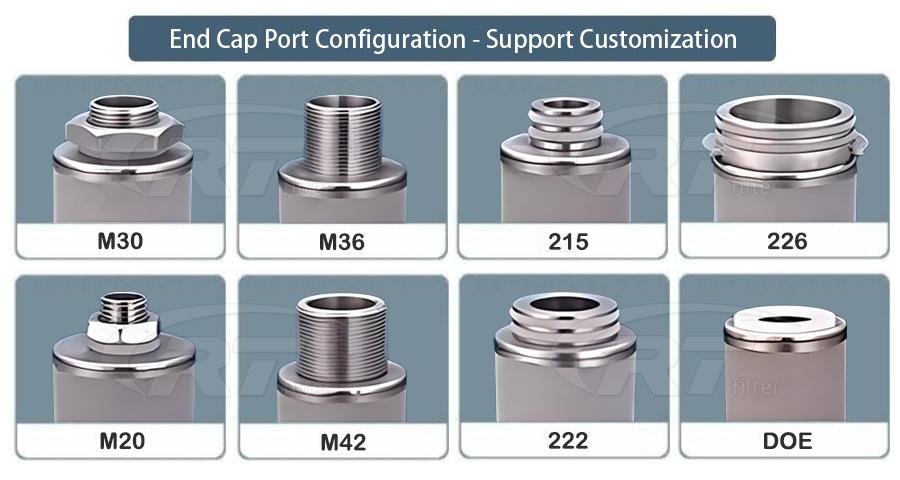

Customized Filter Interfaces: We support high-quality customized production of 10 micron SS 304 316L titanium powder porous precision sintered filter. Have shipped filter interfaces:
FAQ: Q: Does it support non-standard customization? A: The filtration accuracy, interface size and shell material can be customized.
Q: SS 304 316L porous metal filter replacement cycle? A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the SS 304 316L corrosion resistant filter? A: Usually 3 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
|
